Fractal Define R6 Gunmetal Grey Mid Tower PC Case

Fractal Design Define R6 Gunmetal, Mid Tower Computer Chassis, E-ATX/ATX/MicroATX/Mini-ITX, 3x 140mm Fans

Thumbnail 1 : Fractal Define R6 Gunmetal Grey Mid Tower PC Case Thumbnail 2 : Fractal Define R6 Gunmetal Grey Mid Tower PC Case Thumbnail 3 : Fractal Define R6 Gunmetal Grey Mid Tower PC Case Thumbnail 4 : Fractal Define R6 Gunmetal Grey Mid Tower PC Case Fractal Define R6 Gunmetal Grey Mid Tower PC Case : video thumbnail 1
Scan code: LN85054 Manufacturer code: FD-CA-DEF-R6-GY
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Fractal Define R6 Gunmetal Grey Gaming PC Case

Fractal r6

DEFINE R6 - profound innovationThe Fractal Design Define R6 is the latest and largest step in the legacy of the world-renowned Define Series, bursting with intelligently designed enthusiast features, which deliver a silent case with powerful and expansive air and liquid cooling support. The sound dampened steel panels encase a fully redesigned interior with more storage capability than ever before, and with nine fan mounts, PWM fan hub, and 420mm radiator support. With improved third generation ModuVent™ the R6 offers the most demanding hardware buff a solid foundation and flexible framework with limitless potential and the perfect platform for building the dream water-cooling setup.

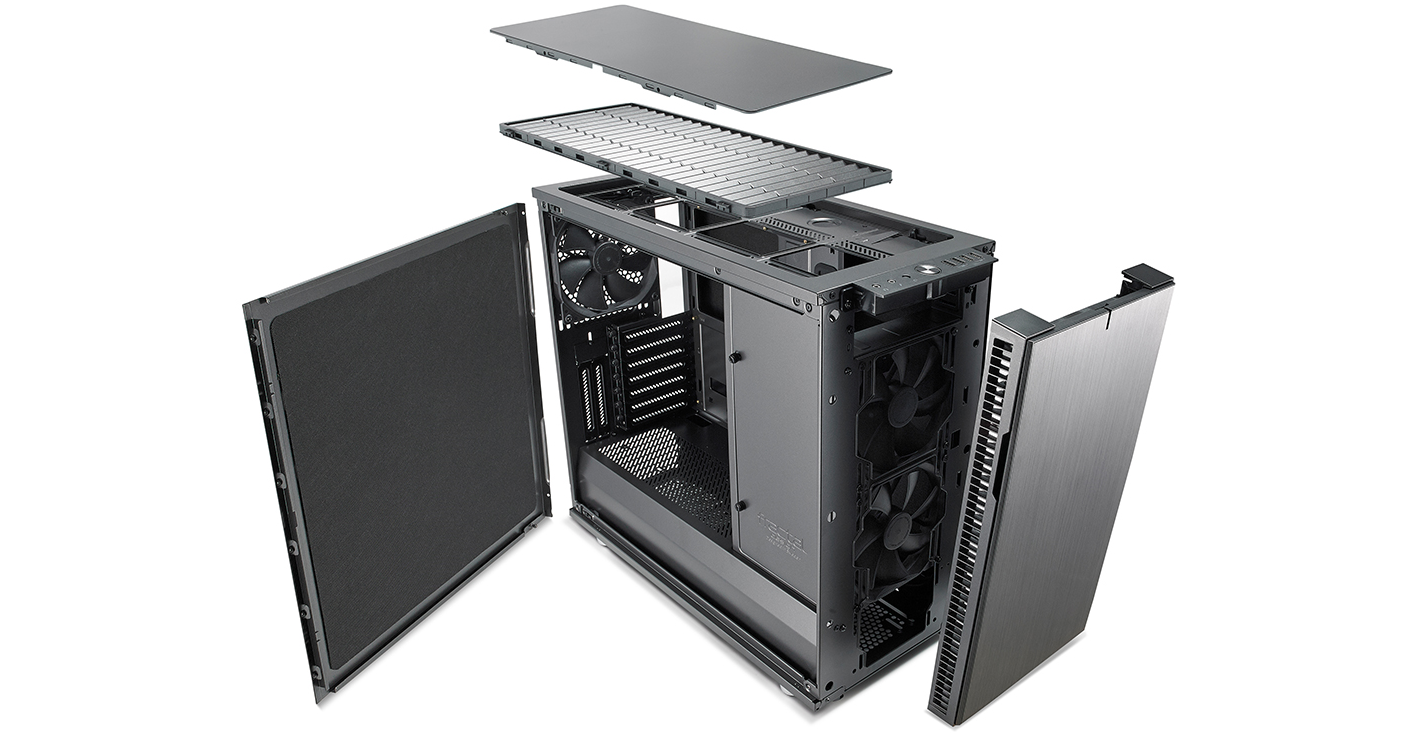

Airflow Designed Interior

Fractal R6 Airlflow

PRE-INSTALLED SILENT DYNAMIC FANS The Define R6 features three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140mm fans, ensuring crucial airflow via two intake fans and a single exhaust. With nine fan positions, the intuitive layout offers clear airflow paths. The R6 is optimally designed for silent computing with high-density industrial noise-reducing material throughout the case for maximum sound absorption, whilst not compromising on airflow and cooling capabilities on the side, top and front panels. Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base.

Customisable Storage Options


MODULAR DESIGN The modular interior includes 6 x 3.5”/2.5” HDD/SSD trays and 2 x 2.5” SSD trays that can be independently repositioned to suit components, cooling, and cable routing. With the 2.5” storage solution consisting of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud. The power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior

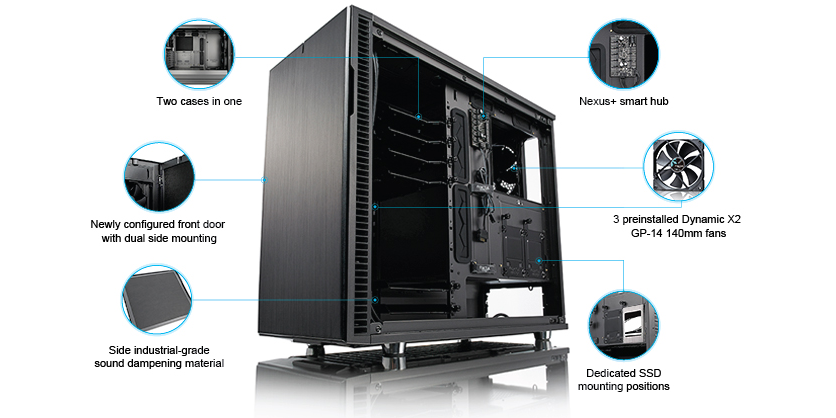

Durable and Built to Last

Fractal R6 diagram

CONSTRUCTED FOR ADAPTABILITY The Define R6 innovative design includes extensive features for delivering all-out durability, as the newly configured reversible front door with anodized aluminium cover and dual mounting system combines adaptability with sophistication. Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard. Vertical 2.5” slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately).

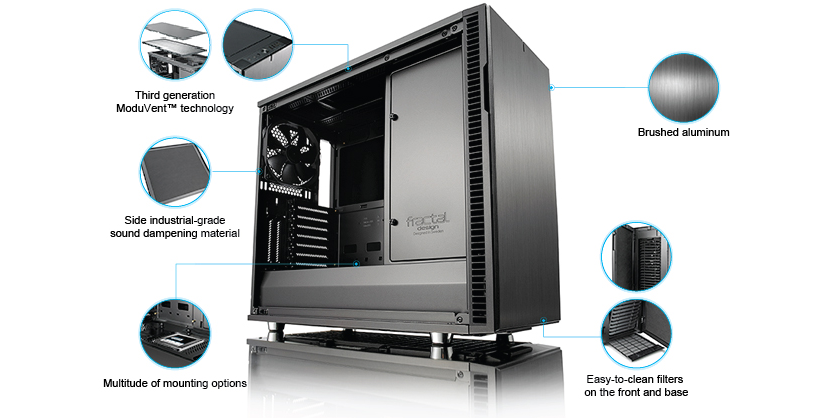

Easy PC Maintenance


ADVANTAGEOUS FEATURES FOR YOUR BUILD Define R6 makes maintenance of your PC setup simple with advantageous features, high airflow nylon filters are integrated on the front, top, and base with full PSU coverage and front access for easy-to-clean convenience. With third generation ModuVent™ technology, this gives users the choice between a soundproof steel cover and filtered multi-fan ventilation setup in the top panel.

See all the Features of the Fractal Define R6 Gaming Case

Fractal r6
Core Chassis Specifications
Case Edition Define R6
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7+2
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120/140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 300 mm
Chassis Physical Specifications
Colour Gunmetal Grey
Chassis Contruction Materials Sound-Dampened Steel
Dimensions 233 x 448 x 535 (WxHxD mm)
Weight 12.4 kg (Approx)
Please Note
Additional Information
Scan Code LN85054
Model Number FD-CA-DEF-R6-GY
GTIN 7350041085898

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Fractal Design Define R6 Gunmetal, Mid Tower Computer Chassis, E-ATX/ATX/MicroATX/Mini-ITX, 3x 140mm Fans is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from An outstanding case... you get what you pay for! This is a serious case. First of all, if you're considering buying this case, weigh up what you need it for most. If you're just looking for excellent airflow then this case is great, no question, but it's probably far bigger than you need. I mean, this thing is huge. Not so much in length or height, it's just seriously wide and actually looks a little disproportionate. If you're looking for a case that will offer plenty of room for storage/water cooling paraphernalia, then this is the case to go for. It's well built with solid materials and welds with everything, even the removable brackets, treated to an excellent quality of finish. Not a rough finish or sharp angle in sight. This comes at a cost though... it's heavy. Very heavy. If you plan on moving this about (although why would you?) then maybe you'll want to avoid this monster. Another cost is the actual cost of the thing... It's pricey. But, as with most things in life, you get what you pay for. I've seen cases about £30 - 50 less than this with pretty much the same build quality and aesthetic appeal. But they do not come with the flexibility that the R6 sports. You can really tear out all the insides and leave yourself with a huge cavernous box if you wish. This helps reduce the weight! On the subject of airflow, this case has a major pro and a bit of a flaw. If you wish air to move in from the front and out the back then the intake (front) forces the air around a 90 degree bend with the case door closed. With it open, there is no problem but then the case turns into an awful looking vented box. However, if you are using the top of the case to vent your cooling then the slightly restricted airflow shouldn't be a problem at all (unless you've got a load of SATA drives in the way). The top vent, when exposed, does ruin the slick looks a bit, but my system has never come close to running hot with 'the lid off'. The vent grille is plastic but is finished similarly to the rest of the case - so it's really not that bad. There's plenty of excellent cable management and a potentially useful fan HUB - however, I didn't use it in the end because it can't report the fan status/give control to each individual fan - essential if you want complete control. You have to use the MB headers. Maybe there needs to be an upgrade to MB headers to give control to useful fan hubs like this as it would have helped a great deal with cable management - which this case potentially needs because of it's sheer size. I really did find myself having to re-route cables to overcome the dimensions - but this was all part of the fun of the build. I have an overclocked x299 system with a dual radiator for water cooling and a blower cooled GTX1080 yet the air coming out the top and back never really feel that hot. Even under sustained high load. The temperature sensors on the MB confirm this. I ran this system outside of the case while I waited for my back-order to be delivered and it actually ran hotter then it did when eventually in the case! Bottom line, this is a quality item but you do pay for it. I probably didn't need this case because, for my simple setup, it's unnecessarily large. Do I regret buying it? Not at all. The finish is unlike any other case I've seen and when the panels are all in place, it really does look awesome.
