Scan code: LN91808 Manufacturer code: FD-CA-DEF-R6C-BKO

Fractal Define R6 Blackout Mid Tower PC Gaming Case with USB-C

Fractal Design Define R6, Blackout, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C

Thumbnail 1 : Fractal Define R6 Blackout Mid Tower PC Gaming Case with USB-C Thumbnail 2 : Fractal Define R6 Blackout Mid Tower PC Gaming Case with USB-C Thumbnail 3 : Fractal Define R6 Blackout Mid Tower PC Gaming Case with USB-C Thumbnail 4 : Fractal Define R6 Blackout Mid Tower PC Gaming Case with USB-C
Scan code: LN91808 Manufacturer code: FD-CA-DEF-R6C-BKO
RRP: £126.98
Order now and get it tomorrow, Wed 23rd Sep
From £9.17 / month (APR 0%)
Monthly Payment: £9.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £109.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 23rd Sep to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Fractal Define R6 Blackout - Gaming PC Case with USB-C

Fractal r6

DEFINE R6 - profound innovationThe Fractal Design Define R6 is the latest and largest step in the legacy of the world-renowned Define Series, bursting with intelligently designed enthusiast features, which deliver a silent case with powerful and expansive air and liquid cooling support. The sound dampened steel panels encase a fully redesigned interior with more storage capability than ever before, and with nine fan mounts, PWM fan hub, and 420mm radiator support. With improved third generation ModuVent™ the R6 offers the most demanding hardware buff a solid foundation and flexible framework with limitless potential and the perfect platform for building the dream water-cooling setup.

Airflow Designed Interior

Fractal R6 Airlflow

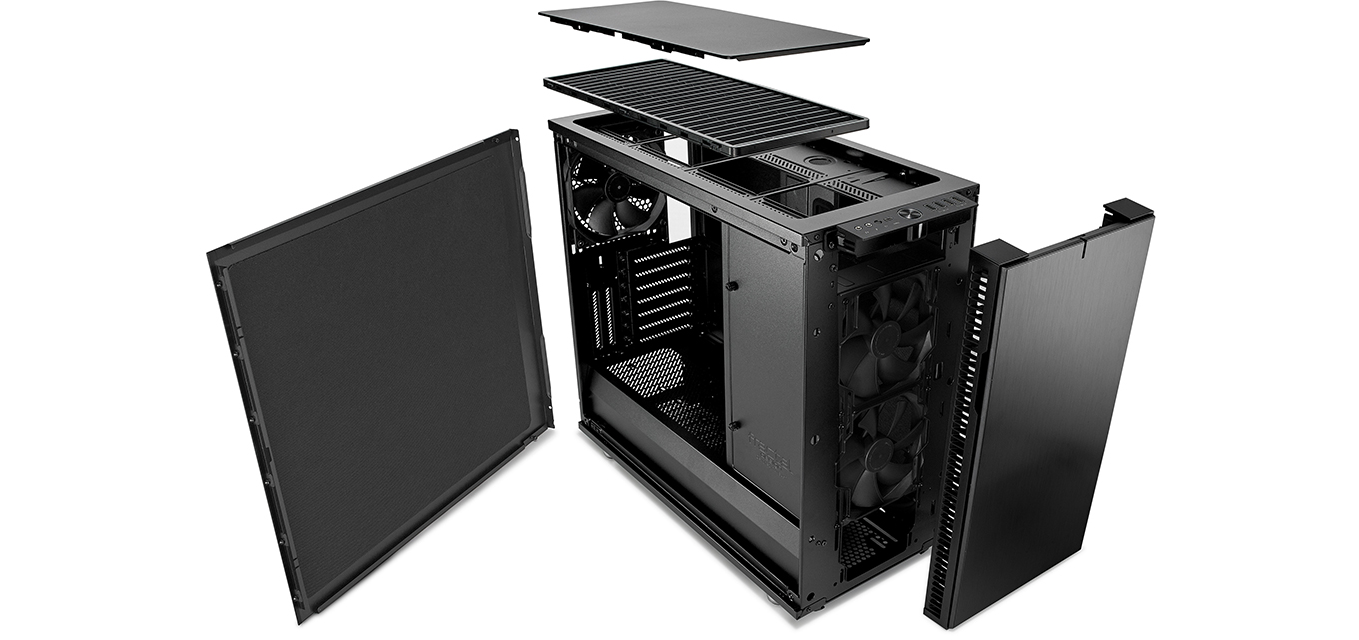

PRE-INSTALLED SILENT DYNAMIC FANS The Define R6 features three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140mm fans, ensuring crucial airflow via two intake fans and a single exhaust. With nine fan positions, the intuitive layout offers clear airflow paths. The R6 is optimally designed for silent computing with high-density industrial noise-reducing material throughout the case for maximum sound absorption, whilst not compromising on airflow and cooling capabilities on the side, top and front panels. Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and up to 280 mm in the base.

Customisable Storage Options


MODULAR DESIGN The modular interior includes 6 x 3.5”/2.5” HDD/SSD trays and 2 x 2.5” SSD trays that can be independently repositioned to suit components, cooling, and cable routing. With the 2.5” storage solution consisting of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud. The power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior

Ultra-fast USB Type-C

USB Type C

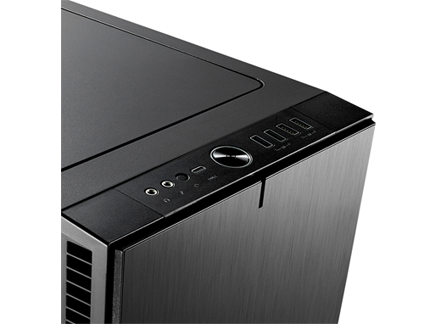

10GBPS TRANSFER SPEEDS The Define R6 features a USB 3.1 Gen 2 Type-C Port with Fast Charging support and up to 10Gbps transfer speeds.

Durable and Built to Last

Fractal R6 diagram

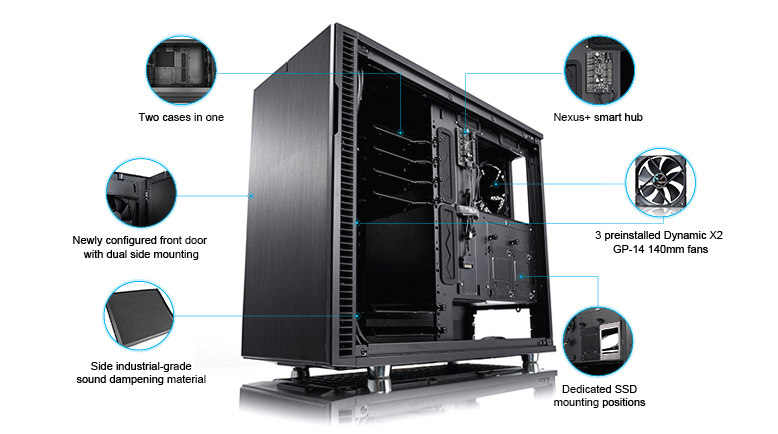

CONSTRUCTED FOR ADAPTABILITY The Define R6 innovative design includes extensive features for delivering all-out durability, as the newly configured reversible front door with anodized aluminium cover and dual mounting system combines adaptability with sophistication. Nexus+ Smart Hub offers superior fan control of six additional case fans and three extra PWM devices via your motherboard. Vertical 2.5” slot GPU mount, compatible with the Fractal Design Flex VRC-25 PCIE x16 Vertical GPU Riser Kit, showcases your graphics hardware with full visibility and secure fastening (sold separately).

Easy PC Maintenance

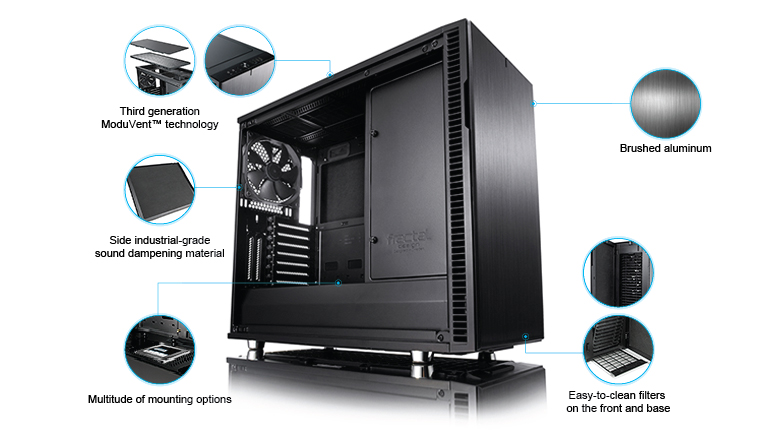

ADVANTAGEOUS FEATURES for your build Define R6 makes maintenance of your PC setup simple with advantageous features, high airflow nylon filters are integrated on the front, top, and base with full PSU coverage and front access for easy-to-clean convenience. With third generation ModuVent™ technology, this gives users the choice between a soundproof steel cover and filtered multi-fan ventilation setup in the top panel.

See all the Features of the Fractal Define R6 Gaming Case

Fractal r6
Core Chassis Specifications
Case Edition Define R6
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays
  • 3 x 120/140mm
  • 6 x 120mm / 4x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • PSU
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Cable Routing Space 23mm mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 300 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 233 x 465 x 543 (WxHxD mm)
Weight 12.4 kg (Approx)
Please Note
Additional Information
Scan Code LN91808
Model Number FD-CA-DEF-R6C-BKO
GTIN 7340172701156

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
Manufacturer Contact Details
Quiet PC
Loading Please Wait

Please wait . . .

Fractal Design Define R6, Blackout, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Some great design features I still found certain things tricky when using this case for a build. It would be really handy if the bottom plate, where the motherboard is screwed on to, was detachable. Everything would be so much less fiddly. Other than that it is a great case and allows everything to be really neat and tidy inside. I had a previous model of fractal case before and always thought that was good. This one has so many improvements and upgrades. I particularly like the way the side panels come off and go back on so easily. No more trying to line up all the bits and slide it on correctly, it just flips out and off, then back in again.
Date published: 2020-01-16
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_91808, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

can a cd/dvd rom drive be fitted to this model?

Asked by: AustinMaxi
Yes, there is a single space for this at the top front.
Answered by: grok
Date published: 2020-01-16
