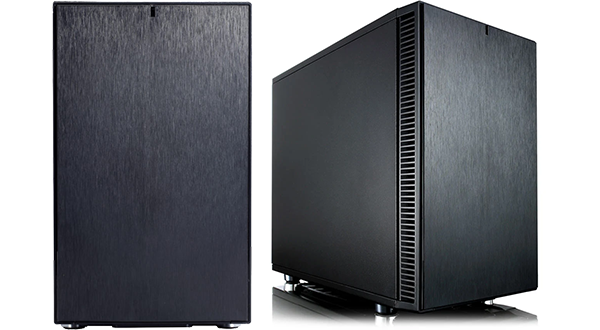

Define Nano S - Black Mini ITX Case from Fractal Design
UTILIZE FRACTAL DESIGN GREATNESS
Enjoy an innovative, space-saving case that's designed for silent computing offers smart sound dampening and ModuVent™ technology. Utilize a user-friendly design that provides superior cable management with room for full-size components. The Define Nano S also offers flexible storage options with room for up to four drives.
House your Components with Superior Technology
Designed for silent computing
This case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters. With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.
Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly – a hallmark of the Define series.
Key Features of the Define Nano S
CREATE YOUR DREAM RIG
• User-friendly construction with superior cable management and compatibility for full-size components.
• Flexible storage options with room for up to four drives.
• Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting.
• Features two Dynamic Series fans — 1 GP-12 and 1 GP-14 — with an adapter included for motherboards with limited fan headers.

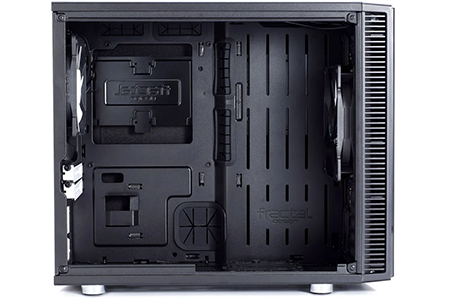

• Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust.
• Easy-to-clean filters on the bottom and front, with the bottom filter ejecting from the front for easy access.
Made for Endless High-Performance
ModuVent technologyDesigned for silent computing with sound dampening and ModuVent™ technology.
Water-cooling readyAccommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting.

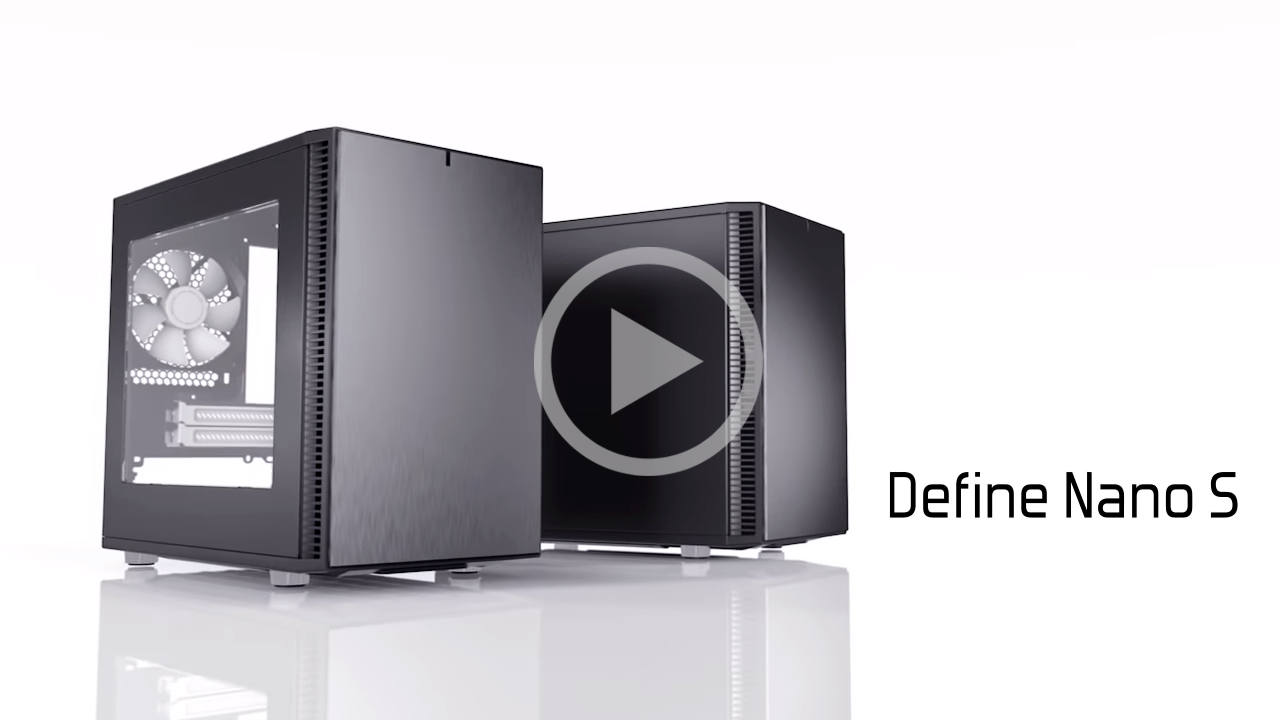

See the Define Nano S in Action
Specifications
| Core Chassis Specifications |
|---|
| Case Edition |
Define Nano S
|
| Case Form Factor |
Mini-ITX
|
| Motherboard Form Factor |
Mini-ITX
|
| I/O, Bays & Expansion |
|---|

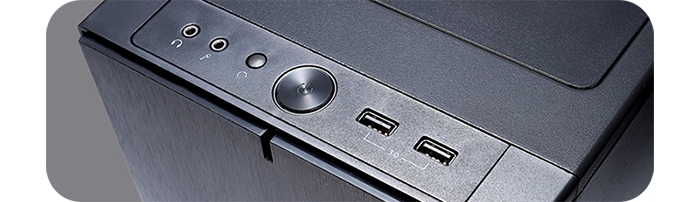

| Front/Side/Top Panel I/O |
- 1 x HDD Activity LED
-
1 x Headphone Out
-
1 x Mic In
-
1 x Power Button with LED
-
1 x Reset Button
-
2 x USB 3.0
|
| Drive Bays |
- 2 x 2.5" Internal
-
2 x 2.5"/ 3.5" Internal
|
| Standard Expansion Slots |
2
|
| Vertical Expansion Slots |
|
| Fans & Filters |
|---|
| Fan Bays |
|
| Fans Included |
|
| Fan Controller/Hub |
|
| Dust Filters |
|
| Liquid Cooling Support |
|---|
| Front Radiator Compatibility |
1 x 120/140/240/280mm
|
| Top Radiator Compatibility |
1 x 120/240mm
|
| Bottom Radiator Compatibility |
1 x 120mm
|
| Rear Radiator Compatibility |
1 x 120mm
|
| Side Radiator Compatibility |
|
| Clearances |
|---|
| Max CPU Cooler Height |
162 mm
|
| Max GPU Card Length |
315 mm
|
| Cable Routing Space |
|
| Side Panels |
|---|
| Window/s |
No
|
| Window Configuration |
|
| Window Construction |
|
| LED Lighting Functionality |
|---|
| LED Lighting |
No
|
| LED Lighting Emitters |
|
| LED Lighting Colour |
|
| LED Lighting Support & Control |
|
| Power Supply Compatibility |
|---|
| PSU Included |
No
|
| PSU Wattage (If Included) |
|
| PSU 80+ Rating (If Included) |
|
| PSU Support |
ATX
|
| PSU Mounting Location |
|
| Max PSU Length |
160 mm
|
| Chassis Physical Specifications |
|---|
| Colour |
Black
|
| Chassis Contruction Materials |
Metal / Plastic
|
| Dimensions |
203 x 344 x 412 (WxHxD mm)
|
| Weight |
5.0 kg (Approx)
|
| Please Note |
|
| Additional Information |
|---|
| Scan Code |
LN69969
|
| Model Number |
FD-CA-DEF-NANO-S-BK
|
| GTIN |
7350041084129
|
Warranty
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
Details
- Duration:
- 24 months
- Type:
-
Return to base
- DOA Period:
- 28 days
- RTB Period:
- 12 months
Manufacturer Contact Details
- Manufacturer:
- Fractal Design
TekSpek Guides
Computer Cases
Date Issued:
6th Jul 2011
There's more choice than ever before, but which computer case is right for you and which features should you look out for?
Read More
Chassis Airflow
Date Issued:
20th Oct 2008
The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.
Read More
Fractal Design Define Nano S, Black, Mini-ITX Computer Chassis, 140/120mm Dynamic Series Fans, Quiet Design, 2x USB 3.0 is rated
5.0 out of
5 by
3.
Rated 5 out of
5
by
Neutronstar from
slick, functional, reasonable
slick refined design. functional form with many possible configurations. reasonably priced for its feature set. not the smallest its case, but the most adaptable, especially for professional applications. recommended.
Date published: 2020-07-18
Rated 5 out of
5
by
C1R0 from
excellent case
this case is just what i was looking for, spacious yet has a small footprint. although i wish i had gone with the windowed version, to show off my components. i would recommend a sfx PSU for this case since the GPU is right above where the PSU goes.
Date published: 2017-01-07
Rated 5 out of
5
by
dcrobinson from
A Great Case
This case is beautifully made, with nice attention to detail, such as captive screws for the side panel.
As mini-ITX cases go, it's relatively huge, but that's so you can fit full length graphics cards and a water cooler reservoir if required. I have an M.2 SSD which mounts on the underside of the motherboard, together with a pair of SSDs which mount on the underside of the motherboard tray. That leaves a vast space in the case, which gives a completely clear airflow.
With an i7 processor, and a Scythe Mugen 4 cooler, I have a silent, cool and ludicrously fast system.
Expensive, but you get what you pay for.
Date published: 2016-06-16
