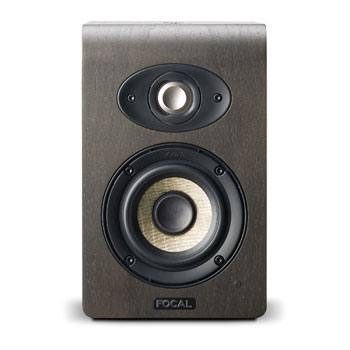

Focal Shape 40 Monitor Speaker (Single)
Focal Shape 40 Monitor Speaker (Single), 4" Woofer, Double Passive Radiator, 60Hz - 35kHz, Flax Sandwich Cone
- SCANPROTECT Protect against installation damage for 28 days. More info
4" Powered Studio Monitor
Focal - Shape 40
(Single)
2-way Powered Studio Monitor with 4" Flax Cone WooferShape 40 is the most compact studio monitor in the Focal Professional line, and the perfect solution for nearfield monitoring. These monitors can be used from 23″ away (60cm), and they have astonishingly extended low end frequency response. Whether you have a room of less than 107ft2 (10m2), or an installation where compactness is paramount, Shape 40 is the perfect solution.
The three monitors are all made in France and integrate five innovations to maximise acoustic transparency. Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
These innovations provide remarkable acoustic transparency. These new work tools distinguish themselves through the wide and extremely precise stereo image. The bass register is articulated and controlled. The lower mid-range and mid-range benefit from extreme neutrality, and without any masking effects, making equalisation of these essential registers much easier. Finally, the new tweeter is what’s at the source of the very high definition. It efficiently reveals any hissing, and it’s also very precise in the very high end.
1 x XLR, 1 x RCAInput Types
4"LF Driver Size
50W Class ABTotal Power
at a glance
• Low directivity tweeter for a flexible listening position
• Designed without a port allowing it to be placed near a wall
• Numerous settings for optimal integration
• Accurate control, even in the very high end

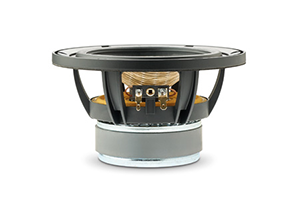

• Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
• Threads for ceilling and wall mounts (fastening accessories not supplied)
Focal - Shape
Designed to meet the needs of nearfield monitoring, Shape monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms.
The Tech Spec
Features | Specification | Powered | Yes |
---|---|
Power Configuration | Bi-amped |
Quantity | Single |
LF Driver Size | 4" woofer |
LF Driver Type | Flax Sandwich Cone |
HF Driver Size | 1" tweeter |
HF Driver Type | M profile aluminum-magnesium |
LF Driver Power Amp | 25W |
HF Driver Power Amp | 25W |
Total Power | 50W Class AB |
Frequency Response | 60Hz-35kHz (±3dB) |
Crossover Frequency | Adjustable |
Maximum Peak SPL | 102dB SPL Peak @1m |

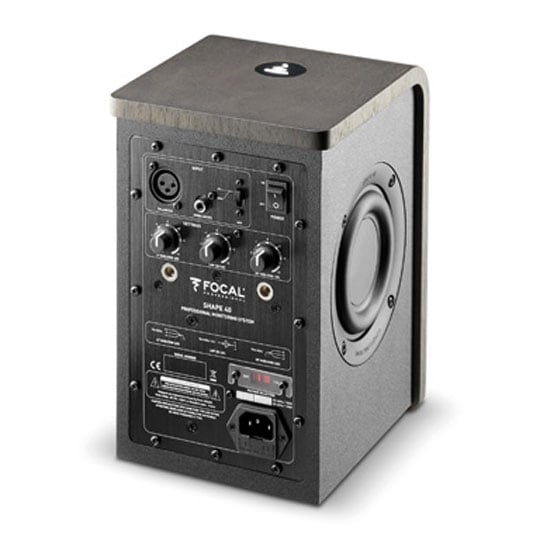

Input Types | 1 x XLR, 1 x RCA |

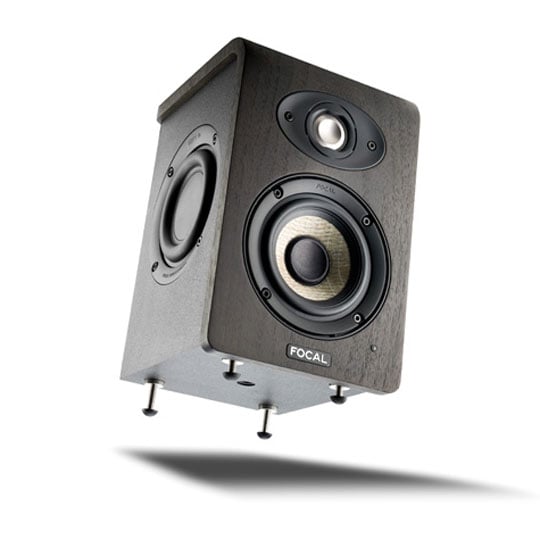

Features | 3-band EQ, High-pass filter, 4" passive side radiator |
Enclosure Type | Passive radiator |
Enclosure Material | MDF with natural walnut veneer |
Height | 10.1" |
Width | 6.3" |
Depth | 7.9" |
Weight | 16.1 lbs |
