FiiO M11S Digital Audio Player
FiiO - M11S Hi-Res Portable Music Player, Dual ES9038Q2M DACs, 670mW Output Power, 5.0"/720P Display
Hi-Res Portable Music Player
FiiO - M11S
the pursuit of purer soundThe FiiO M11S music player features a high-performance, high-efficiency ES9038Q2M DAC on both the left and right channels, to reproduce every last detail in your music. These DACs allow for decoding support of up to 384kHz/DSD256. Audio data is passed through a FiiO-developed 4th-gen FPGA with phase-locked loop technology, which works together with two custom femtosecond crystal oscillators to provide a high-precision and low jitter unified clock source for the entire audio architecture.
The amplifier and op-amp sections of the M11S are independently powered and isolated from each other, allowing for clean and abundant power, while resulting in better dynamics that can easily handle any kind of use cases. Under a 32 ohm load, single ended power output is 200mW while balanced power output is at a healthy 670mW, allowing the M11S to exceed any expectations.
At A Glance
• High performance dual ES9038Q2M DACs
• 670mW output power
• 5.0 inch/720P bezel-less display
• Qualcomm Snapdragon 660
• 14 hours battery life
• Android 10, SRC global bypass
• Roon Ready supported
Operating Modes
• Android mode: Enjoy many third-party apps, play the way you want
• Pure Music mode: Be free from the interference of other apps for full musical immersion
• Bluetooth receiving mode: Easily receive music from other devices like smartphones
• USB DAC mode: Connect to your computer, transform any computer into a high-fidelity source
• AirPlay mode: Bypass iPhone Bluetooth AAC limitation
Hear Music As The Artist Intended
Free of noiseAs a result of meticulous and careful design refinement, the M11S has a low noise floor of 1.8muV, 62% lower than the previous generation. Immerse yourself in the bliss of pure music, uninterrupted by noise in a pure black background.
Lower latencyAccess your music in multiple ways! Receive or transmit Bluetooth audio in various formats (with LHDC transmission support for the first time), or you can use DLNA/AirPlay for even more choice. Bluetooth transmission: LDAC/LHDC/aptX HD/aptX/AAC/SBC Bluetooth reception: SBC/AAC/LDAC.
6th gen honeycomb designWith an atmospheric and bold hexagonal build, the M11S makes a striking impression wherever it goes. The multi-touch 5.0-inch 720p display is the perfect size for comfort during longer usage sessions.

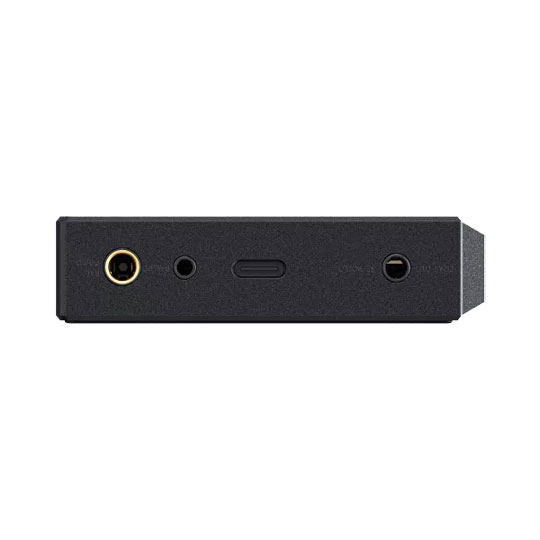

variety of audio connectionsOn the M11S not only are there the 2.5mm/3.5mm/4.4mm outputs, but you also getn a new balanced line out so you can be sure to connect to your music the way you want to.
Android 10 OSFeaturing Android 10 with a global SRC bypass, you can install music streaming apps such as Apple Music and listen in full lossless quality whenever you want!
Supports MQA unfoldingThe M11S supports MQA 8x unfolding for master-level sound, allowing you to better appreciate the music the way the artist intended.
Qualcomm Snapdragon 660 Processor
The power to move youA Snapdragon 660 with a 4 big / 4 small core architecture comes built-in to the M11S, the same as in the flagship M17.
This enables the M11S to deliver a smartphone-like smooth experience for an immense performance improvement over the previous generation.
Not only can the chip capably handle tasks like watching videos and playing games, it also allows ultra-low power consumption when just listening to music for a better battery life.
10-Band PEQ Precise Tuning
designed for great soundThe PEQ (Parametric Equalizer) function was designed for the M11S, which supports 10-band self-defined tuning.
On the FiiO Music App in the M11S, users can self-adjust the frequency, gain level, Q value, etc., allowing for a more accurate frequency response among every frequency range while ensuring high-fidelity sound quality. It supports up to 192kHz/24bit under PEQ style.
The Tech Spec
| Features | Specification | Main processor | Qualcomm Snapdragon 660 |
|---|---|
| DAC | ES9038Q2Mx2 |
| System | Android 10 |
| Display Screen | 5.0-inch (720*1280) bezel-less |
| Dimensions | 125.2 x 74 x 18.5mm |
| Weight | 271g approx. |
| Output Power | PO>200mW (32Ω/THD+N＜1%) BAL>670mW (32Ω/THD+N＜1) |
| SNR | PO<123dB (A-weighted, 20k low pass) BAL>123dB (A-weighted, 20k low pass) |
| THD+N | PO<0.00066% (1kHz/32Ω) BAL<0.00043% (1kHz/32Ω) |
| Channel Crosstalk | PO>79dB (1kHz/32Ω) BAL>112dB (1kHz/32Ω) |
| Noise Floor | PO<1.8uV (A-weighted, 20k low pass) BAL<3.1uV (A-weighted, 20k low pass) |
| Output Impedance | PO<1.5Ω (32Ω) BAL<2.6Ω (32Ω) B |
| Battery life | About 14h (single-ended) |
| Charging time | About 3h (QC fast charging) |
| Memory/storage | 3GB/32GB |
| Micro SD card support | Single slot, supports 2TB |
| Third-party apps | Supports Apple Music, Google Play, Tidal, etc. |
