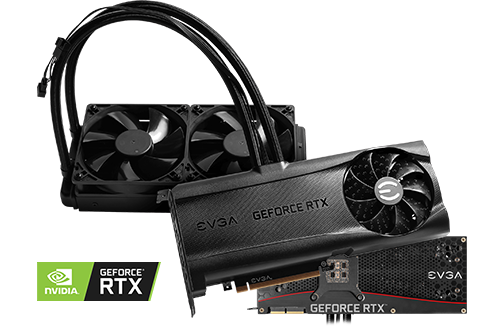

EVGA NVIDIA GeForce RTX 3090 24GB XC3 ULTRA HYBRID Ampere Graphics Card
EVGA NVIDIA GeForce RTX 3090 XC3 ULTRA HYBRID 24GB GDDR6X Ray-Tracing Graphics Card, 10496 Core, 1395MHz, 1725MHz Boost
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free

EVGA GeForce RTX 3090 XC3 ULTRA HYBRD GAMING Ampere Graphics Card

The Definition of Ultimate performance Prepare yourself for an unforgettable gaming experience with the EVGA GeForce RTX 3090 XC3 ULTRA HYBRID GAMING Graphics Card, the EVGA GeForce RTX 3090 delivers the unprecedented performance that gamers crave for 4K resolution gaming with the added benefit of a simple self-containing liquid cooling unit, boasting an upgraded 240mm radiator, dedicated memory cooling and large vrm heatsinks that are integrated into the shroud. The GeForce RTX 3090 is powered by the NVIDIA Ampere architecture. It's built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience. Combined with the next generation of design, cooling, and overclocking with EVGA Precision X1, the EVGA GeForce RTX 3090 Series presents a new definition in ultimate performance.
10496Cuda Cores
1395 MHzCore Clock
1725 MHzBoost Clock
24GBGDDR6X Memory
Updated 240mm Radiator

Simple but Effective CoolingReady for whatever you can throw at them the 3080/3090 Series hybrid cards feature a large updated 240mm radiator, get all the advantages of water-cooling without the hassle and maintenance, no assembly, no leak tests just quick and easy plug and play!
Keep Your Sensitive Components Chilled

Optimised Airflow ChannelsHYBRID cards are known not only for ice-cold cooling on the GPU and Memory, but also for keeping the vital power sections of the card chilled. The EVGA GeForce RTXᐪᔿ 3090 Series HYBRID cards feature VRM heatsinks that are built into the shroud, along with directional airflow inside the shroud for maximum cooling effect over the entire card.
Additional Features of the RTX 3090 XC3 HYBRID

Built For AmpereEngineered with Ampere in mind.

Hydro PerformanceAll-in-one self contained cooling solution.

Sleek LooksIntelligent wiring and sleeved tubing to keep aesthetics clean and simple.

Copper BaseSpecially designed copper GPU base to increase heat dissipation.

Premium ARGBCrafted with a premium ARGB panel and dual ARGB fans to deliver high-caliber customisation.

Airflow ChannelDirectional airflow is used inside the shroud to increase cooling efficiency.

Patented Copper Memory PlateDedicated memory plate makes direct contact with the block to keep memory cool.

Built in RadiatorBuilt in 240mm radiator and fans help to keep the GPU as cool as possible.
Precision X1 Software

Monitor, Tweak and TuneTake full control of both the VRMs and radiator through EVGA's intuitive Precision X1 Software, Take control of your GPU to all new heights. With a brand new layout, completely new codebase, new features and more, the new EVGA Precision X1ᐪᔿ software is faster, easier and better than ever.
NVIDIA Ampere Architecture

2nd Gen RT Cores2X THROUGHPUT
3rd Gen Tensor CoresUP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
Max FPS. Max Quality. Powered by AI. NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.

Ultimate Ray Tracing And AI

RTX. It’s On.Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency

Victory Measured in MillisecondsNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination

Up Your Creative GameTake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio

Stream Like a Boss Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects

DirectX 12 Ultimate offers features like ray tracing and variable rate shading
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features

8K HDR GamingStep up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.

GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.

Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.

Virtual RealityTake your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.

NVIDIA G-SyncGet smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.

NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
NVIDIA GeForce Graphics Card Specifications
GeForce RTX 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications | ||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | RTX 3090 Ti | RTX 3090 | RTX 3080 Ti | RTX 3080 | RTX 3070 Ti | RTX 3070 | RTX 3060 Ti | RTX 3060 | RTX 3050 | TITAN RTX | RTX 2080 Ti | RTX 2080 Super | RTX 2080 | RTX 2070 Super | RTX 2070 | RTX 2060 Super | RTX 2060 | GTX 1080 Ti | GTX 1080 | GTX 1070 Ti | GTX 1070 | GTX 1660 Ti | GTX 1660 Super | GTX 1660 | GTX 1650 Super | GTX 1650 | GTX 1060 6GB | GTX 1060 3GB | GTX 1050 Ti | GTX 1050 |
Architecture | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Turing | Turing | Turing | Turing | Turing | Turing | Turing | Turing | Pascal | Pascal | Pascal | Pascal | Turing | Turing | Turing | Turing | Turing | Pascal | Pascal | Pascal | Pascal |
GPU | GA102 | GA102 | GA102 | GA102 | GA104 | GA104 | GA104 | GA106 | GA106 | TU102 | TU102 | TU104 | TU104 | TU104 | TU106 | TU106 | TU106 | GP102 | GP104 | GP104 | GP104 | TU116 | TU116 | TU116 | TU117 | TU117 | GP106 | GP106 | GP107 | GP107 |
CUDA Cores | 10,752 | 10,496 | 10,240 | 8,704 | 6,144 | 5,888 | 4,864 | 3,584 | 2,560 | 4,608 | 4,352 | 3,072 | 2,944 | 2,560 | 2,304 | 2,176 | 1,920 | 3,584 | 2,560 | 2,432 | 1,920 | 1,536 | 1,408 | 1,408 | 1,280 | 896 | 1,280 | 1,152 | 768 | 640 |
Tensor Cores | 336 | 328 | 320 | 272 | 192 | 184 | 152 | 112 | 80 | 576 | 544 | 384 | 368 | 320 | 288 | 272 | 240 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
RT Cores | 84 | 82 | 80 | 68 | 48 | 46 | 38 | 28 | 20 | 72 | 68 | 48 | 46 | 40 | 36 | 34 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Reference Base Clock | 1,560MHz | 1,400MHz | 1,370MHz | 1,440MHz | 1,580MHz | 1,500MHz | 1,410MHz | 1,320MHz | 1,552MHz | 1,350 MHz | 1,350 MHz | 1,650 MHz | 1,515 MHz | 1,605 MHz | 1,410 MHz | 1,470 MHz | 1,365 MHz | 1,480 MHz | 1,607 MHz | 1,607 MHz | 1,506 MHz | 1,500 MHz | 1,530 MHz | 1,530 MHz | 1,530 MHz | 1,485 MHz | 1,506 MHz | 1,506 MHz | 1,290 MHz | 1,354 MHz |
Reference Boost Clock | 1,860 MHz | 1,700 MHz | 1,670MHz | 1,710 MHz | 1,770MHz | 1,730 MHz | 1,665MHz | 1,780MHz | 1,777MHz | 1,770 MHz | 1,545 MHz | 1,815 MHz | 1,710 MHz | 1,770 MHz | 1,710 MHz | 1,650 MHz | 1,680 MHz | 1,582 MHz | 1,733 MHz | 1,683 MHz | 1,683 MHz | 1,770 MHz | 1,785 MHz | 1,785 MHz | 1,725 MHz | 1,665 MHz | 1,708 MHz | 1,708 MHz | 1,392 MHz | 1,455 MHz |
Memory | 24GB GDDR6X | 24GB GDDR6X | 12GB GDDR6X | 10GB GDDR6X | 8GB GDDR6X | 8GB GDDR6 | 8GB GDDR6 | 12GB GDDR6 | 8GB GDDR6 | 24GB GDDR6 | 11GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 11GB GDDR5X | 8GB GDDR5X | 8GB GDDR5 | 8GB GDDR5 | 6GB GDDR6 | 6GB GDDR6 | 6GB GDDR5 | 4GB GDDR6 | 4GB GDDR5 | 6GB GDDR5 | 3GB GDDR5 | 4GB GDDR5 | 2GB GDDR5 |
Memory Controller | 384-bit | 384-bit | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 192-bit | 128-bit | 384-bit | 352-bit | 352-bit | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 352-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit | 192-bit | 128-bit | 128-bit | 192-bit | 192-bit | 128-bit | 128-bit |
TDP | 450W | 350W | 350W | 320W | 290W | 220W | 200W | 170W | 130W | 280W | 260W | 250W | 225W | 215W | 175W | 175W | 160W | 250W | 180W | 180W | 150W | 120W | 125W | 120W | 110W | 75W | 120W | 120W | 75W | 75W |
