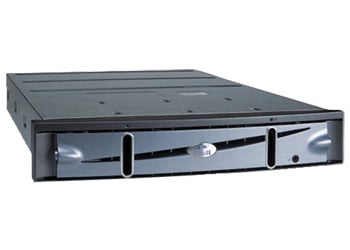

EMC Insignia Clariion AX150-500 Storage Array with 4x500GB drives, Fibre Channel

EMC2 Insignia
Scan code: LN15280 Manufacturer code: AX150-500 Request call
End Of Life
High End
Product Overview EMC CLARiiON AX150 series disk arrays enable small and medium businesses to consolidate and share storage efficiently among multiple computers. The AX150 is ideal for performing fast, reliable backup to disk. By combining the capabilities of EMC's renowned CLARiiON RAID architecture and Serial ATAII (SATAII) disks, the CLARiiON AX150 delivers easy-to-use, highly reliable data storage at an affordable price. The CLARiiON AX150 is available in single controller or dual controller models. Both models provide up 6 terabytes of storage for Windows, Linux, Solaris and NetWare servers directly or through a storage area network (SAN) using high-speed Fibre Channel or iSCSI connections.

To learn more about CLARiiON AX series disk arrays for the SMB market, Click Here

*Note: Dual controller Storage Array requires EMC Clariion AX150 UPS to function properly Features Manufacturer's Part Number AX150-500
Installed Devices / Modules Qty 4 (installed) / 12 (max)
Max Supported Capacity 6 TB
Enclosure Type Rack-mountable - 2U
Storage Controller 2 x RAID ( Serial ATA-300 ) - RAID 0, 1, 5
Device Type Hard drive array
Host Channels 4
Hard Drive 4 x 500 GB standard Serial ATA-300
Interface 2 Gb Fibre Channel
Supported Drives Serial ATA-300
Total Array Capacity 2 TB
Power Redundancy Optional
Product Description EMC Insignia CLARiiON AX150 - hard drive array
Power AC 120/230 V ( 50/60 Hz )
Device Type Hard drive array
Enclosure Type Rack-mountable - 2U
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 80%
Power Device 1 x power supply - hot-plug - plug-in module
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 250 Watt
Expansion / Connectivity
Expansion Bays Total (Free) 12 ( 8 ) x internal - 3.5" x 1/3H
Interfaces 4 x 2Gb Fibre Channel
Total Array Capacity 2 TB
Max Supported Capacity 6 TB
HDD Array External Interface 2 Gb Fibre Channel
Host Channels 4
Cabinet (Chassis)
Installed Devices / Modules Qty 4
Supported Devices / Modules Qty 12
Supported Drives Serial ATA-300
Compliant Standards NEBS level 3, CE, FCC Class A certified, EN 60950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A
Storage Hard Drive
Type Standard - internal
Capacity 4 x 500 GB
Interface Type Serial ATA-300
Spindle Speed 7200 rpm
Storage Controller
Type 2 x RAID ( 2Gb Fibre Channel )
Controller Interface Type Serial ATA-300
Supported Devices Hard drive
