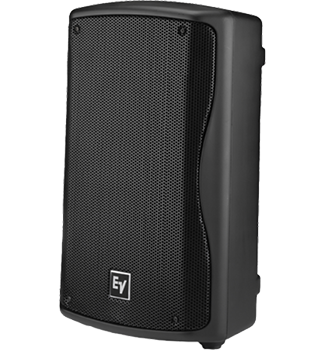

Electrovoice - ZXA1 8" 2-Way Powered Full-Range Loudspeaker

Electrovoice - ZXA1 800W 8" 2-Way Powered Full-Range Loudspeaker, 90° x 50°, 60Hz-20kHz, 126dB SPL

MORE INFO
MORE INFO
Thumbnail 1 : Electrovoice - ZXA1 8" 2-Way Powered Full-Range Loudspeaker Thumbnail 2 : Electrovoice - ZXA1 8" 2-Way Powered Full-Range Loudspeaker
Scan code: LN127813 Manufacturer code: F.01U.171.559
£527.48Item due tomorrow
Pre Order
Due tomorrow
From £16.90 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £46.25
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £527.48
Total inc. interest: £554.94
Monthly Payment: £24.22
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £527.48
Total inc. interest: £581.11
Monthly Payment: £16.90
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £527.48
Total inc. interest: £608.04
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.17 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

8" 2‑Way Powered Full‑Range Loudspeaker
Electrovoice - ZXA1

Electrovoice ZXA1

A revolution in portable soundWith the Electro-Voice ZXA1 8" 2‑Way Powered Full‑Range Loudspeaker the Electro-Voice engineers have once again raised the bar for portable sound, as an addition to the award-winning ZX loudspeaker family, the ZXA1 is a self-powered version of the best-selling ZX1 compact two-way loudspeaker. ZXA1 is powered by an 800 watt amplifier module taken from EV’s world-tour-class Tour Grade series, amplifiers with audio quality and reliability proven at the very highest levels.

800WPower

60Hz - 20kHzFrequency Response

126dBMax. SPL

Amazing Features • Integrated 800 watt power amplifier with a bi-amplified design and transducer protection
• EV8L 8” high-output LF transducer and DH2005 1” exit true compression driver
• Rotatable horn design and 90° x 50° coverage pattern
• Selectable high-pass filter for use with subwoofers
• Line and microphone inputs

The Tech Spec

Features Specification
Freq. Response (-3dB) 60Hz-20kHz
Freq. Range (-10dB) 48Hz-20kHz
Max. Measured SPL 126dB
Coverage (Horiz. x Vert.) 90° x 50°
Power Rating 800W
LF Transducer (1) EV-8L, 204mm (8") Woofer
HF Transducer DH-2005, 25mm (1") Exit Compression Driver
Crossover Frequency 1.8kHz
Connectors (1) XLR Mic Input with Gain Control, (1) XLR/TRS Combo Jack, (1) XLR Link Output
Enclosure Material ABS
Grille 18GA Steel with Black Powdercoat
Mains Requirements 100V: 80V-110V, 0.7A⁴, 50-60Hz
120V: 95V-132V, 0.6A⁴, 50-60Hz
230V: 190V-264V, 0.4A⁴, 50-60Hz
Dimensions (H x W x D) 457mm x 282mm x 264mm (17.99" x 11.10" x 10.39")
Weight 8.6kg (19.0lbs)
Specifications
Number of Speakers 2
Number of Input Channels 0
Frequency Response -3dB 60Hz-20kHz dB
Frequency Response -10dB 48Hz-20kHz dB
Coverage (Dispersion H x V ) 90° x 50°
HF wattage (RMS) 800 Watts (RMS)
LF Wattage (RMS) 0 Watts (RMS)
Maximun SPL 126 dB
Power rating (Peak) 0 Watts (Peak)
Power rating RMS 800 Watts (RMS)
Speaker size 8 Inches
Enclosure Type N/A
Dimensions 457mm x 282mm x 264mm
Net weight 8.6 KG
Shipping weight 10.3 KG
Connections (Input)
  • 1 x XLR
  • 1 x XLR / Jack Combi
Connections (Output) 1 x XLR
Colour Black
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable Yes
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
Additional Information
Scan Code LN127813
Model Number F.01U.171.559
