15" Powered Subwoofer
Electrovoice - ELX200-15P
1200W Powered Subwoofer

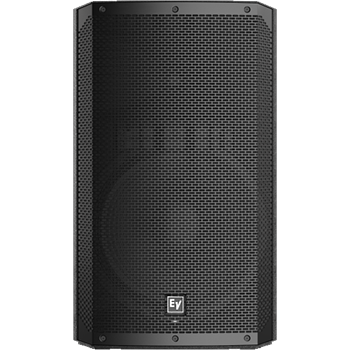

Electrovoice's ELX200-15P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1L 1-inch titanium compression driver).
Powered full-range models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
132 dB Max SPL
55 Hz - 16 kHzFrequency Range
1200WTotal Power
at a glance
• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters.
• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
suitability
• For Live Stages, DJ Setups, Mobile Rigs
Meet Electro-Voice's ELX200 Portable Loudspeaker Series!
The Tech Spec
| Features | Specification | Power rating | 1200 W |
|---|---|
| Frequency response (-3 dB) | 55 Hz - 16 kHz |
| Frequency range (-10 dB) | 48 Hz - 19 kHz |
| Maximum SPL | 132 dB |
| LF transducer | EVS-15M 381 mm (15 in) |
| HF transducer | DH-1L 1-inch titanium compression driver/td> |
| Crossover frequency | 1600 Hz |
| Connectors | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (3) M10 suspension points |
| Colour | Black or White |
| Dimensions (H x W x D) | 710 mm x 423 mm x 384 mm (28.0 in x 16.7 in x 15.2 in) |
| Net weight | 18.9 kg (41.7 lb) |
| Shipping weight | 21.8 kg (48.1 lb) |
| Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A |
