EK-Quantum Inertia D5 PWM D-RGB Plexi Pump

EK-Quantum Inertia D5 PWM D-RGB Plexi Pump, 1500L/h, 23W, Silent, 50000 hrs MTBF, Plexi

Thumbnail 1 : EK-Quantum Inertia D5 PWM D-RGB Plexi Pump Thumbnail 2 : EK-Quantum Inertia D5 PWM D-RGB Plexi Pump Thumbnail 3 : EK-Quantum Inertia D5 PWM D-RGB Plexi Pump
Scan code: LN108792 Manufacturer code: 3831109821930
£129.95
Order now and receive it by Monday, 21st September
From £11.67 / month (APR 14.9%)
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.95
Total inc. interest: £139.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

High-Performance Liquid Cooling Pump

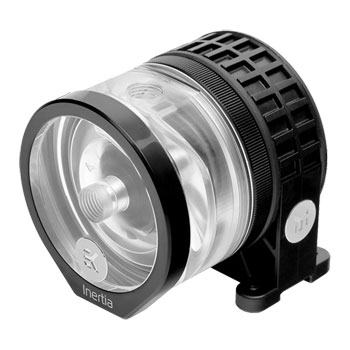

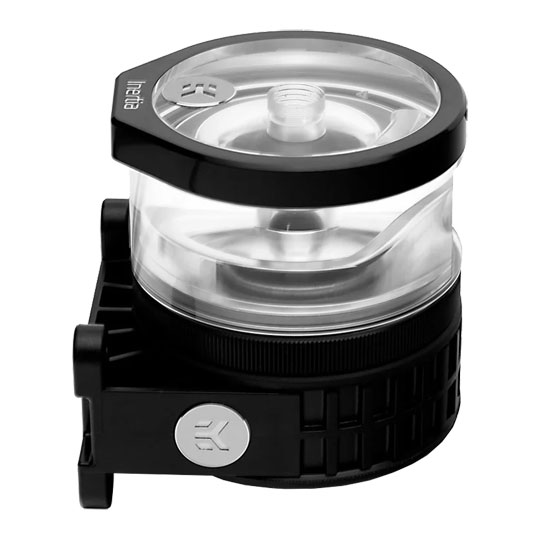

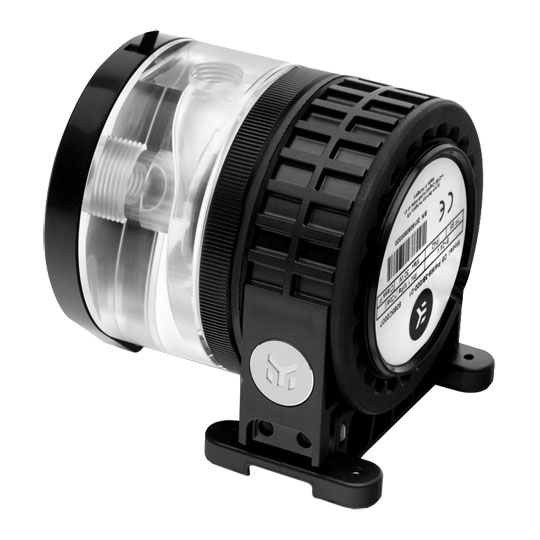

EK-Quantum Inertia D5 PWM D-RGB is a high-performance liquid cooling standalone pump, built around the market-proven Genuine D5 water pump and the new Quantum Inertia top with an advanced vibration-reducing mounting clamp. This unit offers increased hydraulic performance (up to 15%) compared to the original factory top and it comes with a pre-installed 3-pin 5V D-RGB LED strip for sophisticated illumination. This pump features a single inlet (on the top) and a single outlet port (on the side) for the installation of two standard G1/4 threaded fittings/barbs.


Premium Materials

The top is made of quality CNC-machined cast acrylic material with a black ring to cover the LED hotspots as the proper LED implementation is one of the main focus points of EK.

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. It is rated for 50.000 hrs MTBF at 25°C ambient!


RGB Sync Compatible

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin addressable LED connector is to be aligned with the +5V marking on the D-RGB(A-RGB) header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.


Greater Usability

The new Quantum Inertia D5 pump volute/body system features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. A special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration-induced noise. Additionally, horizontal and vertical positioning is supported for easier tube routing possibilities.

EK-Quantum Inertia D5 PWM D-RGB can also be upgraded with any of the UNI brackets for additional mounting options.

Features
Technical specifications:
• Motor: Electronically commuted spherical motor.
• Rated voltage: 12V DC.
• Power consumption: 23W.
• Maximum pressure head: 3.9m.
• Maximum flow: 1500L/h.
• Maximum system temperature: 60°C.
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal.
• Power connector: 4-Pin Molex 50cm cable length.
• Signal cable: 4-Pin PWM FAN connector 60cm cable length.
• D-RGB cable length: 50cm.
• D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground).

Operational regime:
• PWM duty cycle: ~ 20-100%.
• Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present.

Enclosed:
• EK-Quantum Inertia D5 PWM D-RGB (incl. EK-D5 PWM G2 pump motor) - cables with a black sleeve.
• EK-Quantum Inertia D5 PWM D-RGB Pump Mount.
• Self-adhesive mounting hole pattern sticker.
• Mounting mechanism (incl. required Allen keys).
• EK-Loop Multi Allen Key (6mm, 8mm, 9mm).
Specifications
Core Specifications
Edition Quantum Inertia D5 PWM D-RGB
Product Type Pump
Pump Specifications
Pump Yes
Pump Type Xylem D5 PWM
Max. RPM
Max. Hydraulic Performance 1500 L/h
PWM Duty Cycle Range 20-100% %
Pump Voltage 12 V
Max. Power Draw 23 W
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting D-RGB
Controller
Power Connector 1 x 4-pin Molex (AMP Mate-N-Lok)
Power Cable Length 600 mm
Signal Connector
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature 60 °C
Compatible Metals
Compatible Coolant
Mounting System
Installation Locations
Product Colour Black
Dimensions
Weight
Additional Information
Scan Code LN108792
Model Number 3831109821930
GTIN 3831109821930
