EK-DDC 3.2 PWM 12V PWM Pump

EK-DDC 3.2 PWM 12V PWM Pump

Thumbnail 1 : EK-DDC 3.2 PWM 12V PWM Pump Thumbnail 2 : EK-DDC 3.2 PWM 12V PWM Pump
Scan code: LN59971 Manufacturer code: 3831109862636
£59.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

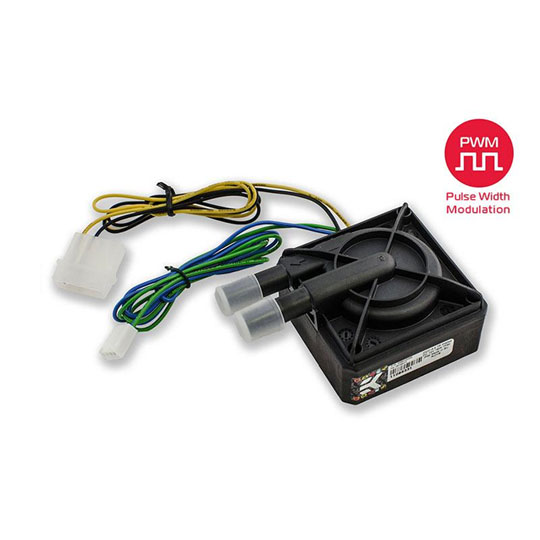

Product Overview This pump features 3/8" (10mm) non-removable plastic barbs to support any 12mm ID tubing and is compatible with any EK-DDC X-TOP pump top and X-RES series pump reservoir combo unit.

Despite a remarkably small footprint of 2.4" square, the pump features an astounding 5,2m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).

It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium. Features - Dimensions (W x D x H): 90 x 62 x 38 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Specifications
Core Specifications
Edition DDC 3.2 PWM
Product Type Pump
Pump Specifications
Pump Yes
Pump Type
Max. RPM
Max. Hydraulic Performance
PWM Duty Cycle Range
Pump Voltage 12 V
Max. Power Draw 18 W
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads
Temperature Monitoring
LED Lighting
Controller
Power Connector 1 x 4-pin Molex (AMP Mate-N-Lok)
Power Cable Length
Signal Connector 1 x 4-pin fan header (KK254)
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature 60 °C
Compatible Metals
  • Aluminium
  • Stainless Steel
Compatible Coolant
Mounting System
Installation Locations
Product Colour Black
Dimensions 90 x 38 x 62 mm (WxHxD)
Weight
Additional Information
Scan Code LN59971
Model Number 3831109862636
GTIN 3831109862636
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
EK-DDC 3.2 PWM 12V PWM Pump is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from Unreliable These pumps are fine when they work, the problem is they don't do that for very long! The first one lasted about 9 months and it's replacement just 4. When they go bad they fail to start up when you power on the pc, no strange noises or warning of any kind, just a little brrr as they try to start spinning again and again. Worst thing is, unless you have some way of monitoring flow you don't even know it's happening! Avoid at all costs and EK should be ashamed of themselves selling these short lifespan units! Especially when the warranty is just one year!
