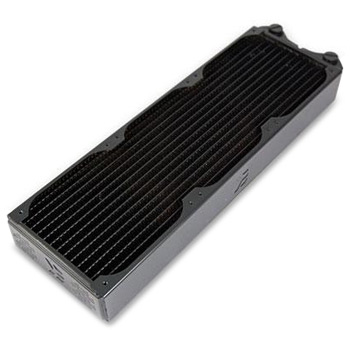

EK-CoolStream RAD XTC Triple 420 Radiator

EK-CoolStream RAD XTC Triple 420 Radiator

Thumbnail 1 : EK-CoolStream RAD XTC Triple 420 Radiator EK-CoolStream RAD XTC Triple 420 Radiator : video thumbnail 1
EK-CoolStream RAD XTC Triple 420 Radiator : image 1
Scan code: LN35233 Manufacturer code: 3831109860151
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Finally EK is ready to offer you 140 series radiators designed for hardest enthusiasts. Radiator is optimized for maximum heat dispatching even at lowest fan speeds. Choosing EK-CoolStream RAD XTC will give your watercooling system a boost you needed to cool your hot hardware.

Quality at EK level and an optimal price-performance ratio make these EK-CoolStream RAD XTC radiators unique. The new radiators feature, besides their great design and high build quality, great cooling performance.
The copper fins are specially designed for Ultra-silent fans (with low Airflow). The parallel coolant channels reduce flow resistance to a minimum. On both sides of the radiator the M3 threads are integrated to allow fan installation on both sides and radiator mounting.

The radiator has integrated G1/4" threads, allowing installation of virtually all common fittings.

Please note: Over-tightening of the screws may damage the radiator. Always take care that the screws do not damage the radiator. Damages of the product because of improper use are not covered by the warranty!
Features Technical details:
Material:
- Copper fins
- Brass chambers

Dimensions (LxWxH): 460x146x55mm

Connection threads: G1/4"

Fins/inch (FPI): 10
Fins/cm (FPC): 3,85

Weight: Approx. 1480g

Fan installation: 4 x M3 threads on both sides each (for 3x140mm fan each)
Pressure tested: 1.5 bar

Enclosed:
1x EK-CoolStream RAD XTC 480 (Triple) radiator
4x M3 x 30mm screws
4x M3 x 35mm screws

Important: The included screws may be too long for some applications. Always be sure to screw them in only so far that the radiator is not damaged.
