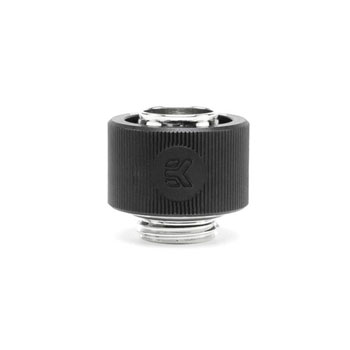

EK-ACF Water Cooling Hose Fitting 12/16mm - Elox Black

EK-ACF Fitting 12/16mm Hose Fitting, Soft-tube compression fitting, For use with flexible soft tubing, Black

Thumbnail 1 : EK-ACF Water Cooling Hose Fitting 12/16mm - Elox Black Thumbnail 2 : EK-ACF Water Cooling Hose Fitting 12/16mm - Elox Black Thumbnail 3 : EK-ACF Water Cooling Hose Fitting 12/16mm - Elox Black
Scan code: LN82601 Manufacturer code: 3831109846568
£4.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview EK-ACF Fitting (Advanced Compression Fitting) is a soft-tube compression fitting, designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.

EK-ACF Fitting is a more secure variant of the tubing fitting connector as the locking ring prevents flexible tube to be pulled out of the fitting by compressing the tubing wall underneath the ring. Such fitting does not require any hose clamp or similiar substitute.

The barb is made of nickel-plated CNC machined brass and the ring is made of anodized CNC machined aluminium. Fittings feature quality rubber O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.

These fittings sport low-profile design hence it is mandatory to secure the fitting barb using Allen Key 9mm (not included, available for separate purchase) to prevent skin damage to the finger tips - barb has no finger grip surface.

Features • thread: G1/4" BSP; 4.5mm male thread lenght
• supported tube: ID/OD 7/16" / 5/8" (roughly equals to 12/16mm)
• outer diameter of a fitting: 22mm
• installed height: 15.6mm
• compatible tubing: PVC, EPDM, Norprene, silicone, most types of flexible tube

PLEASE NOTE:

This fitting is to be used only with correctly sized tubing!
Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent water block damage!
Do not use any tools to secure locking ring to the fitting barb.
This product should NOT be installed with any aluminum Fluid Gaming parts!
Specifications
Edition
Type Softline Compression Fittings
Colour Black
Construction
Port Thread G1/4"
Inner Diameter (ID) 12mm
Outer Diameter (OD) 16mm
Compatible Materials Nickel-Plated Brass
Compatible Coolants
Compatible Tubing & Fittings
  • Rotary 45° Adapters
  • Rotary 90° Adapters
Includes
Additional Information
Scan Code LN82601
Model Number 3831109846568
GTIN 3831109846568
