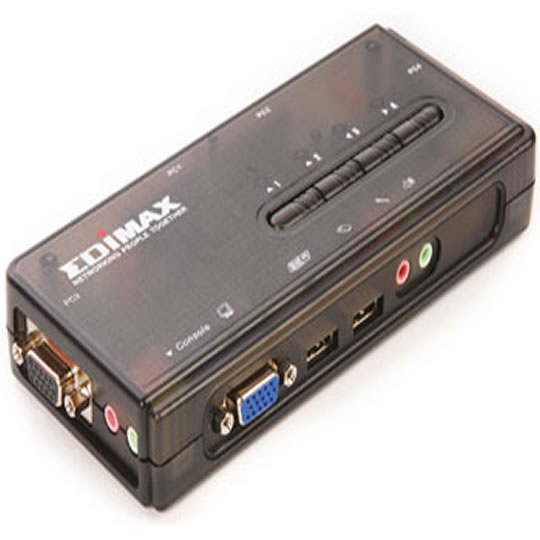

Edimax EK-UAK4 4port USB KVM switch with Audio & Mic function, 4 cables

Edimax EK-UAK4 4port USB KVM switch with Audio & Mic function, 4 cables

Scan code: LN19015 Manufacturer code: EK-UAK4 Request call
End Of Life
High End
Product Overview EK-UAK4 Slim Desktop KVM Switch is a very slim and compact KVM Switch that is specifically designed for individual and SOHO use. You can use it to control four computers using only one USB keyboard, video and USB mouse.
EK-UAK4 supports hotkeys, push button and auto scan. Its completed keyboard and mouse emulation for simultaneous PCs boot-up process. The Hot Plug feature let you connect/disconnect PCs without powering down PCs.
EK-UAK4 provides Audio and Microphone switching function for SOHO and office desktop multimedia application. It allows you to access, control, boot and reboot four USB enabled multimedia computers using only one keyboard, video, mouse and optional speaker set and microphone.

Click here to view the Edimax shopping guide! Features • Supports High Video Resolution up to 2048 x 1536.
• Supports up to 350MHz Bandwidth.
• Supports USB Keyboard and Mouse.
• Supports Audio and Microphone Switching
• Supports Auto Scan (Programmable).
• Supports Hotkey and Push Button to Switch among PCs.
• Includes KVM Cables to save your cost.
• No Power Adapter and Software Required.

• Max PC Connections: 4
• PC Side Connection: 4 x HDB 15-pin female (integrated with USB) 4 x USB Type Mini B (for audio & mic)
• Console Side Connection: 2 x USB Type A (Keyboard & Mouse) 1 x HDB 15-pin female 1 x Audio 3.5mm jack 1 x Mic 3.5mm jack
• PC Selection : Hot Keys / Push Buttons / Switching Software
• PC Ports LED: 4
• Scan Intervals: 10~60" (with an increment of 5")
• Max. Resolution: 2048 x 1536
• Max. Bandwidth: 350MHz
• Operation info Temperature: 0~50 °C / Humidity : 0~90%, Non-Condensing
• Weight (g): 191g
• Dimension: 96 x 61 x 24 mm
