ECS LIVA Z3 PLUS i3 Barebone Compact Mini PC Kit

ECS LIVA Z3 PLUS, Intel Core i3-10110U, DDR4 SO-DIMM, 1x M.2, 3x USB 3.1 Gen1, USB Type-C, 2x GbE, HDMI/mDP, Barebones
MORE INFO
MORE INFO

Scan code: LN133830 Manufacturer code: 95-699-MS5095
£239.99
Free delivery on this item
Order now and get it tomorrow, Tue 13th May
Add To Basket
Get it Tomorrow, 13 MayIn stock
Pay in 3 interest-free payments of £80.00

Email me when the availability or price changes

  • By DPD On 13th May Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

Lightning Speed

Intel® Comet Lake-U 10th Gen Intel® Core™ processors feature evolutionary enhancement on the performance and up to 6 cores allowing you to do daily computing task smoothly and more efficiently.


Blazing Connectivity

802.11ax MU-MIMO provides higher connection speeds up to 10GBps, greater efficiency of data transmission to stream high quality movies and YouTube videos among multiple devices simultaneously.


Vibrant Visuals

4K resolution at 60 fps gives four times as many pixels as the commonly used 1920 x 1080 resolution presenting much more vivid and clear visuals.


Features


• Intel Comet Lake-U 10th Gen Core Processors.
• 2 x SO-DIMM DDR4 2666MHz up to 64GB.
• 1 x M.2 2280 SATA/PCIe SSD.
• 3 X USB 3.1 Gen 1 (Type A), 1 X USB 3.1 Gen 1 (Type C), 1 X Audio Jack (Combo), 1 X DC_IN, 2 X GbE LAN, 1 X HDMI-out,1 X mini DP.
• Support Intel Optane Technology.
• 802.11ax Wireless Connectivity.
• Digital Microphones for Voice Recognition.

Specifications
Edition LIVA Z3 PLUS
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i3
CPU Model Intel Core i3-10110U
Architecture Comet Lake 10th Gen
Manufacturing Process 14 nm
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.1 GHz
Burst Frequency 4.1 GHz
CPU Cache 4MB
CPU Cooler
TDP 15 W
CPU Socket 1200
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 ECC SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2666
Max. Memory Capacity 64GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x M.2, 22-80
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O 1 x Wireless LAN Module
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 2 x Intel (Gigabit LAN)

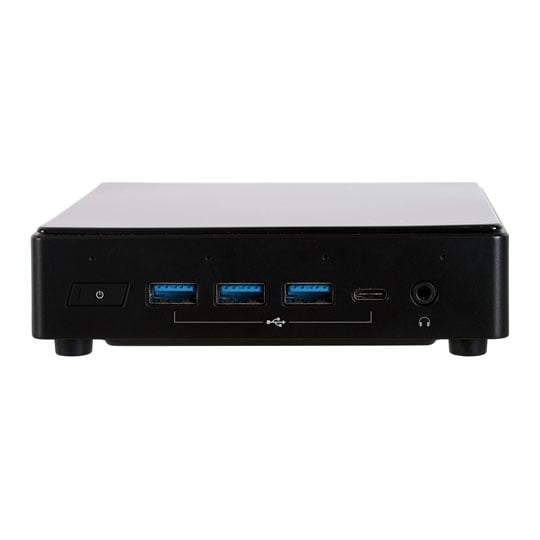

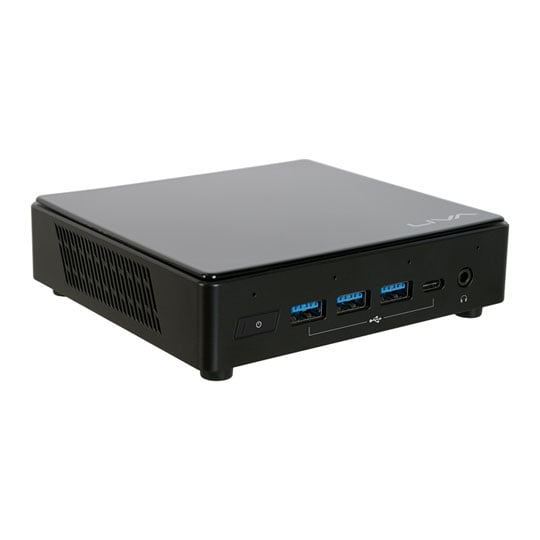

Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 3 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C

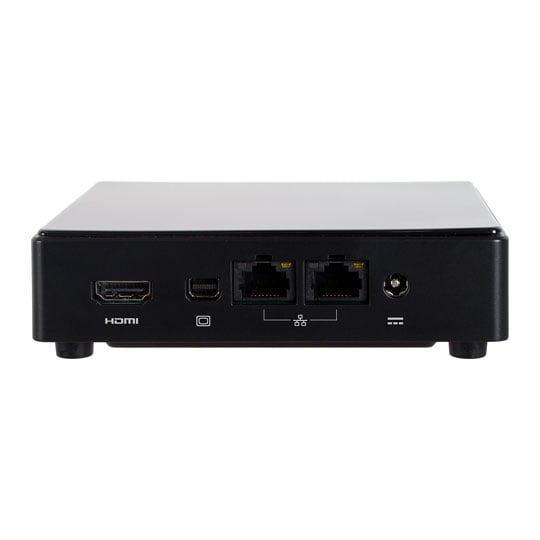

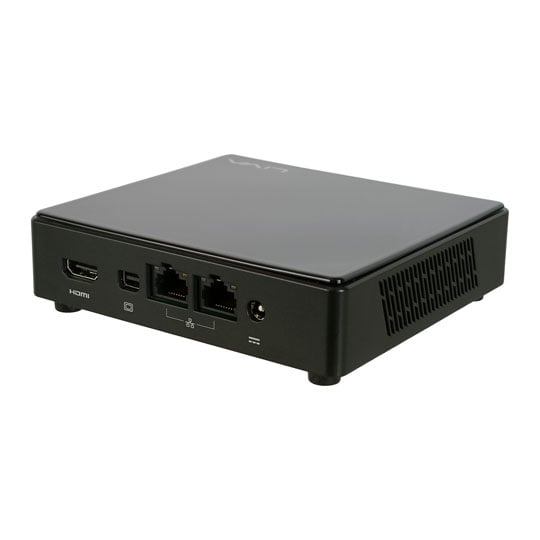

Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI
  • 1 x Mini DisplayPort
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 117 x 128 X 35 mm (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN133830
Model Number 95-699-MS5095
GTIN 4711064007930
