Scan code: LN45702 Manufacturer code: IDE-SATA-SI

Dynamode Bi-directional SATA to IDE Adapter 3GB/s

Dynamode Bi-directional IDE to SATA Adapter

Scan code: LN45702 Manufacturer code: IDE-SATA-SI
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Jun 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Frequently Bought Together
Product Overview Looking for complete flexibility when adding your existing SATA or IDE interface Hard Disk(s) to your system?

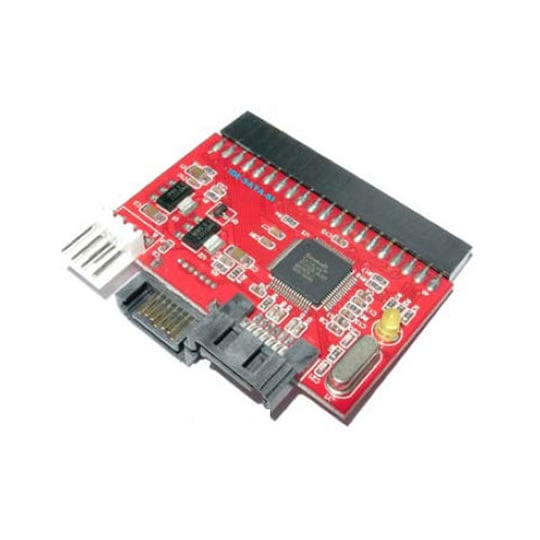

Introducing the new Dynamode IDE-SATA-SI. A discrete, PCB level adapter which simply connects to the rear interface of any SATA or IDE Hard Disk or other Mass Storage Device (MSD) without taking up valuable space inside your Desktop or Server chassis.
Allowing 'Boot Time' level Storage attachment, the IDE-SATA-SI needs no software to be installed and converts SATA (Serial ATA) to ATA (Parallel ATA) and vice versa, quickly and with minimal fuss. Comes embedded with dual SATA Ports, one ATA/133 IDE type interface and a single 4-Pin Power Connector.
Fully bi-directional in operation the device also comes with a unique status LED showing data activity together with bundled SATA-SATA data cable and 4-Pin to standard 'Molex' Power cable.
Features • Discrete PCB for direct Storage Device attachment
• Needs no Drivers, converts at 'Boot Time'
• Single 40-Pin IDE Port; Two SATA Ports
• Single 4-Pint Power Connector
• Converts SATA to Parallel ATA
• Converts Parallel ATA to SATA
• Supports ATA100/133 Specification
• Fully compliant with Serial ATA Specifications
• Unique activity LED on PCB
• Bundled 'Molex' Power Cable and SATA Data Cable

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

TekSpek Guides
Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

Date Issued: 14th Jun 2008

In this guide we will be examining a popular method used for increasing the performance and reliability of your hard drives and data storage

Read More

Dynamode Bi-directional IDE to SATA Adapter is rated 1.7 out of 5 by 7.
Rated 3 out of 5 by from Description is wrong The description given for this unit is incorrect and the documentation (if you can find any), is even worse.. It will not change a 40 pin motherboard connector into two SATA connectors. It is in fact for changing a single 40 pin (motherboard) IDE connector to a single SATA drive. Or a single SATA (Motherboard) connector to a 40 pin hard drive. On the units that I have, the give away is the text underneath the SATA connector. And yes, you do have to connect power to the board or it will not work at all. While they did make an IDE to 2x SATA adaptor in the past, they´ve long since stopped making them. ( The two port one I still have in use came from Lycom.)
Date published: 2018-06-15
Rated 3 out of 5 by from How I got mine to work I used a DVD-ROM drive Your device MUST be set to Master, as I am using a DVD-ROM drive, I plugged in a known good S-ATA cable to the top S-ATA port, and ensured the power connector was in correctly. If the LED doesn't light up on boot - something isn't right. I had problems when I plugged my disc drive into the other S-ATA port. This may be for hard disks, I do not know. The board goes in components facing up. There is a notch which you should line up. All pins must be connected evenly and fully. Ensure your S-ATA ports are enabled, mine are set to IDE mode, but I haven't tested AHCI yet. I'm not plugging in anything else for a while. I am using S-ATA 3. BIOS detected it and thus the OS will too. All it does is translate serial into parallel the device can recognise. Hence why no drivers are required. There may be a little performance drop - but I'm not bothered about that.
Date published: 2018-04-05
Rated 1 out of 5 by from IDE/SATA Adaptor Bought two. No instructions included. First one powered up ok but computer would not recognise a drive in either configuration. Leds would not even light up on second. Binned both, complete waste of money. I'm surprised at Scan selling junk like this: its the only time I've been unlucky in everything I've bought from them.
Date published: 2017-02-25
Rated 1 out of 5 by from didn't work Did not work at all. I knew from other reviews that the documentation was poor and that some had issues using it for optical drives but wanted it for a hard drive. It did nothing, did not show up in the BIOS and neither of the LEDs illuminated when powered. I'm not sure if they are supposed to light up as there are no instructions, as other reviews have mentioned, but I am assuming they were put there for some reason. I've not sent it back as by the time I've paid postage and taken the time to request the return and go to the post office it hardly seems worth it. Maybe I'm just being lazy but since I got an email asking for a review I thought I would share my experience and based on this I suggest finding an alternative.
Date published: 2014-03-24
Rated 2 out of 5 by from No instructions and only works in some circumstances. I purchased two to allow me to use old PATA devices with my new SATA only motherboard. There were no instructions. After a bit of trial and error with the connections, I got the old hard drive working perfectly. However, I was unable to get the old DVD writer working at all. I thought one adapter might be faulty so swapped them around but the hard drive still worked and the DVD writer still didn't. Another point to note is that you will need both power to the device and power to the adapter so you might need to also buy a molex splitter.
Date published: 2014-01-07
Rated 1 out of 5 by from Couldn't get this to work! I wanted a solution for my old IDE DVD+-RW drive, as there was no IDE ports on my new Z87 motherboard. Despite trying every combination possible, including jumper settings on the DVD drive, the most I could get out of it was that the light came on, and the drive was not detected.
Date published: 2013-09-03
Rated 1 out of 5 by from Did not do as it said it would Used 2 modules in IDE mode to enable 4 SATA connections. Would only enable 1 SATA port on each module
Date published: 2013-08-07
