10‑Channel Compact Power‑Mixer

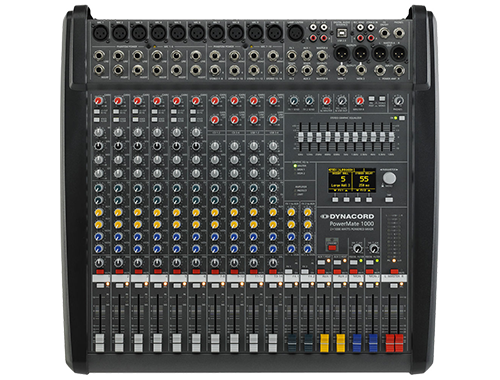

Dynacord - PowerMate 1000-3

Dynacord - PowerMate 1000-3

THE BEST IN GERMAN DESIGN & BUILDThe PowerMate compact power mixers incorporate profound know‑how, based on our research, development and inter‑communication with our customers in the professional audio market, for decades.

It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand‑alone device. The PowerMate is a real all‑rounder for almost all applications with maximum feature set at minimum size.

The mixing section starts with 16 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate‑reverbs. Further, each preset can be edited and stored to 20 User memories.

The built in USB audio interface shares 4 playback and four recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24‑bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class‑D output stage, it’s very efficient and lightweight, too. An optional speaker protection allows limitation of long‑term power without giving up dynamics.

Finally, the slim housing is protected by a rugged plastic lid with integrated handle for easy transportation.

11-BandGraphic EQ

2 x 1000W RMSat 4ohms

100xFactory Effects

at a glance • Intuitive mixer with 10 input channels (6 Mic/Line + 4 Mic/Stereo-Line)
• Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
• 2 High-Quality editable effects, 100 factory and 20 user presets
• Lightweight (12.5 kg) road-ready package with extra-robust plastic cover-lid

suitability • A versatile powered mixer suitable for almost any application requiring power to passive speakers

The Tech Spec

Features Specification
Channels 6 x Mic/Line
4 x Mic/Stereo Line
Auxiliary 2 x Pre
2 x Post
2 x Pre/Post Switchable
Output Power Max Single Channel, Dynamic-Headroom, IHF-A:
Into 2.66 Ohms: 2 x 1600 W
Into 4 Ohms: 2 x 1250 W
Into 8 Ohms: 2 x 675 W
Max Single Channel, Continuous, 1 kHz, THD = 1%:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1150 W
Into 8 Ohms: 2 x 650 W
Max Midband, 1 kHz, THD = 1%, Dual Channel:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1000 W
Into 8 Ohms: 2 x 600 W
Rated, 20 Hz to 20 kHz, THD < 0.5%, Single Channel:
Into 4 Ohms: 2 x 900 W
Into 8 Ohms: 2 x 450 W
Maximum Output Voltage Power Amplifier, 1 kHz, No Load: 74 V rms
Maximum THD @ 1kHz MBW = 80 kHz:
MIC Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005%
Power AMP Inputs to Speaker L/R Outputs: < 0.075%
DIM 30 Power Amplifier, 3.15 kHz, 15 kHz: < 0.05%
IMD SMPTE Power Amplifier, 60 Hz, 7 kHz: < 0.15%
Frequency Response -3 dB, ref. 1 kHz:
Any Input to Any Mixer Output: 15 Hz to 70 kHz
Any Input to Speaker L/R Output: 20 Hz to 30 kHz
Crosstalk @ 1 kHz Amplifier L/R: < -85 dB
Channel to Channel: < -80 dB
Mute- and Standby-Switch Attenuation: > 100 dB
Fader and FX/AUX/MON-Send Attenuation: > 85 dB
CMRR MIC Input, 1 kHz: > 80 dB
Input Sensitivity All Level Controls in Max Position:
Microphone: -74 dBu (155 µV)
Line (Mono): -54 dBu (1.55 mV)
Line (Stereo): -34 dBu (15.5 mV)
CD (Stereo): -34 dBu (15.5 mV)
Power AMP Inputs: +8 dBu (1.95 V)
Maximum Level Mixing Desk:
Microphone Inputs: 11 dBu
Mono Line Inputs: 31 dBu
Stereo Line Inputs: 31 dBu
All Other Inputs: 22 dBu
All Other Outputs: 22 dBu
Input Impedances Microphone: 2 Kilohms
CD Input: 10 Kilohms
All Other Inputs: > 15 Kilohms
Output Impedances Phones: 47 Ohms
All Other Outputs (Balanced/Unbalanced): 150 Ohms / 75 Ohms
Equivalent Input Noise Microphone Input, A-Weighted, 150 Ohms: -130 dBu
Noise Channel Inputs to Master A L/R Outputs, A-Weighted:
Master Fader Down: -97 dBu
Master Fader 0 dB, Channel Fader Down: -91 dBu
Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -83 dBu
Signal / Noise Power Amplifier, A-Weighted, 4 Ohms: 105 dB
Output Stage Amplifier: Class-D
Equalization LO Shelving: ±15 dB / 60 Hz
MID Peaking, Mono Inputs: ±15 dB / 100 Hz to 8 kHz
MID Peaking, Stereo Inputs: ±12 dB / 2.4 kHz
HI Shelving: ±15 dB / 12 kHz
Master EQ 11-Band (63 Hz, 125 Hz, 250 Hz, 400 Hz, 630 Hz, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 12 kHz): ±10 dB / Q = 1.5 to 2.5
Filter LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct. Voice Filter, Mono Inputs: Switchable Feedback Filter, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB Speaker Processing: LPN, Switchable
Effects Type: Dual Stereo 24/48-Bit Multi-Effects Processors Effects Presets: 100 Factory + 20 User, Tap-Delay Remote Control: Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Channels: 4 x Inputs / 4 x Outputs
AD/DA Conversion: 24-Bit
Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
PC Interface: USB 2.0, Female Type-B
Peak Display: 6 dB Before Clip
MIDI Connectors 1 x 5-Pin DIN, Input / Output
Power Control Output: Adjustable Longterm RMS Limiter
Protection Mixer Outputs (Relay Controlled): MON 1, MON 2, MASTER A Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On Delay, Back EMF Switching Mode Power Supply (µC controlled): Inrush Current Limiters, Mains Over/Undervoltage, Mains Overcurrent, High Temperature
Cooling Continuous Speed-Controlled Fans
Phantom Power Switchable: 48 VDC
Power Requirements SMPS with Auto Range Mains Input: 100 to 240 VAC, 50/60 Hz
Power Consumption At 1/8 Maximum Output Power, 4 Ohms: 450 W
Safety Class I
Ambient Temperature 40 to 105°F / 5 to 40°C
Dimensions 20.1 x 6.5 x 22.5" / 510.5 x 164.5 x 571.5 mm (with Lid) 19 x 5.3 x 17.5" / 483 x 135 x 443.7 mm (Rackmount)
Weight 27.6 lb / 12.5 kg (without Lid)
30.9 lb / 14 kg (with Lid)
