Dreadbox - Nostalgia 3 Stage Delay

dreadbox nostalgia

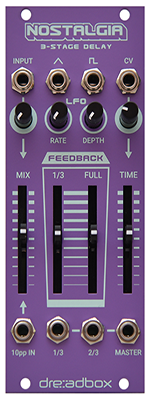

3 Stage Hybrid Delay Dreadbox’s new Nostalgia Module is a 3-stage hybrid delay circuit, modelled after the infamous and iconic ‘EREBUS’ echo/delay circuitry, with a total of 3 delay lines wired in a series allowing you to create vast sonic textures drenched in delay with a huge decay time of up to 30 seconds. The Nostalgia features a duo of feedback controls, one of which offers control over the separate stages and the other which offers full control over all 3 stages simultaneously. The Nostalgia also features a built-in dual wave LFO with both triangle and square wave outputs.

'Dreadbox - The Chromatic Modules'

Affordable, Colorful & Feature-Rich The Chromatic Modules is a new range from renowned Synth manufactures ‘Dreadbox’, a new colourful range with many features at just 10HP. The new entry-level products are much more capable than the classic entry-levek Eurorack modules. Dreadbox’s new range includes a performance VCO, an all in one filter/mixer/VCA, 3 stage delay, noise-crush filter, a dual modulator and a CV/audio manipulator.

dreadbox nostalgia

Specifications

  • 3 Stage Hybrid Delay based on the Erebus’s Circuit
  • Consisted of 3 echo circuits in series
  • Outputs for stage 1 and 2 (output level is 1/2 lower than the incoming signal)
  • 2 different Feedback controls for different stages
  • LFO with range
  • Voltage Controlled Delay Time with range from 30ms up to 1sec
  • Separate input for modular level signals
  • Separate input for signals up to guitar levels
  • Power Consumption: 117mA @ +12V , 25mA @ -12V
  • 35mm depth
  • 10HP
