Scan code: LN102137 Manufacturer code: EUDEMONIA

Dreadbox Eudemonia

Dreadbox Eudemonia - Filter/Mixer/VCA Module

Scan code: LN102137 Manufacturer code: EUDEMONIA
£79.00Item due on 05 December 2019
Pre order
Free Delivery
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Dreadbox - Eudemonia Filter-Mixer-VCA

dreadbox eudemonia

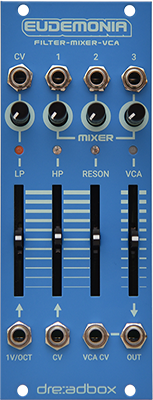

Analog Wave Generator Processor The Eudemonia takes it’s circuits inspiration from the circuits of the West Coast era, combining a 3 channel mixer, filter and VCA into 1 circuit, allowing you to make a pseudo low pass gate whilst controlling the filters and VCA on the same gate or envelope signal. Utilising 3 audio inputs, each with it’s own attenuators, a voltage addressable resonant low pass filter, a non resonance high pass filter and an easy to use, but hugely powerful VCA, this module from Dreadbox has everything you could need to patch into a drum bus and end of signal chain.

'Dreadbox - The Chromatic Modules'

Affordable, Colorful & Feature-Rich The Chromatic Modules is a new range from renowned Synth manufactures ‘Dreadbox’, a new colourful range with many features at just 10HP. The new entry-level products are much more capable than the classic entry-levek Eurorack modules. Dreadbox’s new range includes a performance VCO, an all in one filter/mixer/VCA, 3 stage delay, noise-crush filter, a dual modulator and a CV/audio manipulator.

dreadbox eudemonia

Specifications

  • Analog Wave Generator Processor
  • 3 to 1 mixer
  • Dual Filter in series
  • 24dB resonant Low Pass Filter
  • 18dB non-resonant High Pass Filter
  • Exponential VCA with peak indicator (above 10pp)
  • LED indicator for all controls to illustrate the current CV Sum
  • Power Consumption: 61mA @ +12V , 69mA @ -12V/li>
  • 35mm depth
  • 10HP
