Dreadbox - 'Antidote' Karplus-Strong Strings Module

Dreadbox - 'Antidote' Karplus-Strong Strings Module, 5 Octaves (from C0 up to B4), Analog Circuit, Precision Tracking

Scan code: LN112095 Manufacturer code: ANTIDOTE
£89.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Fri 21st Jan
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Jan to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Dreadbox - 'Antidote'
Karplus-Strong Strings

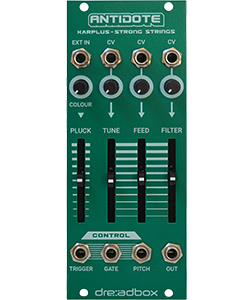

Dreadbox Antidote

Larger Than Life Analog ToneThe Dreadbox Antidote is a Karplus-Strong Strings generator. It comes in a compact enclosure, purpose built for a Eurorack set up and offers rich synthesised string sounds by using short and sudden sounds to deliver a short delay. You can also change the pitch of the note by editing the delay time. The Antidote was designed with the help of Kevin Karplus and Alex Strong, equipped with a 512-stage BBD delay chip, this provides you with five-octave note tracking and a natural analog tone.

Also included is an external audio input, giving you the options for additional chorus, flangers and resonator effects when using an external LFO. The Feed, Filter and Tune controls can all be CV controlled and the Colour option allows you shape the sounds to sound anything from subtle and dark to big and bright. This module, like the rest of the Chromatic Modules series, could be used as an intuitive and simple start for those wanting to get involved in Eurorack modules without costing too much or over complicating things, or be used as a standalone effect with your current set up.

At A Glance • Full Karplus-Strong Synthesis Voice
• Analog circuit based on a 512stages BBD chip
• On board Noise Generator with a variable decay (pluck)
• Two Analog Low Pass Filters (one in the input and one in the output)
• Precision tracking over 5 octaves (from C0 up to B4)

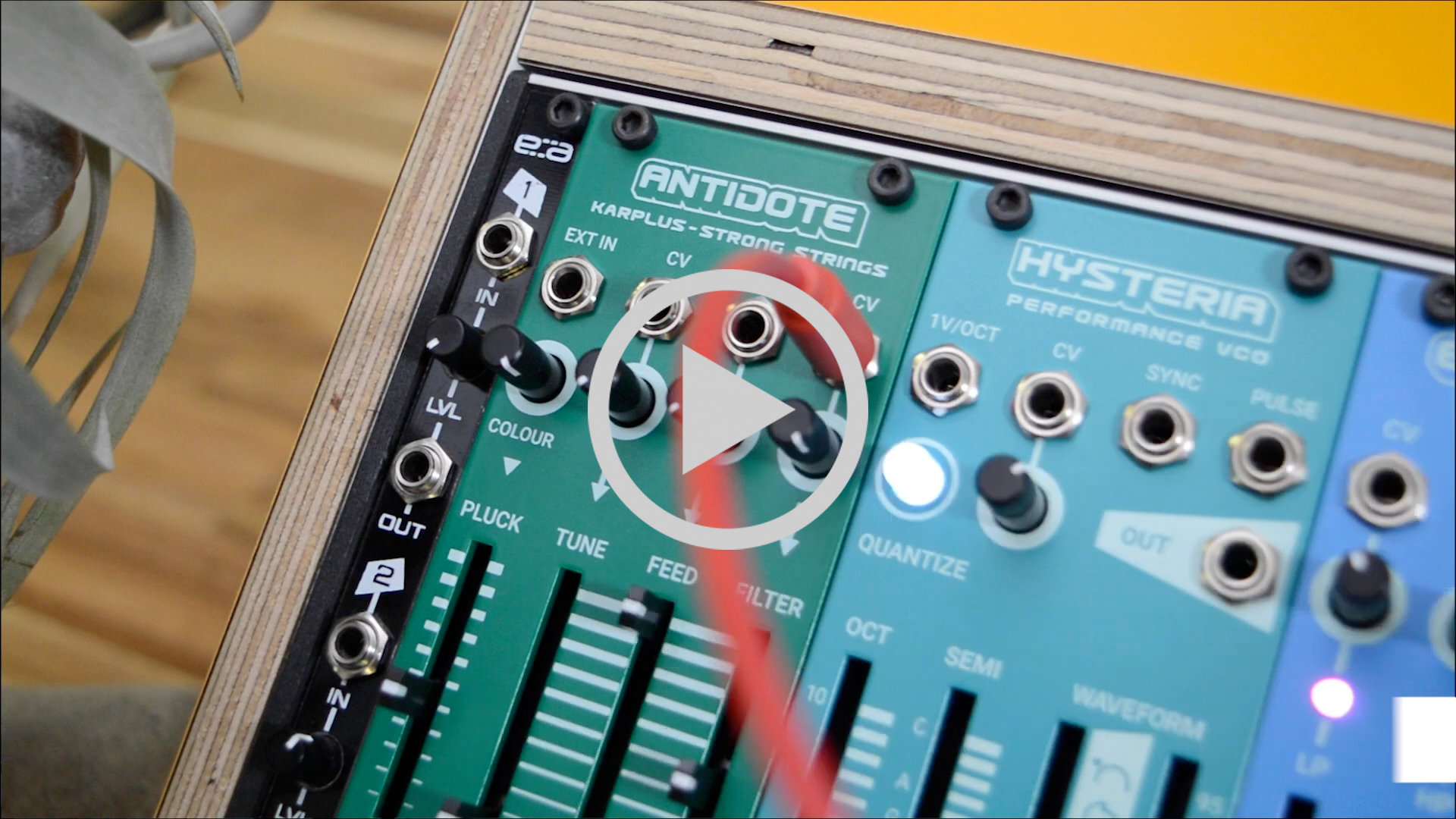

Chromatic Modules by Dreadbox // Antidote & Euphoria

The Tech Spec

Specification Description
Processor Type Full Karplus-Strong Synthesis Voice
Inputs +5V/-5V audio input; 500mV instrument input
Outputs 3.5mm jack connectors
Frequency/delay time range C0 @16,35hZ (61ms) up to B4 @493,9hZ (2,1ms)
Current consumption [email protected]+12v , [email protected] -12v
Dimensions Width: 10TE; Depth: 35mm
