DrayTek Vigor 2926n Wireless Dual WAN Firewall Router

DrayTek Vigor 2926n Wireless Dual WAN Router Firewall with 5 Port GbE Switch

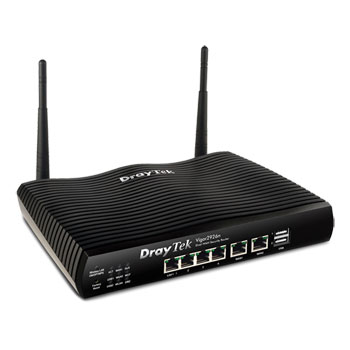

Thumbnail 1 : DrayTek Vigor 2926n Wireless Dual WAN Firewall Router
DrayTek Vigor 2926n Wireless Dual WAN Firewall Router : image 1
Scan code: LN101312 Manufacturer code: V2926N-K
£207.98
From £8.67 / month (APR 0%)
Monthly Payment: £34.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £207.98
Total inc. interest: £207.98
Monthly Payment: £17.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £207.98
Total inc. interest: £207.98
Monthly Payment: £11.56
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £207.98
Total inc. interest: £207.98
Monthly Payment: £8.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £207.98
Total inc. interest: £207.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Vigor 2926 series is our dual-Ethernet WAN firewall for load-balancing or failover. It's also a fully featured firewall, VPN concentrator and content filtering device.

-WAN: Dual Ethernet, Dual optional USB 3G/4G
Can be centrally Managed by VigorACS
DrayDDNS Service Support - New!
Hotspot Web Portal - New!
IPv4/IPv6 Dual-Stack
Dual-Band Wireless Features (Vigor 2926ac)
Wireless Management of compatible DrayTek APs
High Availability (Hardware failover) - New!
5-Port Gigabit Ethernet LAN Switch*
Up to 8 Private LAN Subnets - New!
Larger Subnets - up to 1022 IPs per subnet (LAN1-3) - New!
Temperature Monitoring (optional Thermometer)
SMS (Text Message) Alert
VLANs (Port, 802.1q & Wireless)
Content Filtering (by keyword, data type or category)
Internal RADIUS Server
LDAP Integration for VPN and user access
Quality of Service (Layer 2&3, 802.1p & TOS/DCSP)
Up to 32 VPN tunnels for LAN-to-LAN or teleworkers
VPN Trunk/Backup to remote sites
SSL VPN - Tunnel or Proxy (25 users)
USB Port for Printer, memory stick or 3G/4G/LTE Modem
Optional VigorCare Available

This latest router series includes support for professional features such as VLAN tagging, Gigabit Ethernet, built-in wireless LAN (Vigor 2926n or Vigor 2926ac). An alternative WAN connectivity is by a USB 3G/4G/LTE cellular modem which can be your primary WAN feed, backup or load-balanced with your fixed line.

This latest router series includes support for other professional features such as VLAN tagging, QoS (Quality of Service Assurance), High Availability, DNS Filter, Policy Based Routing, and User Access Control. Wired and Wireless models also include our new Hotspot features. If you deploy DrayTek Wireless Access Points, the Vigor 2926 can act as the Central Management Controller.

A 5-port Gigabit Ethernet switch on the LAN side provides high speed connectivity for your server, other local PCs or for uplink to a larger Ethernet switch. Comprehensive security features include content filtering, web application controls and an object based firewall management system. Port 5 is switchable with 'WAN2' to use it as an Ethernet WAN port instead of a LAN port*.
*requires f/w 3.8.8 or later, otherwise 5th Ethernet port is for WAN2 only.

Robust & Comprehensive Firewall
Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems. The DrayTek object-based firewall allows even more setup flexibility than ever, enabling you to create combinations of users, rules and restrictions to suit multi-departmental organisations. The Vigor 2926 also allows selective direction firewall rules of LAN to WAN, WAN to LAN or LAN to LAN/VPN.

Central Management with VigorACS
The Vigor 2926 series (along with most other DrayTek routers, Access points and switches) can be centrally managed by our VigorACS central management platform. This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs manageing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues. Features Technical Specification (UK Hardware Spec.)

Physical Interfaces
LAN Ports (Switch)
5 X Gigabit Ethernet (1000Mb/s) Ports (Configurable Physical DMZ on Port4)
LAN Port 5 Switchable with WAN2 (req. f/w 3.8.8 or later)
WAN Ports:
WAN1 : Gigabit Ethernet (1000Mb/s) Ethernet
WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet for load balance and WAN failover
Switchable with LAN Port 5
WAN3 : USB 2.0 Port for 3G/4G Modem, thermometer or Printer
WAN4 : USB 2.0 Port for 3G/4G Modem or Printer
Wireless WAN - Wireless interface can provide WAN connectivity
Performance
Firewall: Up to 400Mb/s max
IPSec VPN: Up to 60Mb/s max
Load Balance/Failover Features
Outbound Policy-Based Load-Balance to direct traffic via:
NAT or Routing
WAN Interface
LAN Interface
Specific LAN Gateway
VPN Tunnel
IP-Based or Session-Based Load Balance modes NEW!
WAN Connection Fail-over
BoD (Bandwidth on Demand)
Configurable Load-Balance pool, specify WAN interfaces to load balance
WAN Budget
Wireless LAN Features ('n' and 'ac' Models Only)
2.4GHz 802.11n and 5GHz 802.11ac (Vigor 2926ac only)
2.4GHz 802.11n (Vigor 2926 'n' models)
Backward Compatibility for 802.11b/g (Vigor 2926 'n' models)
Backward Compatibility for 802.11a/b/g/n (Vigor 2926ac only)
Wireless Features on Vigor 2926ac:
802.11ac (5Ghz)
4x4 MU-Mimo (5Ghz)
Up to 4 Spatial Streams
TX Beam Forming
1733Mb/s (5Ghz) + 300Mb/s (2.4Ghz) Total Link Rate
Dual-band (2.4/5Ghz) simultaneous wireless
256QAM
Extended DFS frequency range
TX Beam Forming
Multiple SSID : Create up to 4 virtual wireless LANs (independent or joined)
Packet Aggregation and Channel Bonding
Optional Higher Gain or directional aerials available - Click Here.
Active Client list in Web Interface
Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces)
64/128-bit WEP Encryption
WPA/WPA2 Encryption
Switchable Hidden SSID
Restricted access list for clients (by MAC address)
Time Scheduling (WLAN radio can be disabled at certain times of day)
Time Scheduling for individual SSIDs
Access Point Discovery
WDS (Wireless Distribution system) for WLAN Bridging and Repeating
802.1x Radius Authentication
Wireless VLAN
Wireless Rate-Control
Automatic Power Management
802.11e WMM (Wi-Fi Multimedia)
Station Control, limit wireless client access time per day
Airtime Fairness NEW!
Band Steering NEW!
Wireless WAN mode for WAN2, switchable with Ethernet (Wireless models only) NEW!
WAN Protocols (Ethernet)
DHCP Client
Static IP
PPPoE
PPTP
BPA
Firewall & Security Features
CSM (Content Security Management):
URL Keyword Filtering - Whitelist or Blacklist specific sites or keywords in URLs
Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription)
Prevent accessing of web sites by using their direct IP address (thus URLs only)
Blocking automatic download of Java applets and ActiveX controls
Blocking of web site cookies
Block http downloads of file types :
Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
Time Schedules for enabling/disabling the restrictions
Block popular P2P (Peer-to-Peer) file sharing programs
Block Instant Messaging programs (e.g. IRC, Skype/Yahoo Messenger etc.)
DNS Filter: Use DNS to enforce categorisation
Web Portal
Multi-NAT (32 WAN IPs per WAN1 & WAN2)
DMZ Host
DMZ Port (via LAN port P1, switchable)
40 Port Redirection rules
40 Open Port rules (10 port ranges per rule)
Policy-Based Firewall
MAC Address Filter
SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
DoS / DDoS Protection
IP Address Anti-spoofing
E-Mail Alert and Logging via Syslog
Bind IP to MAC Address
User Management:
Up to 200 Profiles
Supports external authentication via LDAP or RADIUS
Per User Bandwidth and Time Quota
Schedule Control to delete or disable account automatically
Bandwidth Management
Quality of Service (QoS - For devices in the NAT subnets according to source or destination IP)
Guaranteed Bandwidth for VoIP
Class-based Bandwidth Guarantee by User-Defined Traffic Categories
Layer 2&3 (802.1p & TOS/DCSP)
DiffServ Code Point Classifying
4-level Priority for each Direction (Inbound / Outbound)
Bandwidth Borrowed
App QoS: Classify traffic by Application NEW!
Temporary (5 minute) Quick Blocking of any LAN Client
Bandwidth Limit (Shared or individual limit)
Smart Bandwidth Limitation (Triggered by Traffic / Session)
Session Limit
Network/Router Management
Web-Based User Interface (HTTP / HTTPS)
CLI ( Command Line Interface ) / Telnet / SSH
Web Console: Access CLI through Web Interface
Administration Access Control
Brute Force Protection
Configuration Backup / Restore
Configuration Import from Vigor 2920 and Vigor 2925
Built-in Diagnostic Function
Firmware Upgrade via Web Interface, TFTP, FTP
Logging via Syslog
Supports SmartMonitor (up to 50 IPs monitored)
SNMP v3 Management with MIB-II
TR-069
TR-104
Access Point Management: Centrally Manage up to 20 DrayTek VigorAPs
Switch Management: Centrallly Manage up to 10 DrayTek VigorSwitches NEW!
VPN Facilities
Up to 32 Concurrent VPN Tunnels (incoming or outgoing)
Tunnelling Protocols:
PPTP
IPSec
L2TP
L2TP over IPSec
DrayTek SSL
GRE NEW!
IPSec Features:
Internet Key Exchange : IKEv1 (Main and Aggressive mode) & IKEv2 NEW!
Security Protocols : AH mode, ESP mode
DiffieHelman (DH) Groups:
IKEv1 : 1,2,5,14
IKEv2 : 1,2,5,14,19,20,21
Encryption:
DES / 3DES (168bits)
AES (128/192/256bits) - Hardware-Accelerated
Authentication - Hardware-Accelerated:
MD5
SHA-1
SHA-256
IKE Authentication : Pre-shared Key or X.509 Digital Signature
DHCP over IPSec
NAT-Traversal (NAT-T)
Dead Peer Detection (DPD)
Port forwarding (Port Redirection, Open Ports) to remote clients connected via an IPsec LAN to LAN VPN
SSL VPN for teleworkers - Up to 16 simultaneous users. Proxy or tunnel
LAN-to-LAN & Teleworker-to-LAN connectivity
MOTP (Mobile One Time Password) for two factor authentication (2FA)
Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts
VPN Pass-Through
Network Features
Port-Based VLAN (Inclusive/Exclusive Groups)
802.1q VLAN Tagging
Port Mirroring
802.1X Port Authentication
Multi Subnet DHCP Servers with DHCP Relay
LAN Clients : Up to 1022 per subnet (for subnets 1-3)
Custom DHCP Option support
Dynamic DNS
DNSSEC support NEW!
DNS Transparent Proxy
DNS Caching
LAN DNS (supports CNAME)
NTP Client (Synchronise Router Time)
Call Scheduling (Enable/Trigger Internet Access by Time)
RADIUS Client
LDAP Client
TACACS+ Client
High Availability NEW!
Internal RADIUS Server NEW!
Microsoft™ UPnP Support
Maximum MTU 1534
Routing Protocols:
Static Routing (30 routes)
RIP V2
RIPng for IPv6 NEW!
BGP NEW!
Operating Requirements
Rack Mountable (Optional Vigor RM1 mounting bracket required)
Wall Mountable
Temperature Operating : 0 °C ~ 45 °C
Storage : -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 18 Watt Max.
Dimensions: L240.96 * W165.07 * H43.96 ( mm )
Operating Power: DC 12V (via external PSU, supplied)
Warranty : Two (2) Years RTB
Power Requirements : 220-240VAC
Specifications
Networking, Connectivity & Ports
Model
Form-Factor
Device Type N/A
Compatible Internet Connections
Network Connectivity
Network Ports
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols N/A
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
OS Support
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols N/A
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions
Weight
Additional Information
Scan Code LN101312
Model Number V2926N-K
GTIN 4712909123020
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan/Draytek
Telephone:
0845 527 7864 9:00am-5:30pm Mon/Fri
TekSpek Guides
Wi-Fi
Wi-Fi
Date Issued: 20th Oct 2008

Home networking let’s you do great things that aren’t possible with standalone PCs. Printers can be shared between PC, so there’s no need to buy one for each machine.

Read More

Port Forwarding
Port Forwarding
Date Issued: 20th Oct 2008

Port forwarding is a technique you’ll need to use to enable certain services if you’re using a router. If you don’t really care how it works, you can skip this section and just find out how to do it.

Read More

Broadband ADSL vs Cable
Broadband ADSL vs Cable
Date Issued: 20th Oct 2008

On the surface we’re asking a relatively simple question here: "What do I need to get my broadband Internet working?" Of course, it’s not quite as simple as that. Worry not, however, for this TekSpek covers both the differences between the two popular kinds of broadband and what you’ll need to get your home computer(s) connected up.

Read More

Wi-Fi Security
Wi-Fi Security
Date Issued: 19th Jun 2008

WiFi is a wonderful thing. You can take your laptop anywhere in your house and access the Internet, or access your network from the garden. However, it does introduce the grim possibility of somebody else doing exactly the same, without you ever knowing. This guide seeks to make you aware of various security terms and ideas associated with wireless networking and what you should consider when setting up a wireless network.

Read More

Home Networking
Home Networking
Date Issued: 26th Oct 2006

As a growing number of homes contain more than one computer, their users must find ways to network them. The primary purpose for creating a home network tends to be to provide Internet access to all computers within the house. There are other good reasons, however. These include enabling LAN gaming, data backups from one machine to another and the sharing of music within the home.

Read More

Reviews
Questions & Answers
