Product Overview

Flawless Mobile Audio

You’re on the run after some big news. You need to be quick and practical, but most importantly, you need to capture a great story.

Your smartphone records the video but you know that crystal-clear audio is essential. With the d:vice™ Digital Audio Interface your audience will clearly hear your message, even if you work in challenging situations. Pre-programmable, easy to use and inconspicuous, the d:vice™ allows you to record amazing sound so you can tell the full story.

Offering unprecedented audio quality for live and mobile journalists in the field, the d:vice™ MMA-A works together with any iOS device, Mac or PC computer. Broadcasting or recording crystal-clear sound anywhere in the world is easier than ever.

Journalists around the world are already using their smartphones to capture the news. It works fairly well because today’s phones are capable of taking high-quality pictures and videos. The component that is missing is high-quality audio. For news broadcasts, it is equally important to have audio quality that matches or exceeds the video for the message to be understood. This is exactly the challenge that the d:vice™ solves. When used with a DPA microphone, the d:vice™ is able to capture or stream audio in quality previously only available in the studio. When it’s not possible to have an experienced sound engineer on site, the d:vice™ can act as a ‘mini sound engineer in your pocket’.

Capture Your Sound - Anywhere

Strumming in the backyard? Jamming in the living room? It doesn’t matter when or where your creative juices start flowing, you can capture your unique sound like a pro. The d:vice™ Digital Audio Interface is a pocket-sized, easy-to-use audio recording tool. Connect it to your iPhone, or other iOS gear, and up to two DPA microphones, and you’re well on your way to capturing best-in-class audio outside the recording studio.

We’ve gathered a few examples across YouTube of how the d:vice™ is being used to capture amazing sounds on all types of instruments – in the living room, on the street, anywhere. (Thanks to all of these content creators for showcasing their fantastic talent with the d:vice™.).

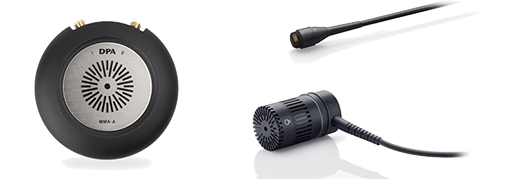

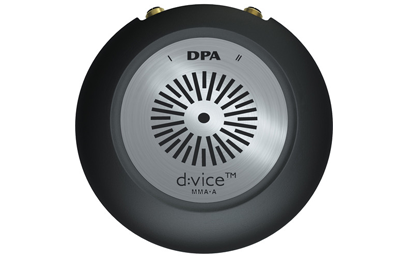

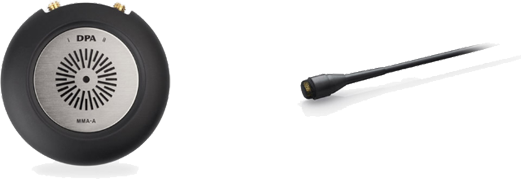

The d:vice™ MMA-A Digital Audio Interface is a high-quality, dual-channel microphone preamplifier and A/D converter that captures crystal-clear audio via your favorite recording / broadcasting apps. The d:vice™ can be used with all DPA microphones with a MicroDot connector. This flexibility allows any content creator to use the equipment for unexpected situations that might arise during the day. Whether it be a two-channel interview situation or a session of stereo recording ambience sound, the d:vice™ makes it easier for you to do your job.

The d:vice™ App Is Key

Download and install the d:vice™ App from the Apple App Store. It will work with most 3rd-party apps and therefore can be used in various situations including live broadcasts, as well as audio and video recordings.

The d:vice™ can be used right out of the box but to take full advantage of it, the d:vice™ App is needed. Below you can learn about the functionality of the app.


Use the GAIN slider to adjust input levels. Slide to the right to increase amplification, to the left to decrease. Make sure to keep an eye on the level meters when you are adjusting gain. The meters should stay in the green and yellow areas.


The FILTER button (low cut / high pass) cuts out unwanted, low-end frequencies (rumble) that can decrease the intelligibility of your recorded audio. In most cases we suggest using the FILTER button and if, for example, you are recording outside near a road with traffic, this setting is essential.


Use the MON button to send audio to your headphones so you can hear what you are recording. Please note that a headphone must be connected to the iOS device, otherwise the button will not activate and you’ll be prompted to connect a headset. If the headset includes a microphone it must be connected prior to connecting the d:vice™ via the Lightning connector. This is due to the iOS ‘last entry active’ nature of operation. (We recommend using a wireless headset when using an iPhone 7).


Use the LOCK button to block 3rd party apps from controlling gain. Gain settings can be controlled and saved on the d:vice™ for use in your favorite recording / broadcasting apps. The lock button also controls the setting of the low cut / high pass filter. Saved locked settings are automatically activated the next time you connect to the d:vice™.


If only one microphone is connected to either input I or II, MONO is chosen automatically. The mic input will be routed to both left and right output. Only one GAIN slider and FILTER button will be available in this mode. (When two microphones are connected, the MONO button changes to SUM. Learn more about SUM below.)


Use STEREO when you need to capture sound sources in stereo. Both microphones are controlled with one GAIN slider. Example: Ambiance sounds can be recorded in stereo using two mics that have the same sensitivity.

Important: When using STEREO you must use two mics that are optimized for stereo recording, for instance the specially-selected d:screet™ 4060 pair included in the d:vice™ Kit VIDMK-4060-S.


Use DUAL when the gain must be set individually for input I and II (for example, with two different microphone types or in situations where two people with different voice levels are to be recorded). The FILTER buttons are also individual in this situation.


Use SUM to make a mix of the two input channels. When two microphones are connected, the MONO button changes to SUM. This means that the two inputs will be sent to both output channels. Individual gain can be set for each input.


Presets store your preferred settings for specific microphone(s) and make your set up easier. After choosing your settings, create the preset by pushing the numbered preset button of your choice for three seconds. The next time you plug in the same mics, push your preset button and you are ready to go – no adjustments necessary.

• Dual-channel audio capture.
• Pocket-sized.
• Works with iOS devices, Mac or PC.
• Easy to use and store settings with the exclusive DPA App.
• Compatible with a range of recording / broadcasting apps.

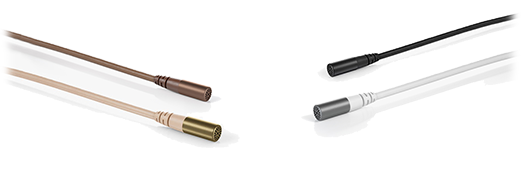

• Works with all DPA mics with a MicroDot connector.

Technical Specifications
• Compatible: with Mac / PC / iOS.

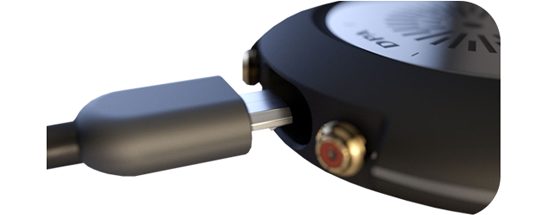

• Requirements: iOS version: 10 or later. Connection / Power: Lightning & USB 2.0.
• Made for: iPhone 7 Plus, iPhone 7, iPhone 6s, iPhone 6, iPhone 5, iPad Pro (12.9-inch), iPad Air, iPad Air 2, iPad mini 4, iPod touch (6th gen).
• Noise floor: -114 dBFS, A-weighted.
• Frequency range: 20-22 kHz ±0.2 dB (Fs = 48 kHz). 20-40 kHz ±0.2 dB (Fs = 96 kHz).
• Total harmonic distortion (THD): THD < -100 dB, 0.001% @ 1 kHz @ -10 dBFs.
• Dynamic range: Typ. 114 dB.
• Full Scale Output: 1 Vrms @ 0 dB Gain.
• Supported sample rates: 44.1, 48 (default), 88.2, 96 kHz. Sample rates can be set by 3rd-party app.
• Resolution: 24 bit.
• Filter (low cut / high pass): 2. Order @ 80 Hz, individual per channel.
• Weight: 50 g (1.8 oz).
• Diameter: 56 mm (2.2 in).
• Temperature range: 0°C to 45°C (32°F to 113°F).
• Current consumption: <100 mA (The d:vice™ gains power via the apparatus it is connected to. This equates to approx. 6-7 hours of audio capture tested on a new iPhone 6 or 7).
Computer Interface Type
  • Lightning
  • USB 2
Analogue Inputs (Total) 2
Analogue Outputs (Total)
Connections (Input) 2 x MicroDot
Mic Preamps (Max) 2
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 96 kHz
Bit Resolution 24
iPad Compatible Yes
Dynamic Range 114 dB
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN92093
Model Number VIMMA-A
GTIN 5713055010546
