DPA CORE 4099 Classic Touring Kit (Loud SPL Version)
Scan code: LN92081
Manufacturer code: KIT-4099-DC-4C
£2,160.00
DPA CORE 4099 Classic Touring Kit (Loud SPL Version)
DPA CORE 4099 Classic Touring Kit, 4x 4099 Instrument Microphones (Loud SPL) and Accessories
Scan code:
LN92081
Manufacturer code:
KIT-4099-DC-4C
FREE DELIVERY ON YOUR ENTIRE BASKET
Order by 8:30 PM today and get it tomorrow
Product Overview
The true voice of your instrument - A perfect kit for your needs
There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the d:vote™ Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of d:vote™ CORE 4099 Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments – from the flute to the guitar, and everything in between.
The d:vote™ Rock Touring Kit offers a number of d:vote™ condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the d:vote™ CORE 4099 Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.
“I've been using d:vote™ Instrument Microphones for many years, especially on cello and double bass. I really like them because they are so small, light and easy to install. They come with a fabulous range of accessories and are not invasive, even on small instruments such as violins. In terms of sound, they bring out the true nature of an acoustic instrument and deliver the deep, full-bodied, true low end bass that you expect to hear." - Simone 'Zeta' Saccomandi, front of house engineer for Italian ensemble, LE DIV4S
About d:vote™ CORE 4099 Instrument Microphones

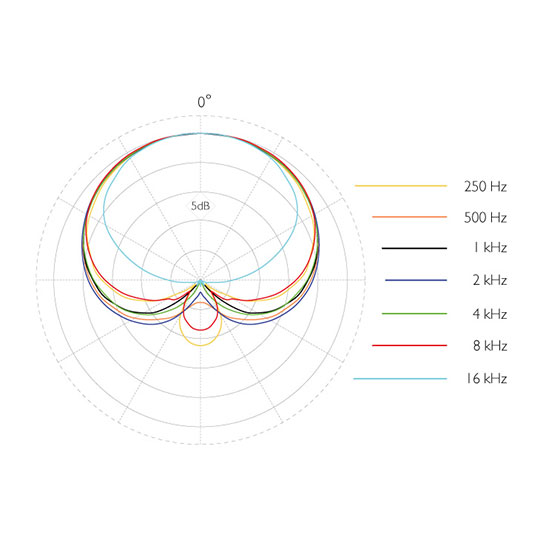

Both the Loud- and Extreme-SPL versions of the d:vote™ CORE 4099 have a supercardioid polar pattern for high rejection and superior gain-before-feedback. The mic also retains a uniform off-axis frequency response to ensure a high-energy, clear live performance.
The d:vote™ CORE 4099 also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.
The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities Features • CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender
Technical Specifications
• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz

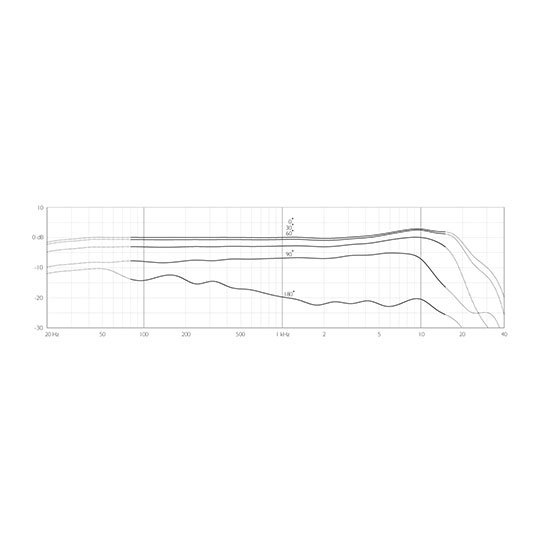

• Frequency range, ± 2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
• Total harmonic distortion (THD): < 1% up to 131 dB SPL peak
• Dynamic range: Typ. 108 dB
• Max. SPL, peak before clipping: 142 dB
• Output impedance: From MicroDot: 30 - 40 O. From DAD4099/DAD6001-BC: 100 O
• Cable drive capability: Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter
• Output balance principle: Signal balanced with DAD4099 or DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter
• Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter
• Connector: MicroDot
• Color: Black
• Weight: 27 g (0.95 oz)
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 45 mm (1.8 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
The true voice of your instrument - A perfect kit for your needs
There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the d:vote™ Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of d:vote™ CORE 4099 Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments – from the flute to the guitar, and everything in between.
The d:vote™ Rock Touring Kit offers a number of d:vote™ condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the d:vote™ CORE 4099 Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.
“I've been using d:vote™ Instrument Microphones for many years, especially on cello and double bass. I really like them because they are so small, light and easy to install. They come with a fabulous range of accessories and are not invasive, even on small instruments such as violins. In terms of sound, they bring out the true nature of an acoustic instrument and deliver the deep, full-bodied, true low end bass that you expect to hear." - Simone 'Zeta' Saccomandi, front of house engineer for Italian ensemble, LE DIV4S
About d:vote™ CORE 4099 Instrument Microphones
Both the Loud- and Extreme-SPL versions of the d:vote™ CORE 4099 have a supercardioid polar pattern for high rejection and superior gain-before-feedback. The mic also retains a uniform off-axis frequency response to ensure a high-energy, clear live performance.
The d:vote™ CORE 4099 also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Cables are available in heavy duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.
The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities Features • CORE by DPA technology inside
• Supercardioid condenser microphone
• Handles high SPLs
• Superior gain-before-feedback
• Flexible and easy mounting
• Gentle and easy to mount on the instrument
• Detachable cable and a versatile gooseneck extender
Technical Specifications
• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
• Total harmonic distortion (THD): < 1% up to 131 dB SPL peak
• Dynamic range: Typ. 108 dB
• Max. SPL, peak before clipping: 142 dB
• Output impedance: From MicroDot: 30 - 40 O. From DAD4099/DAD6001-BC: 100 O
• Cable drive capability: Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter
• Output balance principle: Signal balanced with DAD4099 or DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter
• Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter
• Connector: MicroDot
• Color: Black
• Weight: 27 g (0.95 oz)
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 45 mm (1.8 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Gooseneck length: 140 mm (5.5 in)
