DPA - 4017B-R Shotgun Microphone With Rycote Windshield
DPA - 4017B-R Shotgun Microphone With Rycote Windshield, 20 Hz - 20 kHz, 100 Ohms, 124 dB Dynamic Range
Shotgun Microphone With Rycote Windshield
DPA - 4017B-R

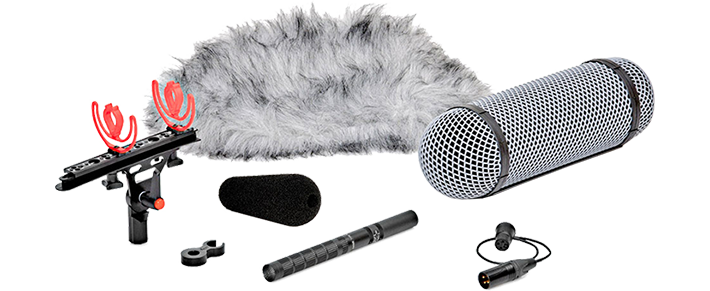

The Ideal Set Up For Challenging ConditionsDPA Microphones in collaboration with Rycote® have created the the d:dicate™ 4017B-R Shotgun Microphone with Rycote® Windshield Solution. The strong suspension and windshield has been especially designed to take the mic’s compact size and light weight into account. This kit offers everything an outside broadcaster, journalist or location film maker could ask for to capture clear, directional sound, for the toughest of weather and environmental conditions.
At just 210 mm (8.3 in) and 68 g (2.4 oz), this mic is one of the smallestand lightest shotgun condenser microphones on the market. It offers impressive accuracy, clarity and definition whilst fully immune to RF emission. The19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. Made for a wide variety of applications, the d:dicate™ Microphones Series is perfect for use with camera systems, in fixed positions at sports facilities, for broadcast/ENG/film booming and even studio recording environments.
124 dBDynamic Range
20 Hz - 20 kHzFrequency Response
100 ΩImpedance
Amazing Features
• Up to 50dB wind noise attenuation
• Uniform off-axis response
• Highly directional pattern
• Excellent RF Immunity

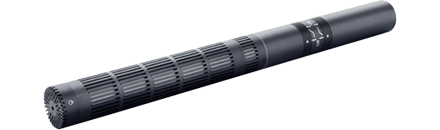

The Microphone Capsule
off-axis rejectionThe d:dicate™ 4017B-R Shotgun Microphone with Rycote® Windshield features a highly-directional hypercardioid pickup pattern, made using a supercardioid design with an interference tube that provides impressive off-axis rejection.
Its unique directional pattern is helpful when you need extra high directivity with high background noise rejection. It is convenient when you cannot place the mic close enough to the sound source. The MMP-B preamplifier is best if you want easily accessible high boost and low cut switches.
The Tech Spec
| Features | Specification | Directional pattern | Supercardioid, lobe-shaped |
|---|---|
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz Frequency range, ±2 dB, at 60 cm (23.6 in) 70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz Sensitivity, nominal, ±2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB) S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 81 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, peak before clipping | 138 dB |
| Switchable attenuator, filters etc. | High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Output impedance | 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Signal balanced |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | 48 V Phantom power (± 4 V) |
| Current consumption | 4.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase |
| Color | Matte black |
| Weight | 68 g (2.4 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 212 mm (8.3 in) |
| Maximum output voltage, RMS | 2.0 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
