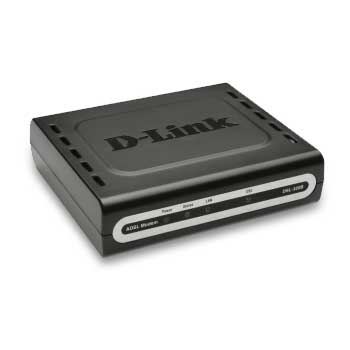

D-Link DSL-320B ADSL+2 Single Port Ethernet Modem
Scan code: LN25559
Manufacturer code: DSL-320B/UK
End Of Life
D-Link DSL-320B ADSL+2 Single Port Ethernet Modem
D-Link DSL-320B ADSL+2 Single Port Ethernet Modem - Also Converts Cable Router to ADSL
Scan code:
LN25559
Manufacturer code:
DSL-320B/UK
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
The DSL-320B ADSL2+ Ethernet Modem is a high-speed broadband modem which connects to any computer with an available Ethernet port, or to a broadband router to share high-speed Internet access with a group of users at the office. Featuring the latest ADSL2/+ standards, this modem provides speeds of up to 24 Mbps downstream and 2 Mbps upstream.
D-Link Click‘n Connect (DCC), an intuitive software wizard that runs directly from the product CD-ROM, helps install and configure the device without any prior knowledge required. Strong security is included, with comprehensive firewall and filtering capabilities for parental control. Other features include browser-based management, VPN pass-through to allow secure connections from home to the office network and Quality of Service (QoS) for traffic prioritization.
You can also use this Modem to Convert a Cable Router for use with a ADSL Connection
Compatiable with BE. ADSL Broadband (Standard Users set to Annex-A Pro users use Annex-M) with bridge mode LLC and then input your gateway & IP Details into your Router.
Features You can also use this Modem to Convert a Cable Router for use with a ADSL Connection
Interfaces
RJ-11 ADSL port
RJ-45 10/100BASE-TX Ethernet LAN port with auto MDI/MDIX
Factory reset button
ADSL standards
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt) Annex A
ITU-T G.992.2 (G.lite) Annex A
ITU-T G.994.1 (G.hs)
ADSL2 standards
ITU-T G.992.3 (G.dmt.bis) Annex A/L/M
ITU-T G.992.4 (G.lite.bis) Annex A
Annex M compatible: up to 2 Mbps upstream
ADSL2+ standard
ITU-T G.992.5 Annex A/M
Configuration/Management
D-Link Click’n Connect (DCC) easy set-up wizard
Web-based management
D-Link Click‘n Connect (DCC), an intuitive software wizard that runs directly from the product CD-ROM, helps install and configure the device without any prior knowledge required. Strong security is included, with comprehensive firewall and filtering capabilities for parental control. Other features include browser-based management, VPN pass-through to allow secure connections from home to the office network and Quality of Service (QoS) for traffic prioritization.
You can also use this Modem to Convert a Cable Router for use with a ADSL Connection
Compatiable with BE. ADSL Broadband (Standard Users set to Annex-A Pro users use Annex-M) with bridge mode LLC and then input your gateway & IP Details into your Router.
Features You can also use this Modem to Convert a Cable Router for use with a ADSL Connection
