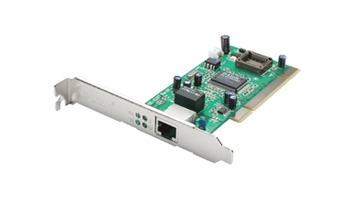

PCI Gigabit Network Card from Dlink DGE-528T
- 1 Port Edimax EN-9260TX-E V2 Gigabit 10/100/1000 PCIe Network Adapter Card£10.49£5.48 NEXT DAY DELIVERYPre order
Copper Gigabit connection for PC
10/100/1000Mbps auto-sensing speeds
2000Mbps Gigabit full duplex support
32-bit 33/66MHz clock speed PCI Bus Master operation
Built-in FIFO (8K/64K) buffer to reduce overhead of memory transfers
802.3x Flow Control for fast, reliable data transmission
ACPI 2.0 WOL power management
802.1q VLAN Tagging
802.1p Priority Queues
PCI 2.3 compliant
Supports up to 7Kb jumbo frames
Cable Diagnostics Utility provided
Optional remote Boot ROM (p/n DGE-528R)
Runs Win98, 2000, ME, NT, XP, NetWare, Linux, MacOS
Very small size, very low power consumption
2-year warranty Features High-performance Gigabit Speed
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.
VLAN to Improve Performance and Security
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.
Wake-On-LAN for Power Management
Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.
Flow Control to Minimize Packet Loss
The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.
Small Form Factor, Lower Power Requirement
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
