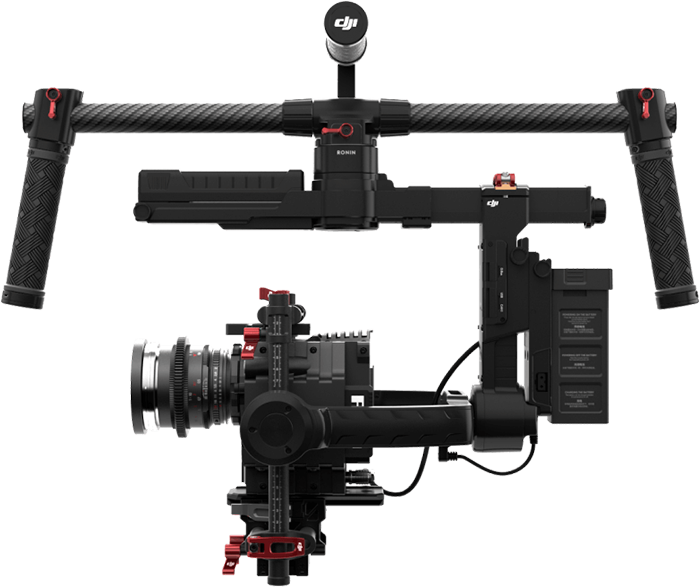

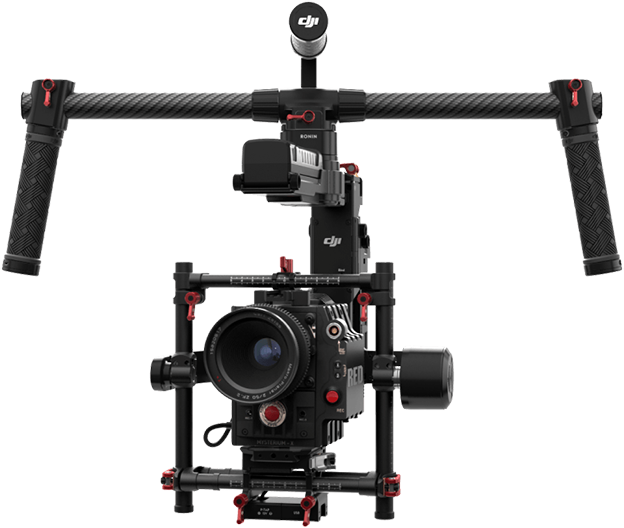

DJI Ronin-MX Professional 3-Axis Gimbal Stabiliser

DJI Ronin-MX Professional 3-Axis Gimbal Stabiliser, Auto Tune Stability, Smoothtrack Control

DJI
Scan code: LN83264 Manufacturer code: 127274 Request call
£1,359.00Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £33.94 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview Cinematic film making demands rapid setup and a host of camera configurations. The Ronin-MX has
been designed to carry many of the cameras used every day on sets worldwide, and SmoothTrack™
algorithms ensure movements are smooth in every configuration. A repositioned battery improves
balance while stability is enhanced by a camera cage that locks mounted cameras in place at the top and
at the bottom. Silent motors prevent on set mics picking up motor noise. Features • Compatible with DJI M600
• Supports RED EPIC, ARRI ALEXA Mini and more cameras
• Designed for stability in high G-force environments
• 5-minute set-up
• Professional 3-axis handheld stabilization
• 3 modes of operation: Upright, Underslung, Briefcase
• Auto Tune Stability (ATS) for rapid balancing
• SmoothTrack™ movement smoothing

Powerful And Accurate
Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon whenmounted to an aircraft or a vehicle. When mounted to the M600 aerial system, it communicates directly with DJI’s flight controlle, allowing it to stabilize actively for a smoother shot.

Freedom To Move
A slip ring allows the Ronin-MX to rotate 360° continuously when mounted to aircraft or vehicles, opening up more creative options. This is further enhanced by an increase in tilt axis range from 90° straight down and beyond to 135°. Popular features of the Ronin series such as the three modes of operation and SmoothTrack™ are also present, giving film makers a range of creative angles and movements.

Wireless Control And Transmission
The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1miles (5km) away. If combined with the optional DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras.

Comprehensive App Control
Using DJI Assistant and the dedicated Assistant app for iOS and Android allows complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, the DJI GO app can be used to control how the M600 flies including Intelligent Flight Modes, remote control modes, move the gimbal and see an HD live feed from the camera.

Refined Balance
A redesigned structure moves the Ronin-MX battery from the back to the front. This centers the weight of the camera, minimizing instability when flying directly forwards. It also dramatically increases the Ronin’s agility and ability to handle rapid movements or high-G situations.

Magnesium Contruction
Built extensively of lightweight magnesium, the Ronin-MX weighs just 6.11lb (2.77kg). This lightness allows it to be mounted to the M600 even when equipped with cameras as advanced as the RED EPIC, and to vehicles with a minimum impact on vehicle handling.

Strengthened Motors And ESCs
A combination of stronger motors and ESCs makes the Ronin-MX 50% more powerful than the Ronin-M. This additional stiffness and power allows the system to better withstand wind resistance when mounted to moving vehicles and aircraft, as well as more rapid movements.

External Camera Battery
Cameras such as the RED EPIC need an external battery for power. A dedicated position designed for an optional battery plate provides an easy, cable free mounting point for a 2nd DJI Intelligent Battery. This provides two 12V P-tap power sources for powering cameras and accessories.

Intelligent Batteries
Intelligent Ronin-MX batteries are compact, light and offer a long battery life of 3 hours. Multiple batteries can be easily brought to set for a full day of filming. Over-charge and over-depletion protection is built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the DJI GO app.

Remote Control Focus
The DJI Focus uses DJI’s expertise in brushless motors for previously unheard of levels of precision and accuracy. The brushless motor puts just ±0.02 of accuracy in the hand so that turning the remote is just like turning the lens itself. It also features high torque and a fast reaction speed so that subjects can be kept in focus no matter how they move. When upgraded with a Focus Expansion Module, the Focus can control aperture or focus across Lightbridge 2’s 3.1miles (5km) range.

Precision Solo Camera Control
Simple to set up and use, the DJI Ronin Wireless Thumb Controller makes controlling the Ronin-MX easy and intuitive, enabling the capture of shots that would otherwise be impossible for a single operator.

2nd Operator Control
A wireless 2.4GHz remote controller is included with the Ronin-MX enabling a 2nd operator to remotely control pan, tilt, roll, and other functions. By using the optional Lightbridge 2 Remote Controller, you have long range control of the Ronin-MX up to 3.1 miles (5km).

Fast, Precise Balancing
Save time and start shooting professionally stabilized video in under five minutes. Mount your camera to the Ronin-MX, quickly balance it, and then tap a button. The upgraded ATS (Auto Tune Stability) technology is more precise than before and completes the tuning and balancing processes with no tools necessary.

Cinematic Smoothness
Even with only one operator, SmoothTrack™ technology ensures the Ronin-MX translates movements into smooth camera angle changes. SmoothTrack™ settings from speed to deadband to acceleration are fully customizable. A ‘Single Axis Follow Mode’ enables two axis to be locked while SmoothTrack™ guides the camera along only one axis of motion.

Flexible Modes Of Operation
Three modes of operation, found on all Ronin series products, make the Ronin-MX a powerfully flexible camera stabilization system. Underslung Mode is the most common shooting mode, with the Ronin-MX held in front of the user. Upright Mode reverses Underslung Mode and puts the camera higher up making it ideal for raised shots above people or through sunroofs. Briefcase Mode makes it a narrow platform that fits easily through narrow hallways and doors.

Built-In Power Distribution
A dedicated power distribution box keeps wiring to a minimum while providing power to essential accessories. Two regulated 12V P-taps, one 500mAh full-size USB connector, and a DJI Lightbridge connector enable connectivity and power to everything a film maker needs.

Universal Mounting
Mount the Ronin-MX to aircraft easily using a specially designed mounting plate. A separate universal Quick Release system that doubles as a vibration dampening system allows the Ronin-MX to be connected to everything from jib to tripod and anything in between. This plate isolates the Ronin-MX from unwanted vibrations coming from the platforms it is mounted to, and makes it usable everywhere.

Short Range Wireless Transmission
On the ground, the SRW-60G* allows film makers to see the image from the camera without running cables up the Ronin-MX. In the air, it sends the camera’s feed from the camera direct to Lightbridge 2 allowing it to stream this image down to the pilot and cinematographer.

Specifications

General
Built-In Functions:
- Operation Modes - Underslung Mode, Upright Mode, Briefcase Mode, Aerial Mode & Jib or Wirecam Mode
- Built-in, independent IMU module
- DJI Specialized Gimbal Drive Motors with Encoders
- Bluetooth Module
- USB Connection
- 2.4GHz Receiver
- Temperature Sensor
- DJI Advanced 32-Bit DSP Processor
- D-Bus Receiver Supported

Mechanical & Electrical Characteristics
Working Current:
- Static current: 300mA (@16V)
- Dynamic current: 600mA (@16V)
- Locked motor current: Max 10A (@16V)
Run Time: 3 hours
Operating Temperature: 5° F ~ 120° F (-15° C ~ 50° C)
Weight:
- Including handle bar: 6.11 lb (2.77 kg)
- Including vibration absorber: 4.74 lb (2.15 kg)
Gimbal Dimensions:
- Excluding handle bar: 280 mm (W) x 370 mm (D)x 340 mm (H)
- Including handle bar: 560 mm (W) x 370 mm (D) x 440 mm (H)

Peripheral
Camera Tray Dimensions:
- Maximum depth from the center of gravity on camera base plate: 120mm
- Maximum height measured from top of camera base plate: 130mm
- Maximum width: 160mm
Accessory Power Connections: 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power: 4S Ronin-M Battery
Connections: 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements: Windows XP or above; Mac OS X 10.9 or above
Mobile Assistant Software Requirements: iOS 7.1 or above; Android 4.3 or above

Working Performance
Load Weight (Reference Value): 10 lb (4.5 kg)
Angular Vibration Range: ± 0.02°
Maximum Controlled Rotation Speed:
- Pan axis: 200°/s
- Tilt axis: 100°/s
- Roll axis: 30°/s
Mechanical Endpoint Range:
- Pan axis control: 360°
- Tilt axis control: +270° to -150°
- Roll axis control: ± 110°
Controlled Rotation Range:
- Pan axis control: 360°
- Tilt axis control: +45° to -135°
- Roll axis control: ± 25°
