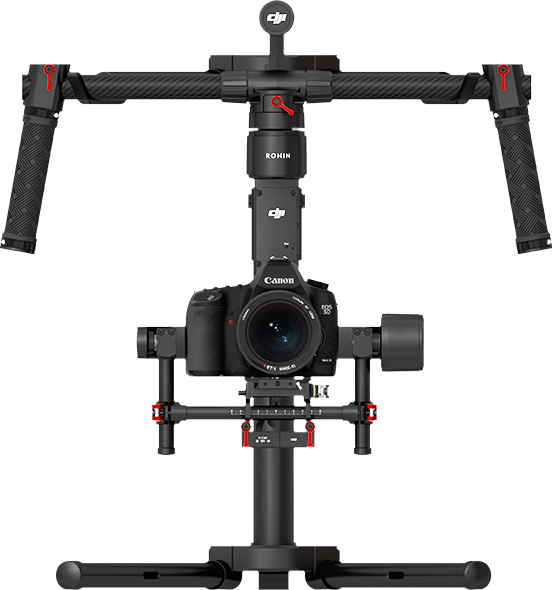

DJI Ronin-M 3-Axis Handheld Gimbal Stabiliser

DJI Ronin-M 3-Axis Handheld Gimbal Stabiliser, Smoothtrack Control, Silent Mode, Bluetooth Control

DJI
Scan code: LN83265 Manufacturer code: 121180 Request call
£899.00Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £22.45 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview Save time and start shooting professionally stabilised video in under 5 minutes. Mount your camera to the Ronin-M, quickly balance it, and then tap a button. The upgraded ATS (Auto Tune Stability) technology is more precise than before and completes the tuning and balancing processes with no tools necessary. Easy and efficient. Features • Total weight of 2.3 kg (5.07 lb.)
• Support cameras up to 3.6 kg (8 lb.)
• Precision of Control: ±0.02°
• Tool-Less Balance Adjustment System
• Transmitter for Remote Pan/Tilt Control
• Silent mode for quiet operation
• USB and Power Tap Power Outputs
• Assistant Software for iOS and Windows
• Bluetooth Wireless Interface for Setup


Simple Disassembly For Unmatched Flexibility
Capture tight shots, even when you have almost no space to work, and easily transport your Ronin-M. The top handle bars quickly and easily twist off, allowing you to minimize its size, achieve different shooting configurations, and pack or unpack it in seconds.

New Magnesium Frame
Your Ronin-M stands up to rugged use in any filming environment. Featuring a superbly strong and rigid magnesium frame, the Ronin-M brings increased stiffness and reduced weight. Notoriously difficult to manufacture and mold, magnesium brings you a new, more exact shooting experience while maintaining easy maneuverability and increasing options on set.

Smoothtrack Control
Even with only one operator, SmoothTrack technology ensures the Ronin-M translates your movements into smooth camera angle changes. Your camera intuitively faces the direction you want, all while completely stabilized, no matter how you move. SmoothTrack settings from speed to deadband to acceleration are fully customizable, and ‘Single Axis Follow Mode’ enables you to lock two axes while SmoothTrack guides your camera along only one axis of motion.

Endless Shooting Scenarios. One Flexible Solution
Capture shots that are impossible with any other setup. Switch effortlessly between the 3 modes of operation, without adjusting any settings or needing a 2nd operator remote.

• Underslung Mode - Film effortlessly and comfortably in the most common shooting mode, holding the Ronin-M directly in front of you at chest level.
• Upright Mode - Shoot at or above eye-level by flipping and lifting the lightweight Ronin-M above your head. This mode is perfect for shooting out of a car’s sunroof or above a crowd of people.
• Filming in narrow spaces or moving through a doorway is effortless with Briefcase mode. Turn the gimbal vertically and hold it by your side close to your legs, just like a briefcase.

Smart And Replaceable Battery
Film all day and capture every shot thanks to the Ronin-M’s smart, replaceable battery. With its compact size and long battery life of 3 hours, you can easily bring an extra battery with you to last through a whole day of filming. Overcharge and over depletion protection is built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the Assistant mobile app.

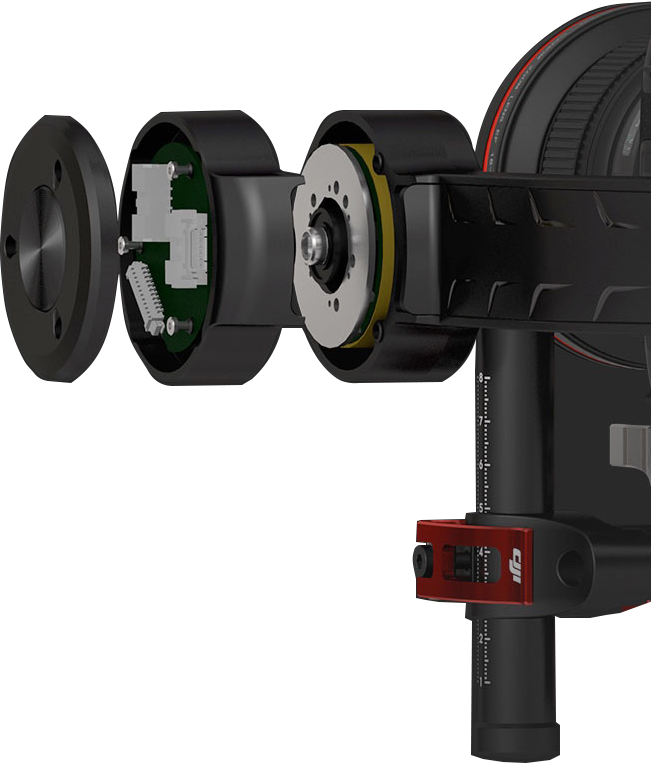

Powerful Motors. Precision Control
Designed with high performance in mind, the Ronin-M’s brushless motors are incredibly precise and powerful while maintaining low vibration and increasing torque. Industry-leading accuracy is increased even further with Digital Absolute Positioning Encoders in each axis, and a much larger range of controllable motion on both the tilt (105° Up, 165° Down) and roll (± 110°) axes.

Silent Mode
When shooting indoors or in tight spaces, a new Silent Mode reduces the sound of each motor to almost inaudible levels. The Ronin-M’s stabilization algorithms are instantly changed to focus on strength for minute changes and stabilization, ensuring the sound of the motors is not recorded by sensitive microphones or other recording equipment.

Second Operator For Impossible Shots
Capture anything you can imagine with a second operator controlling the camera’s movements as the first operator moves around set. Achieve perfect framing and complete more complex camera movements by working together and making your camera’s motions completely independent of the person holding it.

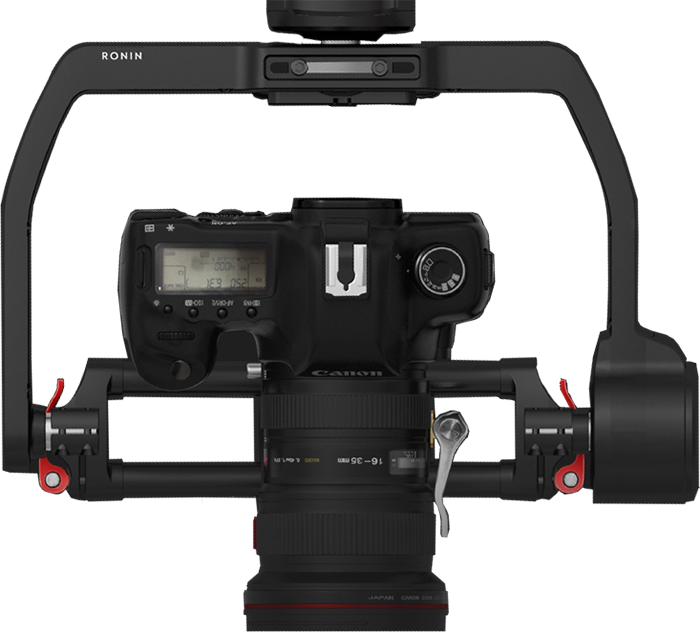

Solid Support Arm
Increased rigidity is provided by a single, complete piece of fine-tooled magnesium that forms the U-shaped arm holding the camera plate. Only made possible by DJI’s large manufacturing reach and expertise, this unified design eliminates imperfections that are common in systems made of multiple pieces assembled together. This arm gives you not only greater stability but also reliability, as there is no potential for separate pieces to come loose or move apart.

Mounts To Anything
Easily mount your Ronin-M with a quick-release system that is compatible with a wide range of universal connections. Remove the top bar assembly in seconds and put your Ronin-M on a jib, crane, tripod, or anything else.

Power Your Tools
A dedicated power distribution box keeps wiring to a minimum while providing power to your key accessories. Two regulated 12V P-taps, one 500mAH full-size USB connector, and a DJI Lightbridge connector enable you to connect and provide power to everything you need.

One Bluetooth App. A World Of Options
Change settings on the go with the simple DJI Assistant app that links to your Ronin-M over Bluetooth. Auto Tune, adjust your favorite settings, monitor the status of your Ronin-M, and customize SmoothTrack in seconds.

Future-proofing With Upgradable Firmware
Take advantage of new features and updates by downloading the latest firmware online and updating your Ronin-M instantly.

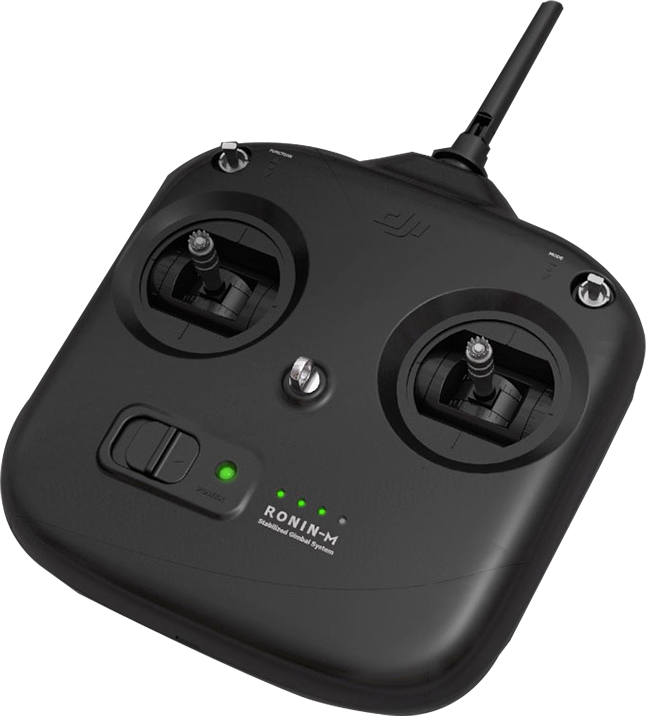

Compatible Thumb Controller
Gain more control over your camera's motions with a built-in receiver that is fully compatible with your optional DJI Ronin M Thumb Controller. Point the camera in any direction and save preset settings for fast, easy operation.

Precise Focus Control
Use the Ronin with the DJI Focus for wireless control of focus or aperture from anywhere on a set.

In The Box
Gimbal x 1
Handle Bar x1
Remote Control - 2.4GHz x1
Tuning Stand x1
Charger x1
DJI Intelligent Battery x2
Cable Pack x1
Micro-USB Cable x1
Camera Mounting Plate x1

Specifications

General
Built-In Functions:
- Three Operation Modes - Underslung Mode, Upright Mode & Briefcase Mode
- Built-in, independent IMU module
- DJI Specialized Gimbal Drive Motors with Encoders
- Bluetooth Module
- USB Connection
- 2.4GHz Receiver
- Temperature Sensor
- DJI Advanced 32-Bit DSP Processor
- D-Bus Receiver Supported

Mechanical & Electrical Characteristics
Working Current:
- Static current: 300mA (@16V)
- Dynamic current: 600mA (@16V)
- Locked motor current: Max 10A (@16V)
Run Time: 3 hours
Operating Temperature: 5° F ~ 120° F (-15° C ~ 50° C)
Weight: 2.3kg (5.07lb) fully loaded with handlebar
Gimbal Dimensions: 500mm(W) x 210mm(D)x 420mm(H)

Peripheral
Camera Tray Dimensions:
- Maximum depth at center of mass on camera base plate: 120mm
- Maximum height measured from top of camera base plate: 195mm
- Maximum width: 160mm
Accessory Power Connections: 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power: 4S Ronin-M Battery
Connections: 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software Requirements: Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit);Mac OS X 10.9 or above
Mobile Assistant Software Requirements: Mobile Device: iOS 6.1 or above, Android 4.3 or above

Working Performance
Load Weight (Reference Value): 8lb (3.6kg)
Angular Vibration Range: ± 0.02°
Maximum Controlled Rotation Speed:
- Pan axis: 90°/s
- Tilt axis: 100°/s
- Roll axis: 30°/s
Mechanical Endpoint Range:
- Pan axis: 360°
- Tilt axis: +105° to -190°
- Roll axis: ± 110°
Controlled Rotation Range:
- Pan axis control: 360°
- Tilt axis control: +105° /-190°
- Roll axis control: ± 25°
