New
Scan code: LN118709 Manufacturer code: CP.TP.00000232.02

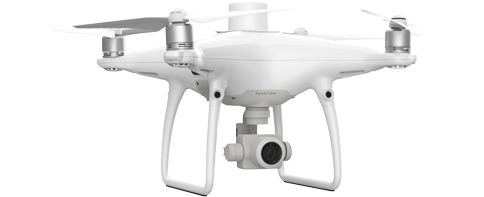

DJI Phantom 4 RTK Enterprise Drone

DJI Phantom 4 RTK, Enterprise Drone, 20MP CMOS Sensor, RTK, TimeSync, 7km OcuSync Transmission, 30min Flight Time

Thumbnail 1 : DJI Phantom 4 RTK Enterprise Drone Thumbnail 2 : DJI Phantom 4 RTK Enterprise Drone Thumbnail 3 : DJI Phantom 4 RTK Enterprise Drone Thumbnail 4 : DJI Phantom 4 RTK Enterprise Drone
Scan code: LN118709 Manufacturer code: CP.TP.00000232.02
£5,950.00Item currently awaiting an ETA
Pre order
From £162.51 / month (APR 14.9%)
Monthly Payment: £534.15
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,950.00
Total inc. interest: £6,409.80
Monthly Payment: £285.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,950.00
Total inc. interest: £6,854.17
Monthly Payment: £203.27
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,950.00
Total inc. interest: £7,317.74
Monthly Payment: £162.51
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,950.00
Total inc. interest: £7,800.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £148.61 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

DJI - 'Phantom 4 RTK'

DJI Phantom 4 RTK Drone UAS

Visionary Intelligence, Elevated AccuracyUpgrade your next mapping mission with the Phantom 4 RTK – the most compact and accurate low altitude mapping solution.

Centimeter-Accurate Data

Next Generation MappingDJI has rethought its drone technology from the ground-up, revolutionizing its systems to achieve a new standard for drone accuracy – offering Phantom 4 RTK customers centimeter-accurate data while requiring fewer ground control points.

DJI Phantom 4 RTK Drone UAS

1cm+1ppmRTK Horizontal
Positioning Accuracy

DJI Phantom 4 RTK Drone UAS

1.5cm+1ppmRTK Vertical
Positioning Accuracy

DJI Phantom 4 RTK Drone UAS

5cm*Absolute Horizontal Accuracy
of Photogrammetric Models

*When flying at 100m height, 2.7cm GSD, sunny.

Key Features

DJI Phantom 4 RTK Drone UAS

RTK Module

DJI Phantom 4 RTK Drone UAS

1" CMOS Sensor

DJI Phantom 4 RTK Drone UAS

GS RTK APP

DJI Phantom 4 RTK Drone UAS

TimeSync

DJI Phantom 4 RTK Drone UAS

OcuSync

DJI Phantom 4 RTK Drone UAS

D-RTK 2 GNSS Mobile Station

Improved Absolute Accuracy

DJI Phantom 4 RTK Drone UAS

Centimeter-Level Positioning SystemA new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata. In addition to optimized flight safety and precise data collection, the Phantom 4 RTK stores satellite observation data to be used for Post Processed Kinematics (PPK), which can be conducted using DJI Cloud PPK Service*. Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the D-RTK 2 High Precision GNSS Mobile Station, or NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot.

*DJI Cloud PPK Service is currently not available in in the US, Canada, Hong Kong SAR, or Macau SAR. Support is coming soon. For more information on the Service and a free trial, please contact your local dealer.

TimeSync

DJI Phantom 4 RTK Drone UAS

Gather Accurate Data with TimeSyncTo take full advantage of the Phantom 4 RTK’s positioning modules, the new TimeSync system was created to continually align the flight controller, camera and RTK module. Additionally, TimeSync ensures each photo uses the most accurate metadata and fixes the positioning data to optical center of the lens – optimizing the results from photogrammetric methods and letting the image achieve centimeter-level positioning data.

20-megapixel CMOS

DJI Phantom 4 RTK Drone UAS

Precise Imaging SystemCapture the best image data with a 1-inch, 20-megapixel CMOS sensor. Mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur. Due to the high resolution, the Phantom 4 RTK can achieve a ground sample distance (GSD) of 2.74 cm at 100 meters flight altitude.To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process, with parameters saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

Section Title

Built for SurveryorsOffering a range of control schemes and complimentary technologies, the DJI Phantom 4 RTK is developed to provide survey-grade results with greater efficiency than ever before.

DJI Phantom 4 RTK Drone UAS

Purpose-Built ApplicationA new DJI GS RTK app and Remote Controller with built-in screen, giving users a streamlined control scheme for surveying missions and other data acquisition scenarios.The GS RTK app allows pilots to intelligently control their Phantom 4 RTK, with multiple planning modes, including Photogrammetry (2D and 3D), Waypoint Flight, Terrain Awareness, Block Segmentation*, and more. Users can also import KML/KMZ files to optimize the workflow for their missions.With the built-in screen, pilots can clearly view and plan their missions on an ultra-bright, 5.5-inch HD display.

*In some countries, local regulations do not permit Multi-Aircraft Control when executing Block Segmentation missions or require special approval. Please consult and follow the applicable rules wherever you operate.

DJI Phantom 4 RTK Drone UAS

Access a Variety of 3rd Party ApplicationsPilots with experience using 3rd party apps on DJI drones can access the world's leading drone app ecosystem for their Phantom 4 RTK with the SDK Remote Controller. Users can plug in a compatible Android or iOS device and install any compatible DJI Mobile SDK-enabled app to harness the full power of their Phantom 4 RTK.

DJI Phantom 4 RTK Drone UAS

OcuSync Transmission SystemEnjoy stable and reliable HD image and video transmission at distances of up to 7 km, great for mapping larger sites*.

*Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.

DJI Phantom 4 RTK Drone UAS

Seamless Compatibility with
D-RTK 2 Mobile Station
Support your Phantom 4 RTK missions with the D-RTK 2 Mobile Station – providing real-time differential data to the drone and forming an accurate surveying solution, or acquire accurate location coordinates when used as an RTK rover. The Mobile Station’s rugged design and OcuSync transmission system ensures you can gain centimeter-level accurate data with your Phantom 4 RTK in any condition.

DJI Phantom 4 RTK Drone UAS

Start Mapping TodayWith a built-in flight planning app (GS RTK) and an easy method to collect RTK data (RTK Network or D-RTK 2 Mobile Station), pilots have a full solution for any surveying, mapping or inspection workflow – right out of the box.

Specifications
Legal Max Height in the UK 400 ft
Max Flight Time 30 minutes
Weight (with payload) 1391 grams
Weight (without payload) N/A grams
Camera Included Yes
Megapixels 20 MP
Still Image Resolution 5472x3648
Video Resolution 3840x2160 @30Hz
Storage Support MicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed=15 MB/s
CAA Registration Needed? Yes
Includes
Included in the Box
  • Aircraft Body
  • Battery Charging Hub
  • Propellers (Pair)
  • Remote Controller
Additional Information
Scan Code LN118709
Model Number CP.TP.00000232.02
GTIN 6958265168642
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
