Scan code: LN118705 Manufacturer code: CP.AG.00000205.01

DJI P4 Multispectral

DJI P4 Multispectral, Agricultural Drone/UAS, 6 Image Sensors, RTK, TimeSync, Spectral Sunlight Sensor, 7km Transmission

Thumbnail 1 : DJI P4 Multispectral Thumbnail 2 : DJI P4 Multispectral Thumbnail 3 : DJI P4 Multispectral
Scan code: LN118705 Manufacturer code: CP.AG.00000205.01
£5,750.00Item currently awaiting an ETA
Pre order
From £157.04 / month (APR 14.9%)
Monthly Payment: £516.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,750.00
Total inc. interest: £6,194.33
Monthly Payment: £276.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,750.00
Total inc. interest: £6,623.77
Monthly Payment: £196.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,750.00
Total inc. interest: £7,071.71
Monthly Payment: £157.04
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,750.00
Total inc. interest: £7,537.96
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £143.62 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

DJI - 'P4 Multispectral'

DJI P4 Multispectral Drone UAS for Agriculture

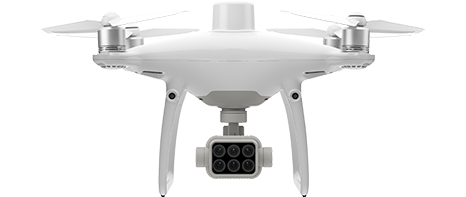

Plant Intelligence for Targeted ActionGather precise plant-level data using the P4 Multispectral – a high-precision drone with a seamlessly integrated multispectral imaging system built for agriculture missions, environmental monitoring, and more.

DJI P4 Multispectral Drone UAS for Agriculture

Multispectral imaging System

DJI P4 Multispectral Drone UAS for Agriculture

Live NDVI View

DJI P4 Multispectral Drone UAS for Agriculture

RTK Module

DJI P4 Multispectral Drone UAS for Agriculture

TimeSync

Farm to Figures

DJI P4 Multispectral Drone UAS for Agriculture

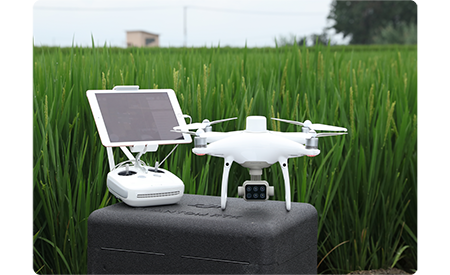

Gain Immediate Insights into plant HealthThe P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system.

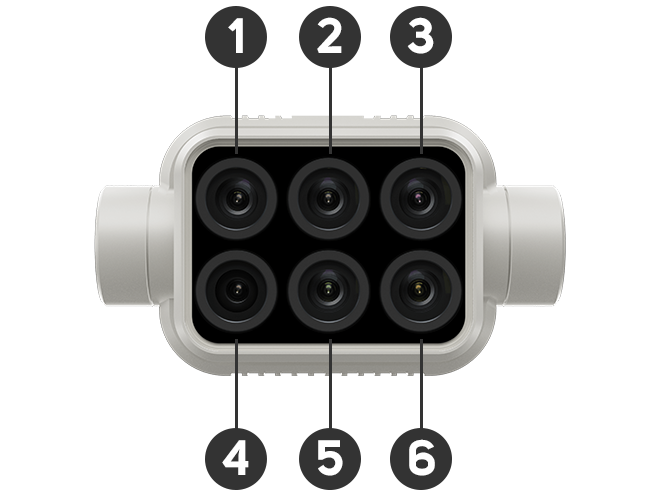

Six Built-In Stabilised Visual Sensors

See Beneath the SurfaceAgriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.

1. Red Edge (RE)730 nm ± 16 nm

2. Near-Infrared 840 nm ± 26 nm

3. Green (G)560 nm ± 16 nm

DJI P4 Multispectral Drone UAS for Agriculture

4. Visible Light(RGB)

5. Red (R)650 nm ± 16 nm

6. Blue (B)450 nm ± 16 nm

DJI P4 Multispectral Drone UAS for Agriculture

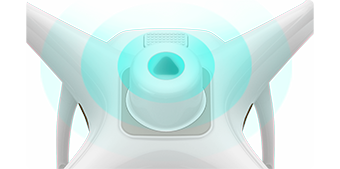

Integrated Spectral Sunlight
Sensor for Accurate Results
An integrated spectral sunlight sensor on top of the drone captures solar irradiance, which maximizes accuracy and consistency of data collection through different times of day. When combined with post-processed data, this information helps to obtain the most accurate NDVI results.

Meaningful Data at Your Disposal

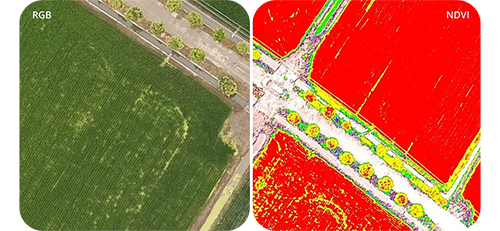

View Both RGB and NDVI FeedsSimply having aerial imagery is not enough for ag professionals who want to know more. Switch between a preliminary Normalized Difference Vegetation Index (NDVI) analysis and the live RGB feed to immediately visualize where attention is needed, so targeted treatment decisions can be made quickly.

DJI P4 Multispectral Drone UAS for Agriculture

Centimeter-level PrecisionGet real-time, accurate positioning data on images captured by all six cameras with DJI’s TimeSync system, providing centimeter-level accurate measurements. The TimeSync system continually aligns the flight controller, RGB and NB cameras, and RTK module, fixing the positioning data to the center of the CMOS and ensuring each photo uses the most accurate metadata. All cameras go through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

DJI P4 Multispectral Drone UAS for Agriculture
DJI P4 Multispectral Drone UAS for Agriculture

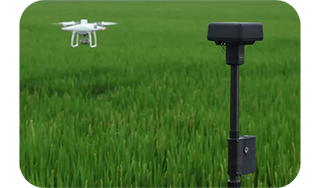

D-RTK 2 Mobile Station and NTRIP CompatibilityEnhance the accuracy of RTK positioning without internet connection by connecting the P4 Multispectral to the D-RTK 2 High Precision GNSS Mobile Station and NTRIP (Network Transport of RTCM via Internet Protocol)2, or store the satellite observation data to be used for Post Processed Kinematics (PPK).

The Beginning of Intelligent Agriculture Missions

DJI P4 Multispectral Drone UAS for Agriculture

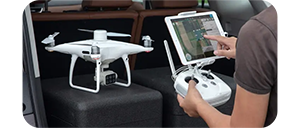

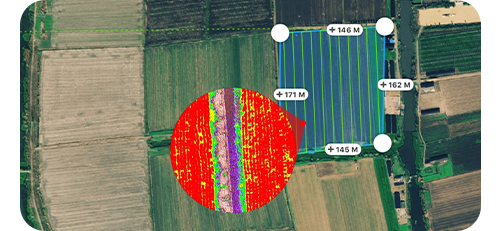

Plan FlightsPlan flights, execute automated missions, and manage flight data using GS PRO – DJI’s leading flight planning iOS app.

DJI P4 Multispectral Drone UAS for Agriculture

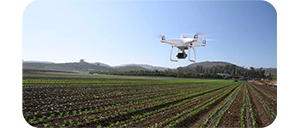

Capture DataCollect multispectral images efficiently across a large area using the P4 Multispectral and gain an overview of problem areas.

DJI P4 Multispectral Drone UAS for Agriculture

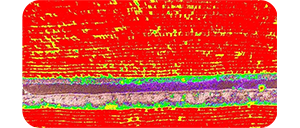

Analyse DataEasily access and process aerial data by applying plant-specific metrics and parameters to acquire the desired results on plant health.

DJI P4 Multispectral Drone UAS for Agriculture

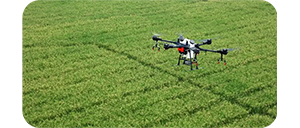

Act on DataImplement targeted treatments on areas that need attention based on accurate drone data.

Applications

DJI P4 Multispectral Drone UAS for Agriculture

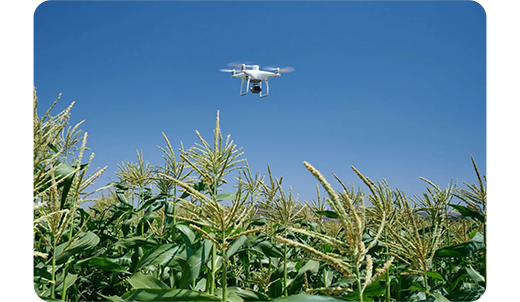

Throughout all growing seasons, multispectral imagery can be helpful to ag professionals by providing information invisible to the human eye across the electromagnetic spectrum. Having access to this data and the subsequently obtained Vegetation Index data such as NDRE and NDVI, farmers can make timely, informed decisions on crop treatment, lowering costs, saving resources, and maximizing yields.

DJI P4 Multispectral Drone UAS for Agriculture

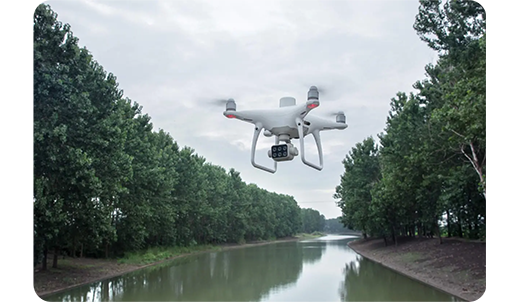

Routine inspections and maintenance involving plants can be made smarter and more efficient when using the P4 Multispectral – leverage its actionable multispectral insights to monitor forest health, measure biomass, map shorelines, or manage riparian vegetation while protecting habitats or ecosystems, and much more.

Drone Laws, Training and Limitations

Registration RequiredRegister via the CAA DMARES website. If you have already registered it is mandatory to attach your Operator ID to your UAS/Drone.

LimitationsCAA Limitations for all UAS/Drones flights in UK Airspace Max Operating Height 120m/400ft.

Open Category, A3 SubcategoryWithout a training course you can only fly in the Open Category’s A3 subcategory (fly far from people), this means:
• No uninvolved people present within the area of flight.
• No flight within 150m horizontally of residential, commercial,
industrial, and recreational areas.

Additional InformationFor more information about Drone Rules & Requirements please read HERE or contact Scan Pro Video for further information on Training Requirements.

Specifications
Legal Max Height in the UK 400 ft
Max Flight Time 27 minutes
Weight (with payload) 1487 grams
Weight (without payload) N/A
Camera Included Yes
Megapixels 2 MP
Still Image Resolution 1600 x 1300
Video Resolution *See Above*
Storage Support MicroSD (Max Capacity 128GB)
CAA Registration Needed? Yes
Includes
Included in the Box
  • Aircraft Body
  • Battery
  • Charger
  • Intelligent Flight Battery
  • Propellers (Pair)
  • Remote Controller
Additional Information
Scan Code LN118705
Model Number CP.AG.00000205.01
GTIN 6958265198014
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
