DJI Matrice 600 Pro Drone (UK)

DJI Matrice 600 Pro, Professional Drone, 5km Video Transmission, 32 Minute Flight Time, Lightbridge 2

Thumbnail 1 : DJI Matrice 600 Pro Drone (UK) Thumbnail 2 : DJI Matrice 600 Pro Drone (UK) Thumbnail 3 : DJI Matrice 600 Pro Drone (UK) Thumbnail 4 : DJI Matrice 600 Pro Drone (UK)
Scan code: LN110022 Manufacturer code: CP.SB.000307
Call for price
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Simply Professional Performance
DJI - 'Matrice 600 Pro'

DJI Matrice 600 Pro

Please Note: Image for illustration Purposes Only, Camera and Gimbal Not Included

'Improved Flight Performance'DJI’s Matrice 600 Pro (M600 Pro) has inherited everything from the M600 with improved flight performance and better loading capacity. The pre-installed retractable arms and antennas reduce the time needed to setup, the systems modular design also makes it easy to mount additional modules.

The M600 Pro is equipped with DJI’s latest technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. The Matrice 600 Pro is ideal for professional aerial photography and industrial applications with numerous Zenmuse cameras and gimbals natively compatible and full integration with third party software & hardware.

What's Included • Aircraft Body (with Arm Sleeves)
• 6x Intelligent Flight Battery (TB47S)
• Tape and Battery Stickers
• 2x Landing Gear Legs
• Remote Controller
• RC Charging Cable
• Inner Foam Case
• Micro USB Cable
• 2x Landing Skids
• Power Cable
• Hex Charger
• 2x Springs
• Screws

Precise Control & Stable Performance

DJI Matrice 600 Pro

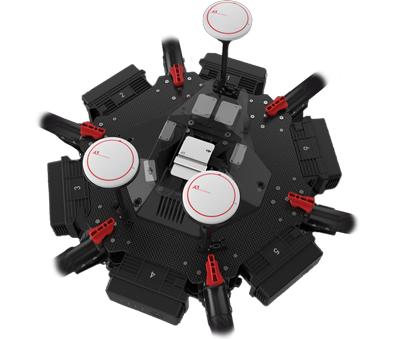

A3 PRO FLIGHT CONTROLLERThe A3 Pro Flight Controller has a triple modular redundancy and diagnostic algorithms that compare sensor data from three sets of GNSS units, with additional analytical redundancies for a total of six. A new dampening system for the A3’s modules enable precise control of multi-rotor aircraft, providing accurate data for stable flight performance. Self-adaptive systems will automatically adjust flight parameters based on different payloads. Compatibility with D-RTK GNSS means that the A3 Pro can withstand magnetic interference, providing centimetre-level accuracy, suitable for various industrial applications.


DJI Matrice 600 Pro

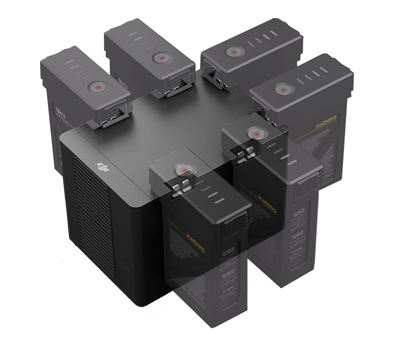

CHARGE 6 BATTERIES SIMULTANEOUSLYThe M600 Pro charger has six charging hubs, enabling it to charge six Intelligent Batteries simultaneously. All six batteries can be fully charged in a short amount of time*, for quick and efficient preparation.
*92 minutes for TB47S and 110 minutes for TB48S.

DJI Matrice 600 Pro

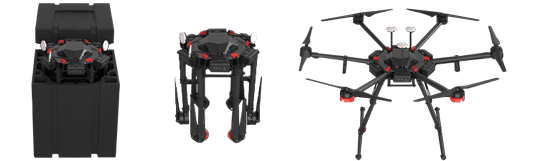

Complete Integration, Ultra ConvenientThe M600 Pro is ready to fly within a matter of minutes with its simple and easy set up. The airframe’s quick-release landing gear and folding frame arms are optimal for easy transportation. The positions of the GNSS modules and sensors have been improved and a dampening system for the IMU unites increases in-flight reliability. The M600 Pro is protected from impacts, shakes and falls in transport by its included customisable and durable case.

Effortless Gimbal Support

Aerial Imaging SolutionDustproof propulsion systems simplify maintenance and active cooling motors ensure that operation is reliable for extend periods of time. The M600 Pro is natively compatible with several Zenmuse cameras and gimbals. With a maximum payload of 6kg, it effortlessly supports the Ronin-MX gimbal, DJI focus and a range of cameras from Micro Four Thirds systems to the RED EPIC.

DJI Matrice 600 Pro

Actively Cooler Motors

DJI Matrice 600 Pro

E2000 Pro

DJI Matrice 600 Pro

Retractable Landing Gear

DJI Matrice 600 Pro

Intelligent Battery

DJI Matrice 600 Pro

Compatibile with Multiple Cameras

DJI Matrice 600 Pro
DJI Matrice 600 Pro

Ronin MX + RED EPIC

DJI Matrice 600 Pro

Zenmuse Z15-A7

DJI Matrice 600 Pro

Zenmuse Z15-GH4

DJI Matrice 600 Pro

Hasselblad H6D-100C

DJI Matrice 600 Pro

Zenmuse X5R

DJI Matrice 600 Pro

Zenmuse XT

DJI Matrice 600 Pro

Zenmuse Z30

5km Long-Range Transmission

DJI Matrice 600 Pro

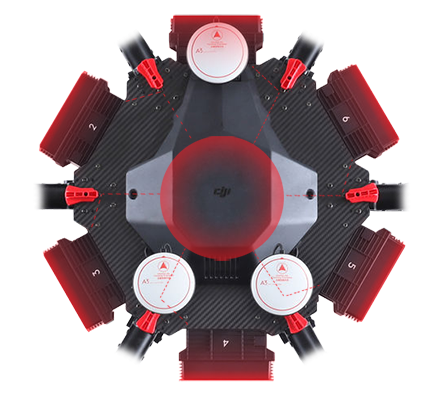

Extended Flight Time & Transmission RangeThe M600 Pro has an extended flight time and a 5km* long-range transmission. A comprehensive battery management system means that if any of its six Intelligent Batteries are turned on or off, the rest will follow suit. The battery management system monitors every battery during flight, ensuring safe landing in the event of single battery failure. Compared to traditional non-intelligent batteries, the M600 Pro’s battery management system simplifies maintenance while enhancing security.

*Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations.

DJI Matrice 600 Pro

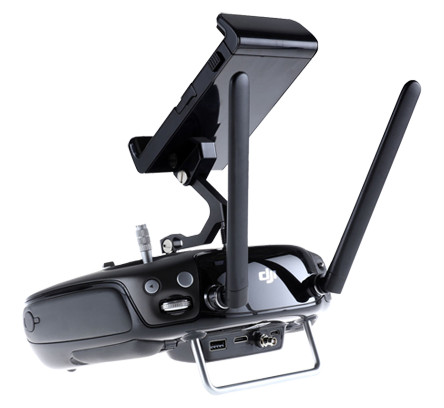

Professional HD TransmissionDJI Lightbridge 2 has been designed to meet all the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, 3G-SDI ports and Lightbridge 2 Ground Unit all support video output at up to 1080p/60fps. Dynamic, self-adaptive wireless data links enable long-range transmission with ultra-low latency, supporting a broadcast standard output of 720p/59.94fps and 1080i/50fps, enabling even more creative opportunities for aerial imaging.


DJI Matrice 600 Pro

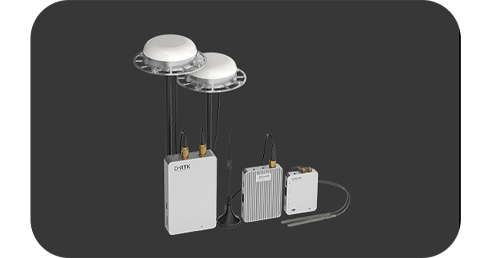

D-RTK GNSSUsing dual antennas, the D-RTK GNSS system is a significant breakthrough for high-precision industrial applications. It is able to withstand strong magnetic interference and provides centimeter-level accuracy in environments with metal structures.

DJI Matrice 600 Pro

Open SDK DevelopmentThe M600 Pro is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for various industrial applications. It has four — dual parallel — CAN ports and one API port for connecting DJI devices, including the D-RTK GNSS units or third party components of your choice.

DJI Matrice 600 Pro

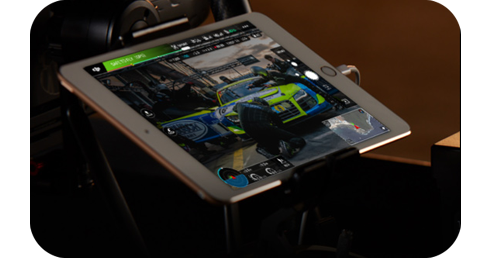

Powerful App ControlThe M600 Pro supports the DJI GO app and DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture, on any Zenmuse series camera and remote focus and aperture control on the Zenmuse X5 and X5R cameras. DJI Assistant 2 supports firmware updates and Ground Station, and comes with a built-in flight simulator.

'Freedom to Move a Professional Cinema Camera Anywhere'

Introducing the Matrice 600The new DJI Matrice 600 is a heavy-lifting platform that gives you the freedom to use the best camera equipment available to shoot from the sky. Capable of extended flight times and featuring built-in and add-on redundancies for maximum reliability, the M600 is the ideal aerial system for professional filmmaking.

DJI Matrice 600 Pro

The Tech Spec

Features Specification
Diagonal Wheelbase 1133mm
Dimensions 1668 mm × 1518 mm × 727 mm with propellers, frame arms and GPS mount unfolded (including landing gear)
437 mm × 402 mm × 553 mm with propellers, frame arms and GPS mount folded (excluding landing gear)
Weight 9.5kg (with six TB47S Batteries)
10kg (with six TB48S Batteries)
Max Takeoff Weight Recommended 15.5kg
Hovering Accuracy (P-GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle 25°
Max Wind Resistance 8 m/s
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Service Ceiling Above Sea Level 2170R propellers: 2500 m
2195 propellers: 4500 m
Max Speed 40 mph / 65 kph (no wind)
Hovering Time* (with six TB47S batteries) No payload: 32 min, 6 kg payload: 16 min
Hovering Time* (with six TB48S batteries) No payload: 38 min, 5.5 kg payload: 18 min
Supported DJI Gimbals Ronin-MX; Zenmuse Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Flight Control System A3 Pro
Propulsion System Motor model: DJI 6010
Propeller model: DJI 2170R
Retractable Landing Gear Standard
Operating Temperature -10° C to 40° C
Specifications
Legal Max Height in the UK 400 ft
Max Flight Time 32 minutes
Weight (with payload) 15500 grams
Weight (without payload) 9.5 grams
Camera Included No
Megapixels N/A MP
Still Image Resolution N/A
Video Resolution N/A
Storage Support
CAA Registration Needed? Yes
Includes
Included in the Box
  • Aircraft Body
  • Battery
  • Battery Charging Hub
  • Carry Case
  • Intelligent Flight Battery
  • Landing Gear
  • Micro USB Cable
  • Power Cable
  • RC Charging Cable
  • Remote Controller
Additional Information
Scan Code LN110022
Model Number CP.SB.000307
GTIN 6958265132148
