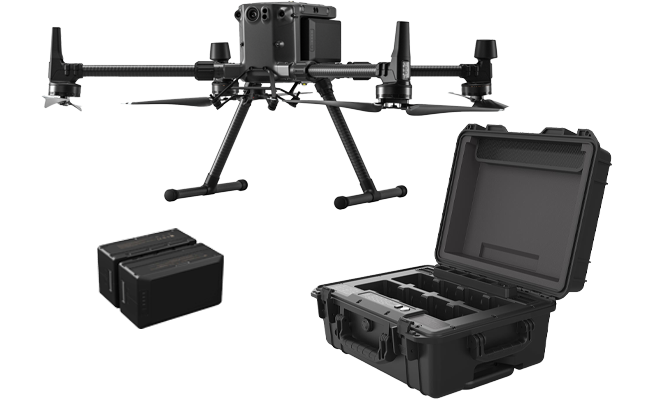

DJI - 'Matrice M300 RTK Universal Edition'
'w/ TB60 Battery & BS60 Battery Station'
'A New Standard for the Commercial Drone Industry'DJI’s latest commercial drone platform, the Matrice 300 RTK, takes inspiration from modern aviation systems.
The M300 RTK sets a new standard by combining intelligence with high-performance and unrivalled reliability.
Advanced AI capabilities, 6-way Directional Sensing & Positioning and 55 minutes maximum of flight time.
15km Max
Transmission
55-min Max
Flight Time
6 Directional
Sensing & Positioning
Primary Flight
Display
IP45 Rating
-20°C to 50°C
Operating Temperature
Hot-Swappable
Battery
UAV Health
Management System
What's Included
• M300 Aircraft Body
• BS60 Battery Station
• Enterprise Smart Controller
• TB60 Intelligent Flight Battery (2 Pack)
• WB37 Intelligent Flight Battery
• USB Cable (with Double A Ports)
• Pair of Spare Stick Covers
• 2 x Spare Propeller Holder
• Smart Controller Lanyard
• Set of Rubber Port Cover
• 4 x Spare Gimbal Damper
• Set of 2110 Propellers
• VS Calibration Plate
• 2 x Landing Gear
• Carrying Case
• Screws & Tools
• USB Charger
• USB-C Cable
Enhanced Transmission & Flight Performance
Improved Transmission SystemDJI’s all-new OcySync Enterprise enables transmission up to 15km away and supports triple channel 1080p video (Only supported by dual RC). Real-time auto-switching between 2.4 GHz and 5.8 GHz enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
15 kmTransmission Range
1080pTriple-Channel Video
2.4/5.8GHzReal-Time Auto-Switching
Enhanced Flight PerformanceThe refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions. With a maximum flight time of 55 minutes, a 7000m Service Ceiling (with high altitude propellers) and the ability to resists winds up 15m/s you will be prepared for every situation.

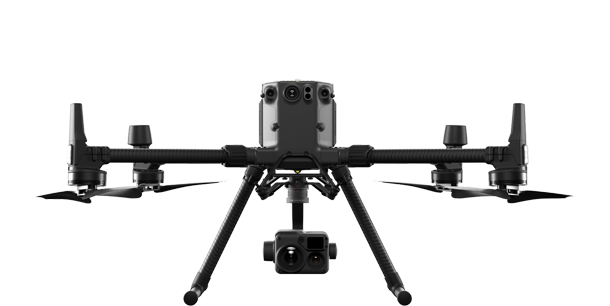

Multiple Payload ConfigurationsConfigure your M300 RTK to fit your mission needs.

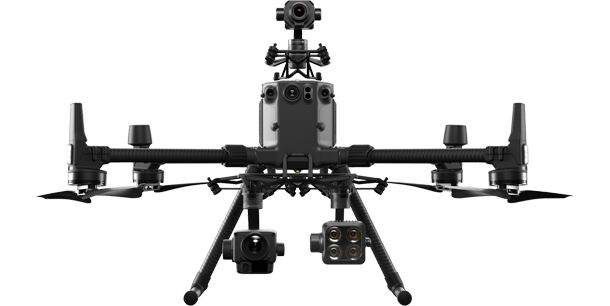

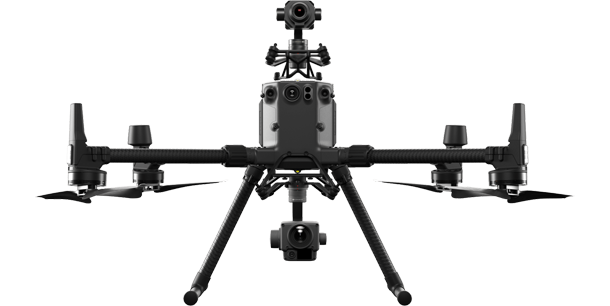

Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.
Advanced Intelligence for Smart Inspection
Live Mission RecordingRecord mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.
AI Spot-CheckAutomate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.
(Feature only supported when paired with Zenmuse H20 Series payload)
Waypoints 2.0Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.
Smart Pin & Track

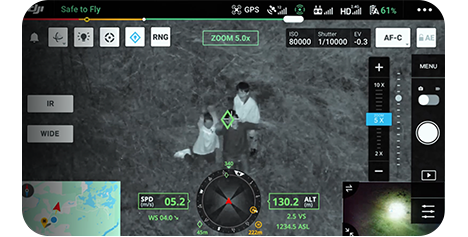

PinPointMark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.

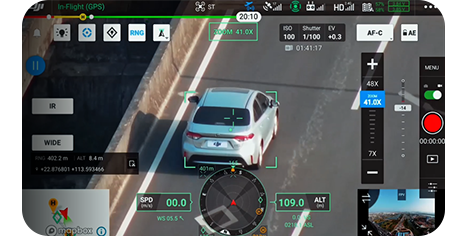

Smart TrackIdentify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub9.
Please Note:
The PinPoint & SmartTrack features are only supported when the
aircraft is paired with the Zenmuse H20 Series payloads.
Location sharing via DJI FlightHub is coming soon.
Exceptional Situational Awareness
Aviation-Grade Situational AwarenessThe M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.
Flight InformationFlight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.
Navigation DisplayPilots can also view the live status of the aircrafts, heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualise all nearby obstacles at once with the new obstacle map, so you can be fully informed.

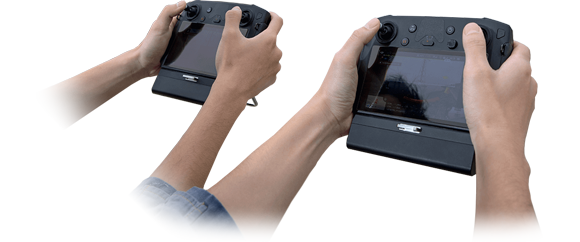

Advanced Dual ControlEither operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.
Safety and Reliability
A Powerful Vision System You Can Rely OnTo enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.
Professional Maintenance for Your Drone FleetThe new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.
Redundancy Systems for Safer FlightsThe M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
More Adaptable Than Ever Before
IP45
Self-Heating Battery
-20°C to 50°C
Anti-Collision Beacon
AirSense ADS-B Receiver
Compatible Payloads
Zenmuse H20Hybrid sensor soluition with LRF, zoom and wide camera
Available Here
Zenmuse H20THybrid sensor solution with LRF, zoom, wide and thermal camera
Available Here
Zenmuse H20NThe Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras
Available Here
Zenmuse P1A 45MP full-frame sensor with 3 lens options for photogrammetry flight missions
Available Here
Third-Party PayloadsFor Specialised missions and tasks
Flight TimeEstimate your M300 RTK's flight time based on the payload configuration.
Purpose Built Applications
DJI PilotDJI Pilot is develped specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimises your flight capability for peak performance
DJI FlightHubDJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.
Leverage the DJI EcoSystem for Extended Solutions
Payload SDKIntegrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors, and more. Payload SDK supports DJI SkyPort, DJI SkyPort V2, and DJI X-Port. These greatly reduce the payload development lifecycle and maximize the potential of your payloads in more diverse scenarios.
Onboard SDKHarness the full computing power of your M300 RTK. Onboard SDK supports customized development of a wide range of features such as 6 Directional Sensing and Positioning, UAV Health Management System, Waypoints 2.0, and more.
Mobile SDKWith a large network of 3rd party mobile applications, you can unlock the capabilities of your drone platform to meet specialized mission needs. Utilizing Mobile SDK, the M300 RTK supports highly customizable mobile app development.
DJI - 'TB60 Intelligent Flight Battery (2 Pack)'
MAINTAIN POWER FOR IMPORTANT TASKSThe 5935mAh high-capacity, hot-swappable TB60 Intelligent Flight Battery lets you change batteries without powering offer, saving time during critical missions and making sure you don’t have to stop any important tasks.

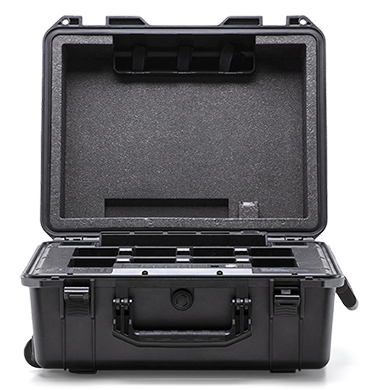

DJI - 'BS60 Battery Station'
BATTERY STATION FOR MATRICE 300DJI’s new Battery Station, is a sophisticated power bank charging solution that manages up to eight flight batteries and four controller batteries, allowing you to take your flights further. The all-in-one charging and storage solution can charge two batteries to full capacity in 60 minutes thanks to its quick charge capabilities.
Drone Laws, Training and Limitations
Registration RequiredRegister via the CAA website. If you have already registered it is mandatory to attach your Operator ID to your UAS/Drone.
LimitationsCAA Limitation for all UAS/Drones flights in UK Airspace Max Operating Height 120m/400ft and Maximum Operating Distance of 500m/visual line of site.
Additional InformationFor more information about Drone Rules & Requirements please read HERE or contact Scan Pro Video for further information on Training Requirements.
Matrice 300 RTK Specification
Features | Specification | Dimensions | Unfolded, propellers excluded, 810×670×430 mm (L×W×H) Folded, propellers included, 430×420×430 mm (L×W×H) |
---|---|
Diagonal Wheelbase | 895 mm |
Weight (with Single Downward Gimbal) | Approx. 3.6 kg (without batteries) Approx. 6.3 kg (with two TB60 batteries) |
Max Payload | 2.7 kg |
Max Takeoff Weight | 9 kg |
EIRP | 2.4000-2.4835 GHz: 29.5 dBm (FCC); 18.5dBm (CE) 18.5 dBm (SRRC); 18.5dBm (MIC) 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE) 28.5 dBm (SRRC) |
Hovering Accuracy (P-mode with GPS) | Vertical: ±0.1 m (Vision System enabled) ±0.5 m (GPS enabled) ±0.1 m (RTK enabled) Horizontal: ±0.3 m (Vision System enabled) ±1.5 m (GPS enabled) ±0.1 m (RTK enabled) |
RTK Positioning Accuracy | When RTK enabled and fixed: 1 cm+1 ppm (Horizontal) 1.5 cm + 1 ppm (Vertical) |
Max Angular Velocity | Pitch: 300°/s, Yaw: 100°/s |
Max Pitch Angle | 30° (P-mode, Forward Vision System enabled: 25°) |
Max Ascent Speed | S mode: 6 m/s P mode: 5 m/s |
Max Descent Speed (vertical) | S mode: 5 m/s P mode: 4 m/s |
Max Descent Speed (tilt) | S mode: 7 m/s |
Max Speed | S mode: 23 m/s P mode: 17 m/s |
Service Ceiling Above Sea Level | 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg) |
Max Wind Resistance | 15 m/s |
Max Flight Time | 55 min |
Support DJI Gimbals | Zenmuse XT2/XT S/Z30/H20/H20T |
Supported Gimbal Configurations | Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals |
Ingress Protection Rating | IP45 |
GNSS | GPS+GLONASS+BeiDou+Galileo |
Operating Temperature | -20°C to 50°C |
