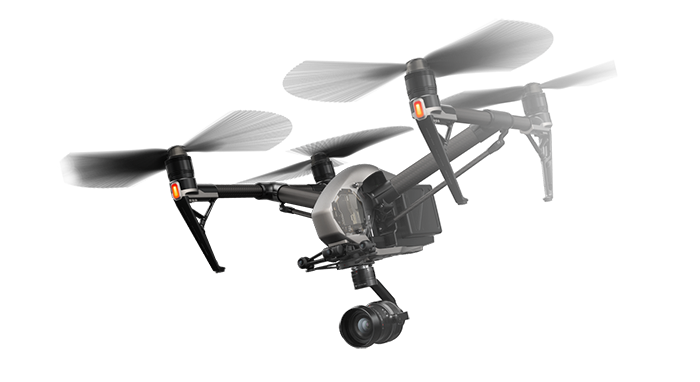

DJI Inspire 2 with 7km Video Transmission and 27 Minute Flight Time

DJI Inspire 2, CP.BX.000168.02, 7km Video Transmission, 27 Minute Flight Time, CineCore2.1

Thumbnail 1 : DJI Inspire 2 with 7km Video Transmission and 27 Minute Flight Time Thumbnail 2 : DJI Inspire 2 with 7km Video Transmission and 27 Minute Flight Time Thumbnail 3 : DJI Inspire 2 with 7km Video Transmission and 27 Minute Flight Time Thumbnail 4 : DJI Inspire 2 with 7km Video Transmission and 27 Minute Flight Time
Scan code: LN110127 Manufacturer code: CP.BX.000168.02
Call for price
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

'Power Beyond Imagination'
DJI - 'Inspire 2'

DJI Inspire 2

'Inspire 2'DJI’s Inspire 1 was revolutionary, as the first filmmaking drone to integrate HD video transmission, 360° rotating gimbal, 4K camera and the simplicity of app control. The launch of the Zenmuse X5 and X5R cameras cemented the Inspire as a critical tool for filmmakers globally.

The updated Inspire 2 follows on from the Inspire 1 and improves on everything that was good about its predecessor. Upgrading the image processing system to CineCore2.1 form CineCore2.0, video recording at up to 6K in CinemaDNG/RAW and 5.2K in Apple ProRes when paired with the Zenmuse X7 camera. The Inspire 2 has unheard of speed and agility for a drone of its size, with a top speed of 58mph and a 0 to 50mph in just 5 seconds along with its maximum descent speed of 9m/s. Featuring a dual battery system to prolong flight time to a maximum of 27 minutes, when paired with a Zenmuse X4S, and self-heating technology allowing flight even in low temperatures.

FlightAutonomy has been revised and developed specifically for the Inspire 2, providing two directions of obstacle avoidance and sensor redundancy. Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots. An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPV camera and the main camera simultaneously, for better pilot and camera operator collaboration.

7 kmVideo Transmision

58 mphMax Speed

27 minMaximum Battery Life


Whats Included

• Inspire 2 Aircraft
• 2 x Intelligent Flight Battery
• Battery Charging Hub
• Remote Controller
• 4 x Propellers (pair)
• Power Cable
• DJI Charger

• Vision System Calibration Plate
• Propeller Mounting Plates (pair)
• 4 x Battery Insulation Sticker
• MicroSD Card (16GB)
• 3x Gimbal Damper
• Carrying Case
• USB Cable

Inspire 2 at a Glance

DJI Inspire 2

AircraftStructure: Magnesium aluminium composite shell and transforming design, carbon fibre arms
Configuration: Vision sensing, 2-axis FPV camera, range of supported cameras
Propulsion: 58mph (94kph) max speed, 2kg of thrust per rotor, 15-in props, 23-min* flight time with X7, 27-min* flight time with X4S
Battery: Dual battery, self-heating, battery redundancy, 98Wh

DJI Inspire 2

Image ProcessingImage Processing and Storage: 6K RAW @ 4.44Gbps* video recording, all-new CineCore 2.1, integrated DJI CINESSD.
File System: FAT32/exFAT universal file system.
Video Format: 6K CinemaDNG* and 5.2K Apple ProRes video support, H.265 and H.264 video codec support,
4K video at 100 Mbps. Recorded video can be stored simultaneously on the DJI CINESSD and a Micro-SD card.
*Zenmuse X7 camera required.

DJI Inspire 2

Remote ControllerLightbridge Technology: Signal frequency switching between 2.4GHz 5.8GHz. Lightbridge technology.
Controllable Range: 4.3mi (7km)*
Primary-Secondary Mode: One primary and one secondary supported.
Multilink required when using multiple secondary controllers.
Ports: Extension port, HDMI port, USB port.
*Unobstructed, free of interference, when FCC compliant.

Professional Aerial Photo & Video

DJI Inspire 2

Professional Image QualityIntegrated into the Inspire 2 is the brand new CineCore2.1 image processing system, which is capable of recording video in 6K @4.44Gbps CinemaDNG*1 , 5.2K @2.08Gbps Apple ProRes*2, and H.264/H.265 @100Mbps. CineCore2.1 supports burst shots, capturing 10 JPEG + DNG bursts and continuous DNG bursts*3 at 20 fps (24MP per shot) when the Zenmuse X7 is mounted. (Currently compatible with the X7, X5S and X4S*4. Please refer to Specs for the supported video formats of each camera).

*1 Additional Licences Required.
*2 DJI CINESSD required for CinemaDNG continuous burst.
*3 X4S does not support DNG RAW or Apple ProRes.


Efficient WorkflowThe Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT* file systems, which allow fast copying of files direct from the CINESSD without additional software.
* Coming soon.

DJI Inspire 2

Sense and Avoid Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph) at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces.
Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.These sensors are core components of the DJI FlightAutonomy system, which brings these intelligent features to the Inspire 2:

• Terrain Detecion
• Upward obstacle avoidance
• Forward obstacle avoidance
• Accurate indoor hovering & positioning
• Automatic obstacle avoidance during RTH

DJI Inspire 2

Intelligent Flight Modes

Spotlight ProSpotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in Intelligent Flight Modes TapFly, Waypoint, and Point of Interest.

DJI Inspire 2

Intelligent Flight modes In addition to SpotlightPro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimised when using Point of Interest* and Waypoint* modes, making more complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.

DJI Inspire 2

TapFlyThe 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.

DJI Inspire 2

ActiveTrackThe ActiveTrack Mode allows the Inspire 2 to recognise a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

DJI Inspire 2

Smart Return to HomeForward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return to Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

7km HD Video Transmision

DJI Inspire 2

Video Transmission SystemThe latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km)* and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.

Primary and Seconday ControllersA new wireless HD image transmission technology sends video information from the primary controller to the secondary controller and the two controllers can be up to 100m apart without loss of image quality.**

*Unobstructed, free of interference, FCC compliant.
**5.8GHz Transmission is not available in some regions due to local regulations.

A New Level of Flight Performance

DJI Inspire 2

Powerful FLight PerformanceA new propulsion system optimised for power creates a new level of flight performance. The Inspire 2 flies at up to 58mph (94kph) descends at 9m/s and ascends at 6m/s. It can accelerate from 0 to 50mph (80kph) in just 5 seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers), and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.


Increased ReliabilityReliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.

The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision.

Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.

This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.

DJI Inspire 2
DJI Inspire 2

Dual-Signal
Propulsion System

DJI Inspire 2

Dual-Battery
Design

DJI Inspire 2

Dual IMU &
Dual Barometer

DJI - 'Introducing the Inspire 2'

'Setting the Stage for More Filmmakers to take to the Sky'The DJI Inspire 2 is the next evolution of professional aerial cinematography. New cameras, sensors, and intelligent features make the Inspire 2 the definitive aerial cinematography solution.

Always follow applicable rules and regulations in your jurisdiction. Permits were obtained, where needed, in locations depicted in this video.

The Tech Spec

Features Specification
Weight 3440 g (including propellers and two batteries,
without gimbal and camera)
Max Takeoff Weight 4250 g
GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet
(0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet
(0.3 m, Downward Vision System enabled)
MAx Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40°
Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s) S-mode: 19.7 ft/s (6 m/s)
Max Descent Speed Vertical: 13.1 ft/s (4 m/s) Tilt: 13.1-29.5 ft/s (4-9 m/s)
Max Takeoff Sea Level 2500 m
5000 m (with specially-designed propeller)
Max Flight Time Approx. 27min (with Zenmuse X4S)
Approx. 23min (with Zenmuse X7)
(Hovering at sea level with no wind.)
Motor Model DJI 3512
Propeller Model DJI 1550T
Indoor Hovering Enabled by default
Operating Temperature -20° to 40°C
Diagonal Distance
(Propellor excluded)
605 mm, Landing Mode
Max Speed 58mph or 94mph in Sport Mode
Specifications
Legal Max Height in the UK 400 ft
Max Flight Time 27 minutes
Weight (with payload) 4250 grams
Weight (without payload) 3440 grams
Camera Included No
Megapixels N/A MP
Still Image Resolution N/A
Video Resolution N/A
Storage Support
CAA Registration Needed? Yes
Includes
Included in the Box
  • Aircraft Body
  • Battery
  • Battery Charging Hub
  • Carry Case
  • Charger
  • Gimbal Protector
  • Intelligent Flight Battery
  • Power Cable
  • Propellers (Pair)
  • Remote Controller
Additional Information
Scan Code LN110127
Model Number CP.BX.000168.02
GTIN 6958265121951
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
