Scan code: LN110784 Manufacturer code: R-AS500-BKNLMP-G


DEEPCOOL AS500 PLUS, RGB, 2x 140mm PWM Fan, Single Tower, Aluminium Fins, 5x Copper Heatpipes, Intel/AMD

Thumbnail 1 : DEEPCOOL AS500 PLUS RGB Intel/AMD CPU Cooler Thumbnail 2 : DEEPCOOL AS500 PLUS RGB Intel/AMD CPU Cooler Thumbnail 3 : DEEPCOOL AS500 PLUS RGB Intel/AMD CPU Cooler Thumbnail 4 : DEEPCOOL AS500 PLUS RGB Intel/AMD CPU Cooler
Scan code: LN110784 Manufacturer code: R-AS500-BKNLMP-G
Order now and get it tomorrow, Wed 25th May
Get it Tomorrow, 25 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Deepcool AS500 PLUS dual fan Single Tower CPU Cooler


Elevated Cooling Performance The Deepcool AS500 PLUS is a powerful dual fan single-tower CPU Cooler boasting a 5 heat pipe design with 2x 140mm TF140S PWM fans to bring you exceptional performance in a slim profile. With its solid copper base, maximum RAM height design and high fin density tower the AS500 PLUS has been designed with optimal surface contact to give you highly efficient cooling performance and with an included A-RGB LED you also have quick and easy control over your lighting effects with installing additional software. If your looking for a single tower cooler, look no further than the Deepcool AS500 PLUS.

2x 140mmFan Diameter

500 ~ 1200 RPMFan Speed

31.5 dB(A)Maximum Fan Noise

6mm x 5Heatpipes

Keep Your Temperatures Under Control

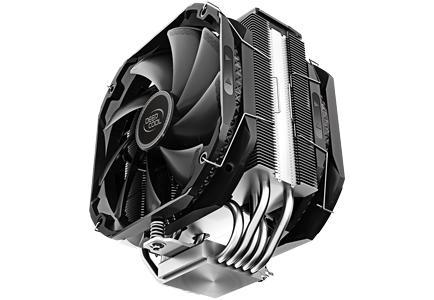

Dual High Performance FansThe AS500 PLUS houses two TF140S PWM Fans, these fans provide precise control between extreme cooling or low-noise operation with long-life durability allowing you get on with your daily tasks with minimal distractions. With a RPM range between 500 ~ 1200 RPM and an airflow measurement of 70.81CFM you can rest assured that the AS500 PLUS has what it takes to keep your CPU powering on.

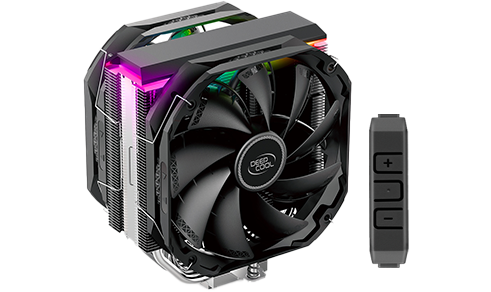

Fast Control of Your Lighting Effects

ARGB Controller

A-RGB LED CONTROLLERThe AS500 PLUS includes a wire controller than allows you to adjust your lighting efects without installing additional software. Appropriate A-RGB connector cables for motherboard control are also provided.

Cooler Specifications
Edition AS500 PLUS
Cooler Form Factor Single Tower
Heatpipes 5
Cooler Features
  • Addressable RGB Lighting
  • Aluminium Fins
  • Copper Base
  • Nickel-Plated Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 2011
  • 2011-3
  • 2066
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 140mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting Addressable RGB Cooler Shroud
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 1200 rpm
Max. Fan Airflow 70.81 CFM
Max. Air Pressure 1.14 mm H²O
Max. Sound Level <29.2 dBA
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions 140 x 159 x 49 mm (WxHxD)
Total Dimensions 142 x 164 x 102 mm (WxHxD)
Weight 1198 g
Additional Information
Scan Code LN110784
Model Number R-AS500-BKNLMP-G
GTIN 6933412727071

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
3 months
Manufacturer Contact Details
Beijing Deepcool Industries CO
Scan 0871 472 4747
