DEEPCOOL AK400 Single Tower Performance CPU Cooler

DEEPCOOL AK400 CPU Cooler

Performance CPU Cooler The DeepCool AK400 is a highly compatible CPU cooler featuring a classic four heat pipe tower layout with a unique matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise level.

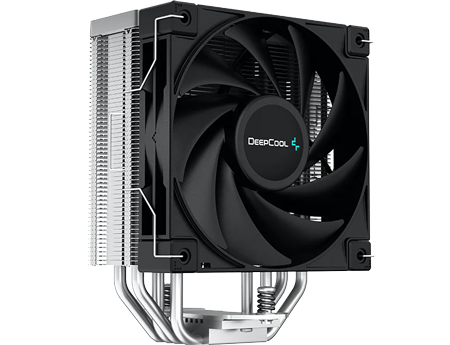

Premium Compatibility

Premium Compatibility

220W cooling performance Featuring up to 220W of heat dissipation efficiency, the exceptional cooling performance of the AK400 on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio.

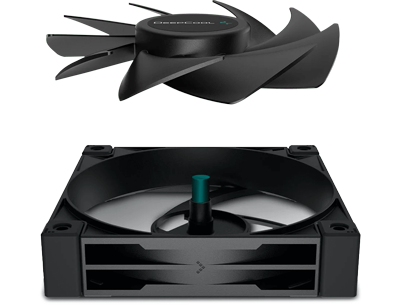

Fluid Dynamic Bearing Fan

fan

High performance, quiet airflowAchieve high-performance cooling with minimal noise levels thanks to the high-performance FDB fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.


Fan Specs
29 dBA – Full Load Noise Output
500-1850 RPM – Dynamic PWM Range
50,000 Hours – Long Operational Lifespan

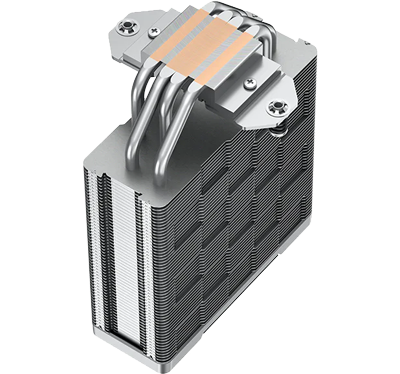

Advanced Heat Dissipation

heatpipes

Great heat dissipationFour direct touch copper heat pipes rapidly transfer heat away from the processor effectively and dissipate through a single fin stack tower with a unique matrix array design.

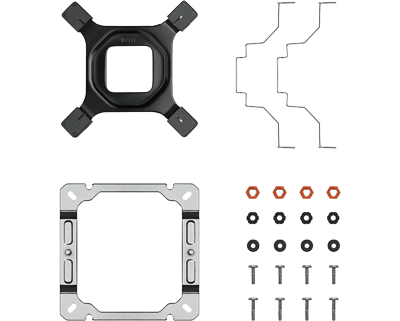

Simple and Secure Installation

install

quick five-step processThe improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.

Install on both Intel and AMD Platforms

video image
Specifications
Cooler Specifications
Edition AK400
Cooler Form Factor Single Tower
Heatpipes 4
Cooler Features Direct Contact Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 1700
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin PWM
Max. Fan Speed 500 ~ 1850 +/- 10% rpm
Max. Fan Airflow 66.47 CFM
Max. Air Pressure 2.04 mm H²O
Max. Sound Level 29 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 120 x 152 x 45 mm (WxHxD)
Total Dimensions 127 x 155 x 97 mm (WxHxD)
Weight 661 g
