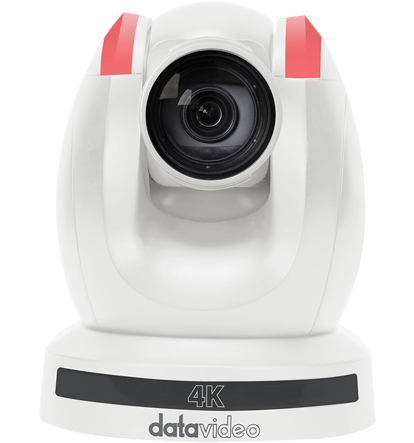

Datavideo - 'PTC-280NDI PTZ Camera' (White)

Datavideo PTC-280NDI PTZ Camera White

4K NDI PTZ CameraIntroducing the Datavideo PTC-280NDI professional NDI PTZ cameras help you capture your event. PTC-280NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol), Sony VISCA over IP or any NDI controller.

This brand new 4K NDI camera supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Advanced 2D/3D Noise Reduction

Datavideo PTC-280NDI PTZ Camera White

Low Noise in Low LightAdvanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Video Outputs

Datavideo PTC-280NDI PTZ Camera White

Multiple Simultaneous video OutputsSupports simultaneous HDMI 2.0 and IP output up to 2160p50/60 and also 3G-SDI output up to 1080p60/50.

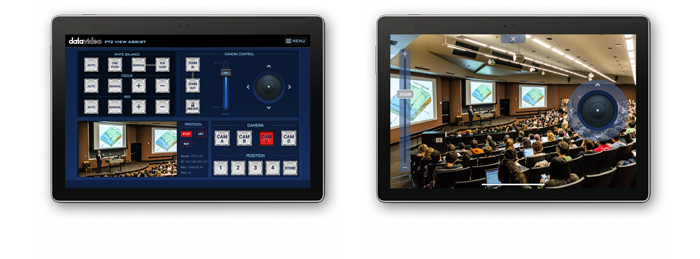

PTZ View Assist

Datavideo PTC-280NDI PTZ Camera White

Control up to four camerasThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, and PTC-280 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free.

RTSP and RTMPS Protocol Support

Datavideo PTC-280NDI PTZ Camera White

Multiple Network Protocol
with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Multiple Control Options

Datavideo PTC-280NDI PTZ Camera White

Compatible with Various ControllersControl real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

Datavideo PTC-280NDI PTZ Camera White

RS-422, DVIP and Ethernet Camera controlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

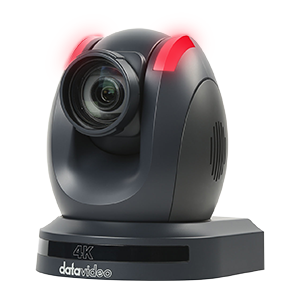

Built-in Tally Light

Datavideo PTC-280NDI PTZ Camera White

Tally LightGreen and red lights tally to show the preview and program status for broadcast applications.

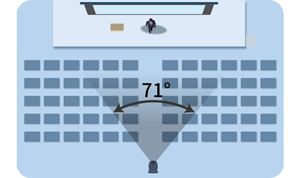

Wide Field of View

Datavideo PTC-280NDI PTZ Camera White

Wide 71° Field of ViewPTC-280 provides a wide Field of View of 71°, easily shooting all the scenes in the field.

H.264/H.265 Support

Datavideo PTC-280NDI PTZ Camera White

Supports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

NDI® | HX Technology

Datavideo PTC-280NDI PTZ Camera White

One Ethernet Cable with NDI® | HX TechnologyThere is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.

NDI® is a registered trademark of Newtek, Inc.

Datavideo PTC-280NDI PTZ Camera White

NDI® Virtual InputPresent PTC-280NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

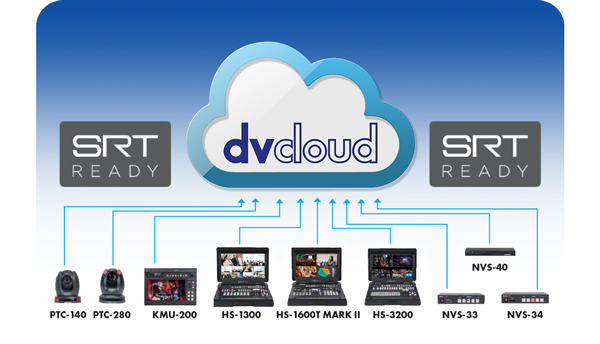

SRT and dvCloud Support

Datavideo PTC-280NDI PTZ Camera White

Build a reliable SRT live streaming workflow with all Datavideo productsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.

By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favourite destinations, like Facebook and YouTube.

The Tech Spec

Features Specification
Video format/resolution HDMI: 2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50

SDI: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50

(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor 1/2.5" CMOS
Effective Pixels (approx.) 8.51 Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 12x Optical Zoom, 16x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions 2D / 3D
On-Screen Display English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255
Focal Length 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View
(Horizontal, Wide)
71°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input 3.5mm x1
Control Protocol Pelco-D, Peldo-P, VISCA, VISCA over IP DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP, NDI
Remote Control Interface IR, Web UI, RS-422, DVIP, NDI
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
Specifications
Mega Pixel 8.51
Resolution (Still Image)
Resolution (Video) 3840x2160 (Ultra HD)
Live Video Frame Rate 60 fps
Zoom
  • 16 x Digital
  • 12 x Optical
LCD Display No
Sensor Type 1/2.5" CMOS
Dynamic Range
Connectivity
  • 3.5mm Stereo Mic/Line In
  • 3G-SDI Out
  • HDMI 2.0
  • RJ45
  • USB 2.0
Onboard Memory
Storage Type
Image Formats Supported
Video Formats Supported
  • H.264
  • H.265
  • MJPEG
  • WMV
Shooting Modes
Weight 2800 g
Dimensions 173 x 219 x 189.08 (WxHxD mm)
Colour White
