PTZ Bundle PTC-140T and also includes HS-1600T
Datavideo PTC-140T - 3 Camera kit with HS-1600T
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
'DataVideo' Bundle
'PTC-140T' - 3 Camera Kit inc. 'HS-1600T'
The World’s first single wire
switcher with built-in encoder

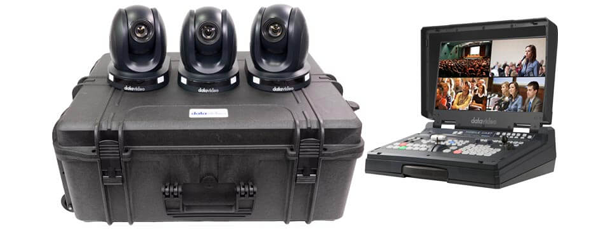

The Datavideo PTZ bundle, centred around the ‘PTC-140T’ and comes with the powerful ‘HS-1600T’ portable studio. The PTC-140T is a wallet-friendly HDBaseT PTZ camera, featuring 20x optical zoom, 10 digital zoom. The PTC-140T is also an IP camera too, supporting H.264/H.265 video compression and dual stream output.
The HS-1600T Portable Video Studio is fully supportive of Full HD 1080P and is designed for religious, education and AV markets. Its built-in HDBaseT technology can receive Full HD 1080p signals from PTC-140T via CAT6 cable (maximum distance 100 meters). It's also equipped with the PoE solution to provide power to three PTC-140T. The HS-1600T features a joystick control for Panning, Tilt and Zoom of the PTC-140T.
Furthermore, the HS-1600T also allows the user to adjust the cameras Focus, IRIS and other settings. HS-1600T features easy-to-use video streaming and recording for users who need to simultaneously stream a live event and record the master quality version for post-event editing.
what's included?
• 3x PTC-140T HDBaseT PTZ Camera
• Heavy duty case with rubber seals to protect valuable equipment from water & dust
• Custom foam hardcase
• HS-1600T HDBaseT 4 input Portable Video Studio
Made for Mobility. Made for the Web.

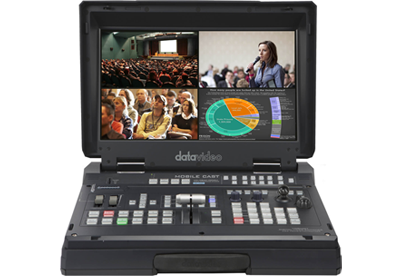

Datavideo HS-1600T
Video Streaming StudioThe World's first single wire switcher with built-in encoder.
The HS-1600T is a 6-in-1 product that will simplify your workflow. It is a portable HDBaseT hand carried studio that has a switcher, monitor, camera controller, audio mixer, streaming encoder, and recorder built in.
The built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150TL or PTC-140T HDBaseT PTZ cameras via CAT6 cable. It features PoE to provide power to three PTC-150TL or PTC-140T cameras, making installation fast and easy. Keeping things user friendly, you only need to push one button to stream to your preferred CDN and record to a SD card simultaneously.
Another great feature of the HS-1600T is the integrated joystick for controlling the pan, tilt, and zoom of the PTC-150TL cameras. You can also adjust focus and iris, as well as access the camera's menu. There are four preset buttons for each camera, making it easy for an operator to recall preset shots with a press of a button.
The all inclusive features of the HS-1600T make it ideal for various applications such as live events, worship, seminars, and corporate presentations.
at a glance
• Support Full HD 1080P
• HDBaseT Portable Video Studio with PTZ Control and built in encoding
• PoE - Power to PTC-150T or PTC-140T by PoE technology
• Pan, Tilt and Zoom with speed control using Joystick
• Control Iris, Focus, Gain and other functions of PTC-150T or PTC-140T camera
• Broadcast quality HD / SD H.264 network streaming
• Supports different bitrate for recording and streaming
• Built-in HDBaseT technology - connect three PTC-150T or PTC-140T HDBaseT PTZ Cameras via CAT6 cable or higher
PTC-140T
20x Optical ZoomThe PTC-140T is a cost-effective HDBaseT PTZ camera featuring PoE, a built-in streaming encoder, and 20x optical zoom. All signals, power and control data travel through a single CAT6 (“network cable”) and can reach a distance up to 100 meters.
The PTC-140T's on-board streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo’s own DVS-200. The PTC-140T is compatible with HDBaseT portable studios such as the HS-1500T and HS-1600T and controllers like the RMC-300 and RMC-180.
'HS-1600T' Tech Spec
| Features | Specification | Video Standard | HD & SD |
|---|---|
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz |
| Video Input | 3 x HDBaseT 1 x HDMI |
| Video Output | 3x HDMI PGM 1x STREAM (RJ-45) |
| Audio Input | 2x Balanced XLR 1x Stereo RCA (L/R) De-embedded Digital Audio |
| Audio Output | 1x Stereo headphone |
| Dimension (LxWxH) | 455 x 355 x 134 mm |
| Weight | 17.2 Lbs (7.8 Kg), Reinforce Plastic Case |
'PTC-140T' Tech Spec
| Features | Specification | Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
|---|---|
| Sensor Resolution | 1920 x 1080 (2.07 MP) |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance Range | 3000 to 6500K |
| Max Digital Zoom | 10x |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Optical Zoom Ratio | 20x |
| Focal Length | 5.2 to 98mm |
| Field of View | Horizontal: 54.7 to 3.3° |
| Maximum Aperture | 20x |
| Optical Zoom Ratio | 20x |
