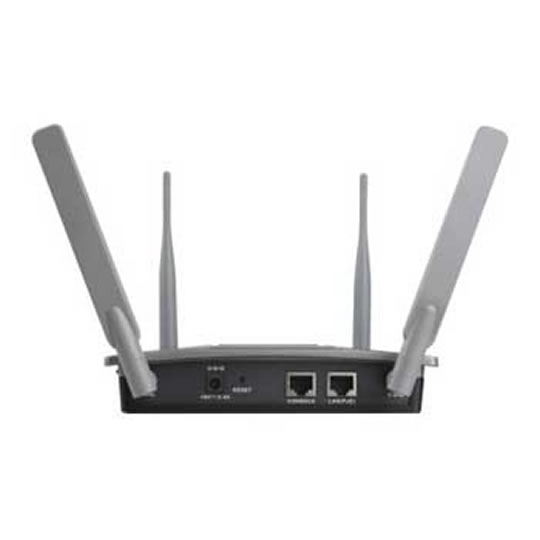

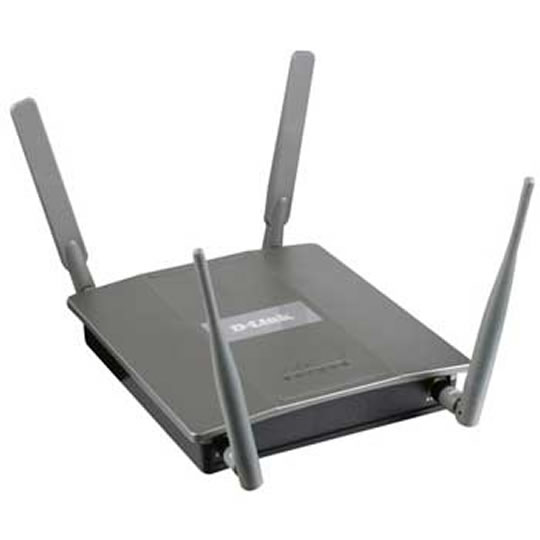

11n Access Point Dual Band with Gigabit POE Port - DLink DAP-2690/B

D-Link Wireless N Simultaneous Dual-Band PoE Access Point

D-Link
Scan code: LN39849 Manufacturer code: DAP-2690/B Request call
£244.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview The D-Link DAP-2690 AirPremier N Quadband PoE Access Point provides businesses with a solution for deploying next generation 802.11n Wireless Local Area Networks (WLANs). Designed for indoor installation, this Access Point enables network administrators to deploy a highly manageable, robust and secure wireless network.
The DAP-2690 provides industrial grade wireless security by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i). A RADIUS server is built-in, so administrators do not need to invest in an external resource. This Access Point supports up to 8 VLANs for implementing multiple service set identifiers (SSIDs), effectively segmenting users on the network. With multiple SSIDs, the number of APs required is reduced and costs kept to a minimum. The DAP-2690 also includes a wireless client isolation mechanism to prevent direct client-to-client communication. Other features include MAC Address Filtering, Disable SSID Broadcast and rogue AP detection to further protect your wireless network. Additionally, the DAP-2690 supports Network Access Protection (NAP), a feature of Windows Server® 2008. NAP allows network administrators to define multiple levels of network access based on individual client's need. If a client is identified outside of their access area, the client will be automatically brought back to their permitted network access level.
Features • Simultaneous Wireless N performance in the two frequency bands 2.4 GHz and 5 GHz
• Plenum-rated metal chassis
• 1 Gigabit port with 802.3af Power over Ethernet (PoE)
• 5 operation modes
• Traffic Control / Quality of Service
• Internal RADIUS server: up to 100 accounts
• WLAN partition with multiple SSIDs
• Microsoft NAP support
• Power-saving D-Link Green technology through a unique Wireless Scheduler
Specifications
Specifications
CPU
LAN Type
  • 10/100/1000
  • Wireless LAN
Wireless LAN Yes
Type N/A
Number of WAN Connections 1
Number of LAN Connections
Wireless Speed 300 Mbps
Wireless Band
Frequency
Wireless Standards
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Aprox Wireless Range (m) N/A
UPnP Support No
Other Connectors N/A
Firewall/NAT No
WDS Yes
Security
  • WPA
  • WPA-AES
  • WPA2
  • WPA2-PSK
Wireless Transmitter Power N/A
Wireless Transmitter N/A
Antenna
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
28 days
