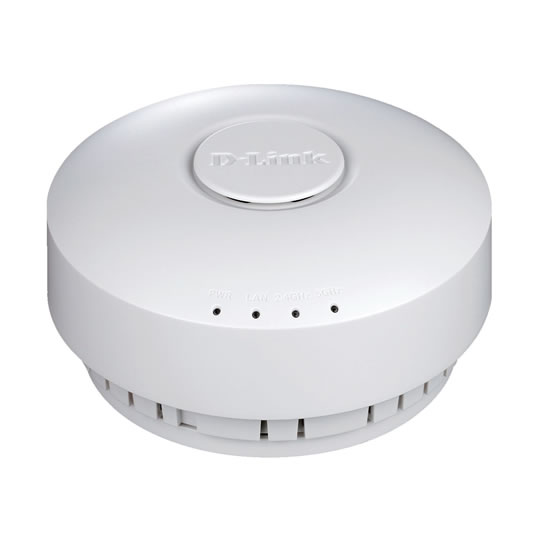

D-Link DW-6600AP Access Point with Dual-band 2.4GHz / 5GHz Support, PoE Enabled 1x Gigabit Lan

D-Link Unified Wireless 11N Dual Band PoE Band Access Point

D-Link
Scan code: LN43135 Manufacturer code: DWL-6600AP Request call
£155.48
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 22nd Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The DWL-6600AP Wireless N Dualband Unified Access Point is a best-in-class indoor AP designed specifically for business environments. With high data transmission speeds and a load balancing feature, the DWL-6600AP offers high-quality and reliable wireless service. Versatile and powerful, the DWL-6600AP can be flexibly deployed as a standalone wireless Access Point or as a managed Access Point controlled by a D-Link’s DWC 1000 Wireless Controller. Businesses can start with standalone mode deployment, then migrate to a centrally managed system anytime later.

Enhanced Performance
The DWL-6600AP delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in either the 2.4 GHz or 5 GHz mode. Support for Wi-Fi Multimedia™ (WMM) Quality of Service features makes the DWL-6600AP an ideal Access Point for audio, video, and voice applications. In addition, the load balancing feature ensures maximum performance and best service quality in the wireless environment.

Self-Configuring Cluster
For small businesses that need to deploy multiple Access Points but lack the resources to tackle the complicated task of network management, the DWL-6600AP’s self-configuring cluster feature offers the ideal solution. When a small number of DWL-6600APs is deployed on the network, they may be configured to form a self-configuring cluster. Once the administrator is through with configuring one Access Point, the same configuration can then be applied to all remaining APs. Up to 16 APs may be used to form a cluster.

Unified Management
Alternatively, the DWL-6600AP can operate in conjunction with D-Link’s DWC-1000 Wireless Controller. In this mode, multiple DWL-6600APs can connect directly or indirectly to one of these switches/controllers to provide unparalleled security and wireless mobility for wireless clients. Each DWL-6600AP will be continually tuned by these switches to provide the optimal RF channels and transmission power for all mobile clients, giving them the best wireless signals in both 2.4 GHz and 5.0 GHz bands and uninterrupted wireless connectivity.

Security
The DWL-6600AP supports the latest standards in Wi-Fi security, including WEP, WPA, WPA2, and 802.1X. In addition, the DWL-6600AP supports up to 16 virtual Access Points (VAP) per radio, for a total of 32 VAPs, which allows the administrator to assign different access privileges to different groups of users. When Station Isolation is enabled, the AP blocks communication between wireless clients on the same radio and VAP. Rogue APs in the network may be easily detected, and the administrator will be immediately notified of any security threat. When used together with D-Link’s Wireless Controller, the security can be raised to a new level.

Convenient Installation
With an embedded antenna and simple styled exterior, the DWL-6600AP can be installed on a wall or ceiling and blends in with most interior decorations in an office. Enclosed in a plenum-rated chassis, the DWL-6600AP adheres to strict fire codes for placement in air passageways. For easy installation, the DWL-6600AP has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.

3rd party support
The DWL-3600AP supports AirMagnet™, one of the industry’s most accurate software solutions for planning, designing and troubleshooting wireless networks for optimal performance, security and compliance. AirMagnet™ calculates the ideal quantity, placement and configuration of APs for a successful WLAN deployment. It also allows IT administrators to test and diagnose wireless performance issues. Additionally, a RFID-based location tracking system is supported with Aeroscout™ technology. Aeroscout™ allows tracking of persons, objects and assets by means of RFID tags which have built-in location capabilities. This is especially useful within healthcare, manufacturing and security sectors.

Data Sheet
Features • Centrally manageable via D-Link’s DWC-1000 Wireless Controller
• Concurrent dualband: works in 2.4 and 5 GHz simultaneously
• Standalone mode for small deployments
• 802.11n connectivity for increased network capacity
• Up to 300 Mbps wireless speeds
• 1 Gigabit Ethernet port with PoE for convenient installation
• AP Clustering function for deployments that don’t require a centralised controller
• Integrated RFID recognition for Aeroscout™ devices to track wireless clients
• AirMagnet™ support for WLAN planning, surveying and troubleshooting
• VLAN support
• WMM™ (Wireless Multi Media) to prioritise audio, video and voice applications
• Enhanced security with RADIUS support
• Load Balancing function to optimise high network traffic volume and redundancy
Specifications
Networking, Connectivity & Ports
Model
Device Type N/A
Compatible Internet Connections
Network Connectivity Wireless LAN
Network Ports
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
Wireless
Wireless Speed N/A
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 803.3u
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal Flash Memory
LED Indicators
Buttons
OS Support
Security & VPN
Security Protocols
  • WPA
  • WPA2-Enterprise
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
D-LINK
Telephone:
0845 612 0003/0871 873 3000
