Dr. Mix Inspired Video Editing Workstation powered by NVIDIA and AMD

Custom Built Dr. Mix Video Workstation

Thumbnail 1 : Dr. Mix Inspired Video Editing Workstation powered by NVIDIA and AMD Thumbnail 2 : Dr. Mix Inspired Video Editing Workstation powered by NVIDIA and AMD Thumbnail 3 : Dr. Mix Inspired Video Editing Workstation powered by NVIDIA and AMD Thumbnail 4 : Dr. Mix Inspired Video Editing Workstation powered by NVIDIA and AMD
Scan code: LN116993 Manufacturer code:
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

NVIDIA RTX promotion

You Dream it. We Build it.

Gears of War PC

A unique and custom system doesn't always have to be water-cooled to get an incredible looking machine. Working with Dr Mix and AMD, we've designed a system that performs as good as it looks.


The client required a red system to match his branding but in a matte finish to help prevent glare during filming and with that information we set out to design and make a stunning system that ticked all the right boxes.

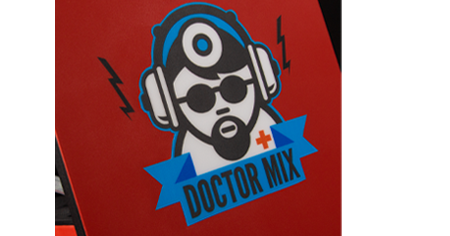

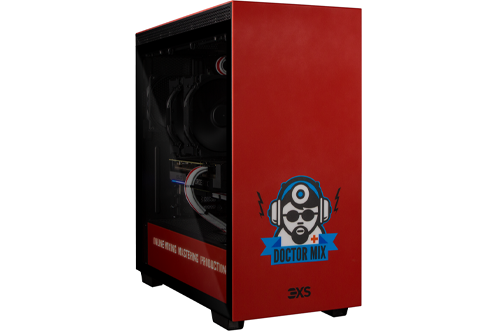

Using the amazingly versatile NZXT H710 as a baseline, an automotive grade paint was applied to the front and the top with a custom vinyl inlaid and finished with a matte lacquer to give an eye-catching bespoke look.

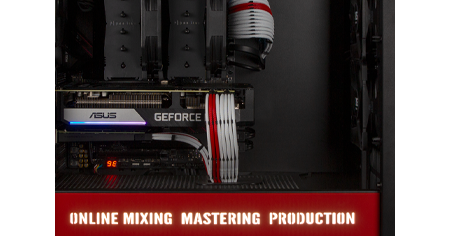

Internally, the team took the tag line "Online Mixing, Mastering, Production" and had that cut into the PSU shroud, back lit and painted to colour match the system.

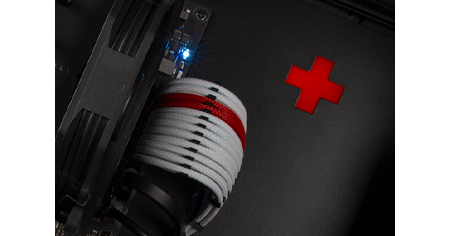

An internal backplate was made to give a clean minimalist appearance alongside in-house custom cables complete the internals of the system.


The spec of the system has been carefully selected to fit the client’s criteria of a powerful, quiet system used for video editing.


At the heart of the system is the incredible AMD Ryzen 9 5900X which is cooled by the flagship Noctua NH-D15 Chromax CPU cooler.


An ASUS GeForce RTX 3070 DUAL OC GPU provides plenty of power for video editing and with 64GB of DDR4 RAM, a Samsung 1TB 980 PRO M.2 PCIe 4.0 NVMe SSD and a 512GB Intel 660P M.2 NVMe, there's plenty of fast memory to be used and all this nicely installed on a ASUS ROG STRIX B550-E motherboard.


Altogether from specification to final product the system is a one of a kind, incredible looking PC built to perfection by the 3XS team.

Unique

We offer hundreds of pre-built PCs or can craft you a unique PC to your requirements. Our customisation services include the following:

PC Branding

personal touch Choose the look and feel of your PC, including custom artwork and different materials.

Custom watercooling

Colour Scheme We can customise the case, internal components and cabling of the PC in your chosen colour scheme.

GPU Waterblock

your Design Send us your artwork or engage with our graphics designers and we can sandblast, laser etch and even airbrush your design onto practically any surface and most of your components

Design your Dream PC now

call or e-mail 3xs for any queries

Order your custom 3XS Video Workstation today. Email our team at [email protected], telephone 01204 474747 to discuss your requirements or visit our online configurator.

Key Features

CINEBENCH R20
AMD PROCESSOR

CPUs do most of the compression/decompression of codecs. Not all codecs scale across multiple cores well so having both a high clock speed & core count is important.

CINEBENCH R20
NVIDIA Graphics Card

Most video processing is handled by the GPU. Everything from noise reduction through to image scaling tends to benefit from more GPU memory.

NVMe Storage
NVME STORAGE

RAW data rates can easily exceed the speed of SATA drives. Ultra-fast NVMe storage eliminates this.

Thunderbolt
DUAL THUNDERBOLT™ 3

2x Thunderbolt 3 ports offer a total of up to 40 Gbps of aggregate interface bandwidth.

Specifications

Component Description
Chassis Fully customised NZXT H710
Motherboard ASUS ROG STRIX B550-F
Processor AMD Ryzen 9 5900X, 12C/24T, 3.7GHz – 4.8GHz
Cooling Noctua NH-D15 chromax.black
Memory 64GB (2x32GB) Corsair Vengeance LPX 3600MHz DDR4
Graphics Card 8GB ASUS GeForce RTX 3070 DUAL OC
Power Supply Corsair RM750x - 80PLUS GOLD
System Drive 512GB Intel 660p NVMe M.2 SSD
Storage Drive 1TB Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD
Operating System Microsoft Windows 10 Pro 64bit

Why buy a 3XS Video Workstation?


Anyone can build a PC, so what really makes the difference between any old PC and a 3XS PC? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. Here are the key reasons to buy a 3XS Video Workstation.

7 Days Support 7 Days Support

Our engineers are available 7 days a week to help with any queries.

FIND OUT MORE
Awards and Reviews Trusted by you

3XS Video Workstations have won hundreds of awards in the media.

VIEW ALL REVIEWS
Next-day Delivery Next-day delivery

3XS Video Workstations are pre-built and tested in our factory to be delivered next-day.

VIEW NEXT-DAY PCs
3 Year Warranty 3 years warranty

3XS Video Workstations include a three-year warranty, so if anything goes faulty we’ll repair or replace it.

FIND OUT MORE
Returns 30 Day return Policy

If you’re not totally satisfied with your 3XS Video Workstation you can return it up to 30 days after delivery.

FIND OUT MORE
Specifications
Processor
CPU Type AMD Ryzen™ 9
CPU Model 5900X
Professionally Overclocked No
CPU Speed 3.7 GHz
CPU Boost/Turbo Speed 4.8 GHz
CPU Overclock Speed
CPU Cores 12 Core
CPU Threads 24
CPU Cooler Air Cooler (Heatsink + Fan/s)
Motherboard
Motherboard Chipset AMD B550
Motherboard Form Factor ATX
RAM Memory
Memory 64GB (2x32GB)
Memory Type DDR4
Memory Speed DDR4 - 3600(OC)
Empty DIMM Slots
Graphics
Graphics NVIDIA
Graphics Chipset GeForce RTX 3070
GPU Cores/Streams 5888
GPU Core Clock 1500 MHz
GPU Boost Clock 1755 MHz
GPU Memory 8GB
GPU Memory Type GDDR6
GPU Memory Clock 14000 MHz
Memory Bit Rate 256 Bit
Maximum Supported Displays 4 Displays
Storage Drives
SSD Boot Drive Installed Yes
SSD Boot Drive Type M.2 PCIe (NVMe)
SSD Boot Drive Capacity 512 GB
Hard Drive Installed No
Hard Drive Type
Hard Drive Capacity
Maximum 2.5" Bays
Maximum 3.5" Bays
Additional Specifications
Operating System Windows 10 Pro (64 bit)
Wireless LAN Yes
PSU Wattage 750 W
Colour Red
Case Form Factor ATX
Dimensions (Tower) 230 x 516 x 494 mm (WxHxD)
Optical Drive
Benchmarks
Cinebench R20 Single Thread
Cinebench R20 Multi Thread
Blender BMW CPU Render
Blender BMW GPU Render
Blackmagic RAW Speed Test 8K CPU
Blackmagic RAW Speed Test 8K CUDA
System Disk Test Read
System Disk Test Write
I/O
Back Panel
Front / Side Panel
Additional Information
Scan Code LN116993
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
Manufacturer Contact Details
Telephone:
01204 474756
