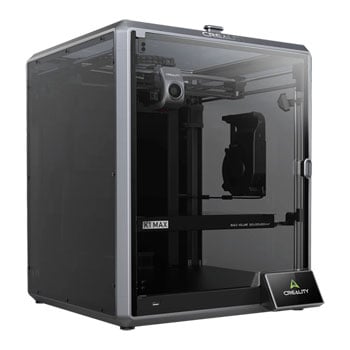

Creality K1 Max 3D Printer

High-Speed Core Performance

The Creality K1 Max delivers up to 600 mm/s printing speed with 20000 mm/s² acceleration, achieving “12X Faster” performance compared to a regular 3D printer. It reaches a typical speed of 300 mm/s, with travel speed up to 800 mm/s, supported by a Core XY motion system and a 190 g lightweight printhead for reduced inertia and fast movement response.

Extrusion System & Thermal Capability

The printer features a dual-gear direct extruder with a ceramic heater encircling the hotend, reaching 200°C in 40 seconds and supporting up to 300°C operation. A titanium alloy heatbreak and hardened steel nozzle support high-temperature printing, while the system delivers up to 32 mm³/s flow for sustained extrusion performance.

Cooling & Print Stability

Dual cooling fans improve print quality, including a printhead fan with air ducts and an 18W auxiliary chamber fan. This system rapidly cools models to reduce stringing and warping, enabling stronger support-free bridges and overhangs during high-speed printing.

Build Volume & Efficiency

The K1 Max offers a 300 × 300 × 300 mm build volume, designed for rapid prototyping and design validation. It features a 25.5% build volume to printer size ratio, positioning it as a space-efficient large-format FDM printer in its class.

AI Monitoring & First Layer Control

An AI LiDAR system with 1 µm resolution scans the first layer and can pause printing if issues are detected. A built-in AI camera monitors for spaghetti failures, foreign objects, and debris, while also supporting real-time monitoring and time-lapse capture.

Smart System & Connectivity

The printer runs Creality OS with a dual-core 1.2 GHz CPU and 8 GB ROM supporting up to 400 model files. It supports WiFi and RJ45 Ethernet connectivity for control via PC or phone, with clustering support for multiple printers in production environments.

Motion Accuracy & Surface Quality

A G-sensor in the printhead reduces resonance effects to minimise ringing and ghosting, while Z-axis improvements reduce Z-banding. Motion advance control improves filament feeding to reduce blobs and oozing for cleaner surface finishes.

Auto Levelling & Self-Checks

Dual hands-free auto levelling uses strain sensors in the heatbed to generate a leveling mesh for compensation. A one-tap self-test checks extruder, heatbed, camera, fan, leveling system and sensors, flagging any abnormalities before printing begins.

Heatbed & Build Surface

The aluminium alloy heatbed heats to 60°C in 90 seconds and maintains consistent heating across voltage ranges. The flexible, heat-resistant build plate supports easy model removal and delivers a smooth underside finish.

Safety & Air Handling

The K1 Max includes a built-in air filtration system designed to reduce unhealthy compounds generated during printing, supporting improved air quality during operation.

• Core XY FDM 3D printer delivering up to 600 mm/s print speed with 20000 mm/s² acceleration and 800 mm/s travel speed.
• Large 300 × 300 × 300 mm build volume supports rapid prototyping and large-format prints.
• Lightweight 190 g printhead design reduces motion inertia for high-speed movement control.
• Dual-gear direct drive extrusion system supports high-flow printing up to 32 mm³/s.
• Ceramic heater surrounds the hotend and reaches 200°C in 40 seconds for fast thermal readiness.
• Nozzle supports up to 300°C operation with titanium alloy heatbreak and hardened steel nozzle.
• Dual cooling system with printhead ducted fan and 18W chamber fan improves cooling performance.
• Rapid cooling reduces stringing, warping and supports improved bridges and overhangs.
• AI LiDAR with 1 µm resolution scans the first layer and pauses printing if errors are detected.
• Built-in AI camera monitors prints for spaghetti failure, foreign objects and debris with alerts and time-lapse capture.
• G-sensor in the printhead reduces resonance effects to minimise ringing and ghosting.
• Z-axis refinement reduces Z-banding for smoother surface texture.
• Motion advance control improves filament flow to reduce blobs and oozing.
• Dual hands-free auto levelling uses heatbed strain sensors to build a compensation mesh.
• One-tap self-test checks extruder, heatbed, camera, fan and sensors before printing.
• Aluminium alloy heatbed reaches 60°C in 90 seconds with consistent heating performance.
• Flexible heat-resistant build plate enables easy part removal and smooth underside finish.
• Creality OS runs on a dual-core 1.2 GHz CPU with 8 GB ROM supporting up to 400 model files.
• WiFi and RJ45 Ethernet connectivity support remote control and multi-printer clustering.
• Built-in air filtration system helps reduce printing emissions during operation.
