Corsair Obsidian 450D Mid Tower Case

Corsair Obsidian Series 450D High Airflow Mid-Tower Case

Corsair
Scan code: LN56417 Manufacturer code: CC-9011049-WW Request call
£99.98
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review 3xs Approved High End
Delivery options £11.50 By DPD On 15th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Corsair Obsidian 450D - Mid-Tower Gaming PC Case

Corsair 450D Case

Obsidian 450D Compact PC Case

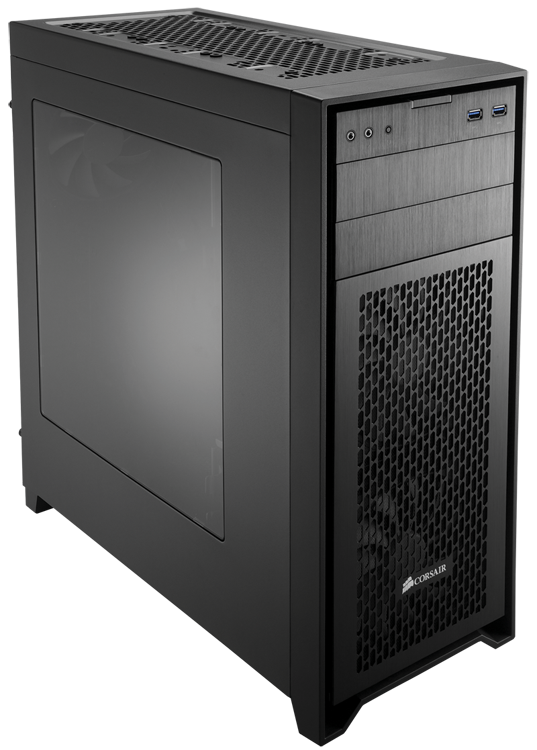

Obsidian Series 450D has an elegant brushed aluminum front panel and a solid steel body, with an interior that’s optimized for efficient, high-volume airflow. But don’t let its mid-tower size fool you – the 450D can also house some serious watercooling gear. The included dual front AF140L intake fans provide direct GPU cooling, and there’s a total of seven fan mounts for your extremely high volume airflow projects. All air intakes are protected with removable dust filters.

Serious Case Expansion

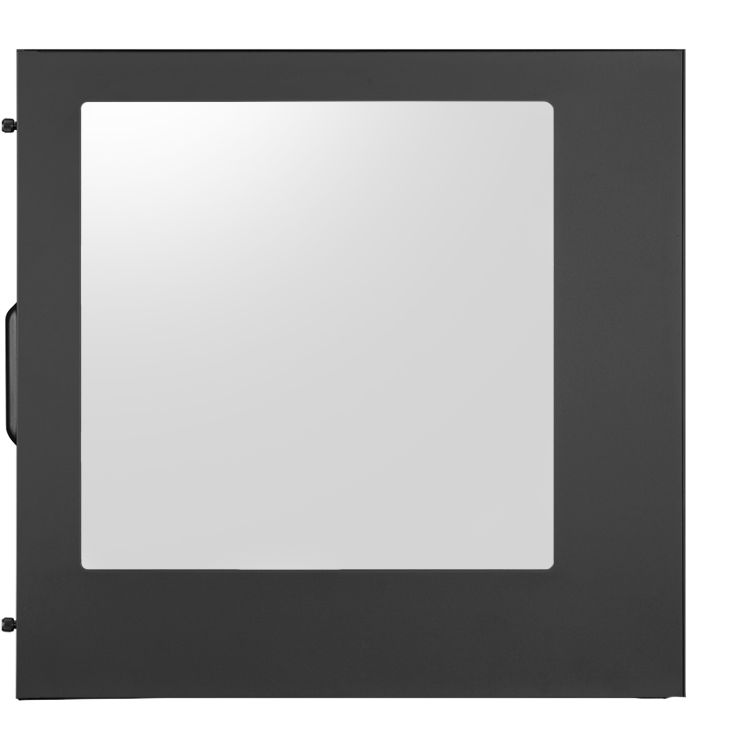

450D Door Panel

Easy to Build, Hard to Beat

The interior is designed for superior cooling efficiency, with a modular removable drive cage system and dual SSD bays that mount behind the motherboard tray and out of the airflow path. The extra-large, flush mounted side window puts your system-building expertise on display while keeping with the sleek and refined Obsidian Series design.

Incredible Build Quality

Corsair Carbide 450D Cooling

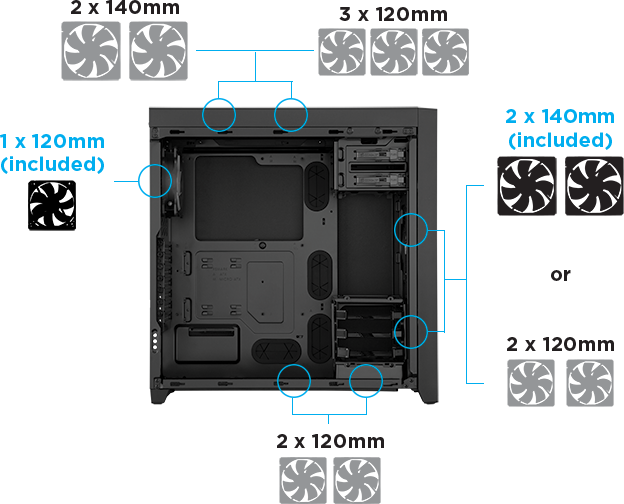

Included Dual AF140L intake fans & a single 120mm extraction fan

If your high-performance system build requires high-performance cooling, the 450D is an ideal platform. The mounts support front, bottom and rear radiators for flexible watercooling installation options, or fans for superior ventilation. The custom-designed, Corsair-exclusive AF140L 140mm intake fans deliver effective airflow with less noise and turbulence. Air intake passes directly across your GPUs for efficient heat dissipation.

Liquid Cooling Capable

Corsair Carbide 450D Cooling

Watercool your Graphics Card and Processor

The 450D has room at the front, top, and rear for radiators, allowing you to quiet down your GPU and CPU with liquid coolers, this also allows you to get better overclocks out of your components for better quality gaming.

The length for the radiators that are compatable with the 270R case are as follows:
360mm: Top only / 280mm: Front only / 240mm: Bottom / 120mm: Rear.

Specifications
Case Edition 450D
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Material Aluminium / Steel
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 3 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 7
Fan Bays
  • 4 x 120/140mm
  • 3 x 120mm
Fans Included
  • 1 x 120mm
  • 2 x 140mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 165 mm
Max VGA Card Length 430 mm
Colour Black
Dimensions 210 x 497 x 494 (WxHxD mm)
Weight 7 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
Corsair Obsidian Series 450D High Airflow Mid-Tower Case is rated 4.5 out of 5 by 12.
Rated 5 out of 5 by from I very like this case I bought this case 5 month ago and what I can say. This Mid-Tower Case for me is great. Enough space inside like for one GPU, and Water Cooling system and looks very nice. I know that probably will be few people who will say that design is bad or something like that. In my opinion this is worth this money.
Date published: 2017-03-03
Rated 3 out of 5 by from Not as BIG inside as the dimensions state I had intended putting 2 fans beside the power supply as the case advertised. But once the Corsair Modular 750W PS was in the case the 2 x 120 fans wouldn't fit beside each other. I also had to remove the case fan that is mounted at the back of the case as my CPU mounted fan couldn't fit in the case with that in situe. I purchased this case to fit a 1070 as my old case was too small. But this case really wasn't very big as the dimensions stated. I had my old Antec for over 10 yrs. But now I'll replace this Corsair case after a few months i'd say. I bought 2 x 120 and 2 x 140 fans extra. I had to leave 1x120 out and also removed the stock 120 fan. So I wasted money there. The 2x slots for the SSD are in a stupid position. I couldn't close the back panel as the cables prevented it. So In my old case I had them situated with the old SATA Drives is a dual mount. I had to set that back up. This case is value for money. But I really expected more from Corsair. I've been buying Corsair for years now. I won't be buying their cases again.
Date published: 2016-11-21
Rated 5 out of 5 by from Great Case - Incredibly Good Airflow I bought this case with 2x120mm SP120 Corsair fans for the bottom, 2x140mm ML140 Corsair fans for the front and an NZXT Sentry 3 fan controller. I already own a Corsair 240mm AIO watercooler so I have a total of 7 fans, including the rear exhaust. This case fits them all. If you plan on using this many fans, I recommend getting a fan controller as without one it can get pretty loud. Thankfully, I did and I get cool, quiet gaming all day long. The only problem I had with this case was the space behind the backplate. I'm no pro when it comes to cable management so it took me (and a friend) a lot of effort to get the back panel back secured. Overall, The Corsair 450D Airflow is a great mid-tower case for anyone wanting high airflow in a smaller package than the full tower 750D.
Date published: 2016-08-21
Rated 5 out of 5 by from Great mid level case perfect mid level case, with the ability to change the dust filters, add more fans and take out the hard disk holder to provide more air flow. Everything came in one piece and looks good. I'm more then happy with my tower.
Date published: 2016-03-13
Rated 4 out of 5 by from Nice case, plenty of room. Good case, has plenty of room to fit a big radiator. The only fault is the front panel, it is the only plastic piece on the case, and the clips to hold it in aren't good quality, as I found out on the day it was delivered. Scan redeemed themselves and sent me a new front cover, within a couple of days. Great customer service compared to some other companies we work with. Cheers!
Date published: 2015-09-24
Rated 2 out of 5 by from Beware! I spent a long time trawling reviews before i decided on this case, and to be honest now i have it im disappointed. The see through side panel is nothing more than flimsy, mine came with a crack from top to bottom, thankfully Chillblast have agreed to replace it. The brushed aluminium finish to the front panels look scruffy and soon marks with just a slight swipe of your fingers. The front panel covers the two fans and unclips with a gentle push to the top corners, both of these clips were snapped off when my computer arrived and are thin and delicate and totally unfit for purpose, again Chillblast have agreed to replace them. The rest of the case is fine, but for over £100 i expected better, i would not recommend this case.
Date published: 2015-04-28
Rated 5 out of 5 by from Excellent Any new build I make for friends and family will use this case :D , unless they require several rad's. The only deviance from corsair cases I would go with might be the Thermaltake level 10.
Date published: 2014-09-23
Rated 5 out of 5 by from Spacious and sensibly designed I got this case when I bought an R9 280X and discovered that it's roughly the size of the moon and didn't fit in my old case. The case fits in the 280X with room to spare, and has very good air flow with very easy to remove dust filters across all the vents. I also like that the PSU is at the bottom of the case, as it makes it a lot easier to keep the extraneous cables tidy and out of the way (instead of draped over the top of everything). The three fans that come with the case (2 in the front, one at the back) are nice and quiet and shouldn't cause any problems for anyone worried about the sound. All in all, an excellent case, and I'd definitely recommend it to anyone building a new machine.
Date published: 2014-08-14
  • y_2017, m_12, d_12, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_GB, sid_56417, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Max cooler height?

Will the Noctua NH-D14 fit in this case?
Asked by: Alan86
Scroll up... ;) The specs, a short scroll up, show 165mm. :)
Answered by: Codex
Date published: 2017-05-11

Corsair H110

Will this fit the cooling kit H110 with quad fans and radiator in the top space, leaving enough room between the ram etc? Motherboard will be the ASUS MAXIMUS VII RANGER
Asked by: JamesD
I bought this hoping for internal space and air flow. I didn't use Water cooling but it's extremely cramped inside once everything goes in. I will be buying a bigger and better case soon. Waste of my money.
Answered by: calp0l
Date published: 2017-01-22
