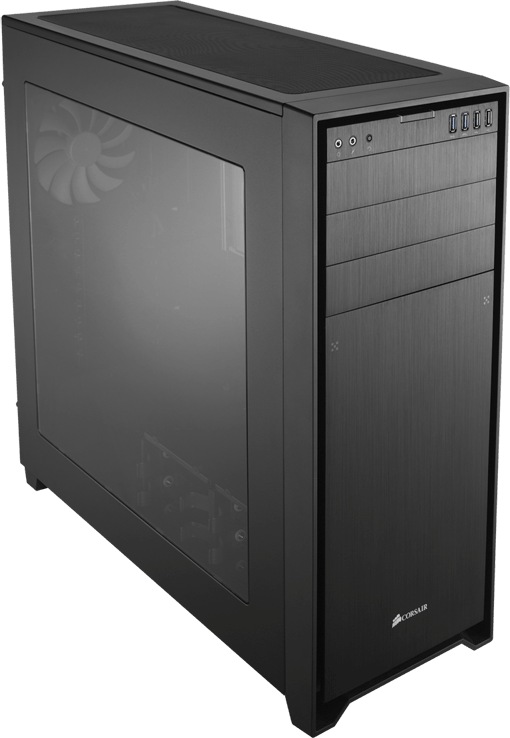

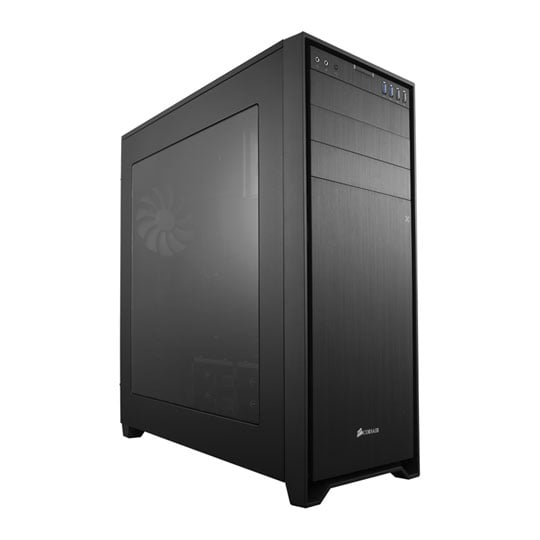

Corsair Obsidian 750D Full Tower PC Case

Corsair Obsidian 750D Black Full Tower case Aluminium Steel with Side Window 3x140mm Fans USB 3.0 E-ATX/ATX w/o PSU

Corsair
Scan code: LN53701 Manufacturer code: CC-9011035-WW Request call
£139.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD On 28th Mar 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The Obsidian Series 750D full tower PC case combines generous expansion flexibility, room for advanced cooling options, and an interior that’s optimized for fast and easy builds and upgrades. It has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel.

This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling you’ll need if you’re going to push those components to their limits. And, it incorporates a host of clever system builder-focused features, because building a system should be straightforward, trouble-free, and even fun.

The room you need when you’re getting serious
Nine PCI-E expansion slots support double and triple GPUs. There’s room for up to ten drives, and four USB ports on the brushed aluminum front panel.

Your system. Your cooling.

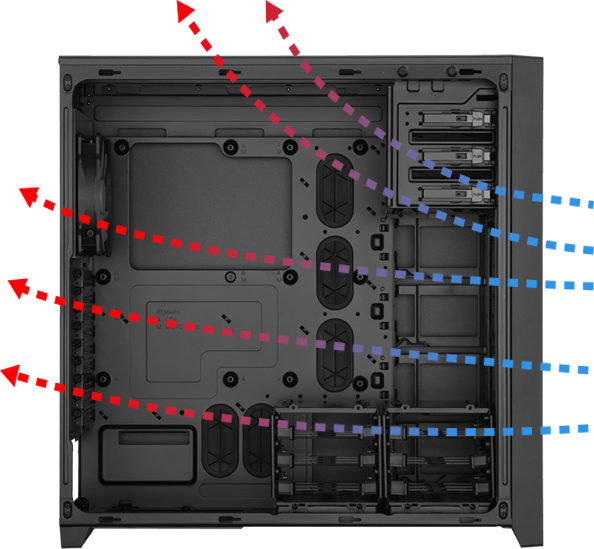

The three included Corsair AF140L high-airflow 140mm intake and exhaust fans are custom engineered to deliver excellent airflow with less unnecessary turbulence and noise. You can mount up to eight fans, with room for dual radiators on the bottom, front, and top.

Take control of your storage
There are four separate mounting locations for the drive cages, and if you’re moving to 100% solid-state, you can remove the 3.5” cages entirely and use the four side-mounted 2.5” cages.

Designed for fast, straightforward builds
The side panels and expansion slots use thumb screws, and storage installation is tool-free. A center-post standoff holds the motherboard in place while you secure it, and the dust filters are easily accessible and removable. Our innovative cable routing system has multiple cutouts with rubber grommets for superior airflow and a cleaner look, and the CPU backplate cutout lets you install or upgrade your CPU cooling without removing the motherboard.
Features • Generous expansion room for building high-performance systems
• Beautiful brushed aluminum fascia makes an elegant design statement

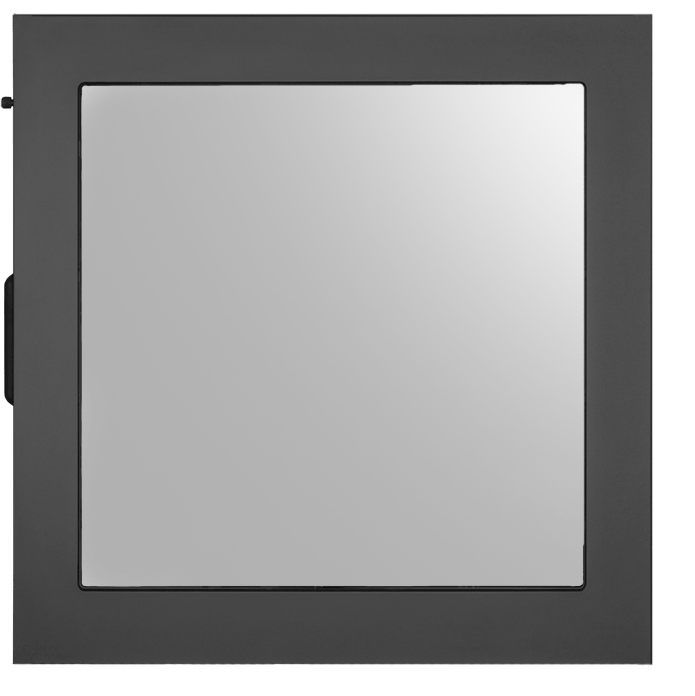

• Full side panel window to view your components
• Tool-free SSD, Hard Drive, and Optical Drive installation
• Includes three AF140L fans, with room for up to eight fans
• Modular drive cage system for highly customizable layouts
- Two modular drive cages house three 3.5” or 2.5” drives each
- Four tool-free dedicated SSD cages, sideways mounted
• Radiator and fan compatibility compatibility:
- Top: 3 x 120mm or 2 x 140mm
- Front: 2 x 140mm or 2 x 120mm (2 x 140mm included)
- Bottom: 2 x 120mm
- Rear: 1 x 140mm or 120mm (140mm included)
• Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone
• Easily accessed front, top, and PSU dust filters
• Excellent cable routing with rubber grommets for clean builds
• Nine expansion slots for multiple PCI-E devices or large motherboards
• Maximum CPU Cooler Height 170mm
• Maximum GPU Length 450mm
Specifications
Specifications
Case Edition Obsidian 750D
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
  • XL-ATX
Material Aluminium/ Steel
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
  • 3 x 5.25" External
Expansion Slots 9
Fan Bays
  • 5 x 120/140mm
  • 2 x 120mm
Fans Included 3 x 140mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 170 mm
Max VGA Card Length 450 mm
Colour Black
Dimensions 235 x 560 x 546 (WxHxD mm)
Weight 9.7 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Corsair / SCAN
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Corsair Obsidian 750D Black Full Tower case Aluminium Steel with Side Window 3x140mm Fans USB 3.0 E-ATX/ATX w/o PSU is rated 4.6 out of 5 by 27.
Rated 5 out of 5 by from Fantastic case I couldn't be more pleased with this case. It is a joy to work with. Cable management is fantastic. Temps have dropped 15 degrees from what they were in my old case.
Date published: 2016-09-12
Rated 5 out of 5 by from Looks great but big! This case is fantastic so much room inside room for multiple hard drives 2 graphics card water cooler anything you want basically fantastic purchase.
Date published: 2016-01-14
Rated 5 out of 5 by from Corsair build, Corsair quality You cant have a bad Corsair case. The no tool designs are amazing and really help with the build. So many tie downs and grommets to hit zip ties and secure cables.
Date published: 2015-12-11
Rated 5 out of 5 by from Exactly as described Corsair's 750D is exactly the big case it's described as. Plenty of room inside for whatever you've got to put in there. Some fiddlesome clips to remove front panels for DVD drives and such like. One missing feature, which I don't require (hence the 5 stars awarded) is a HDD hotswapable bay. Fans are whisper quiet too!
Date published: 2015-06-22
Rated 4 out of 5 by from Just short of perfection. There's not a lot too be said about the 750D that others haven't already said, but I'll try to talk about some of the good and bad of the case myself regardless. First, let's start with some of the negatives (There are very few, honestly.) Negatives: -Using a Corsair H100i radiator at the top of my case, despite them both being manufactured by Corsair the screws on the H100i stick out of the top too much and I find they dent the magnetic dust cover on the top. -Some of the items in the case are done in a bit of a strange way, makes it hard to position some things and meant it was a bit difficult to fit new fans in the front of the case. -Stock fans are pretty loud and a bit poor, may want to change them. I can't really think of many other negatives, so if those things don't bother you, you're in luck with the laundry list of positives for this case: Positives: -Sleek, minimalist design, with brushed aluminium front panels that adds an amazingly simple and classy look to the case. -Tons of space. I'm currently using this with SLI 980's inside and there's still enough room to swing a cat in there, but not so much extra room that it starts to look ridiculous unless you add in some watercooling parts, it's really a perfect size. I removed one of the drive bays because I only needed one and I figured removing it may help with airflow and cable management, but it's absolutely not necessary. -Stays cool. Very cool. Not only does this case look cool, but with a H100i on the CPU and replacing the rather noisy and slightly poor fans on the front with two Noctua AF-N14's for intake fans + a quiet edition Corsair AF140 on the back, it stays almost silent even when running all fans at 100% and everything stays very cool. I can't really think of much else to say about this case, but I certainly reccomend it to anyone considering it, so long as the few negatives at the top don't deter them.
Date published: 2015-04-11
Rated 4 out of 5 by from Good, but not perfect. I wanted a well built, good looking case for my new rig and this was my choice. It was very easy to build in as it has plenty of space, options and great cable management. However, there are a few niggles. First is there are no damping pads on the psu mounts and second, no dust filters on the bottom fan positions. Neither is enough to spoil the overall result though and I'm very happy with my choice.
Date published: 2015-03-22
Rated 5 out of 5 by from Just Crying to be Water Cooled! Fantastic case, lots of room for watercooling, good build quality and keeps components very cool. Bought the case with only air cooling in mind but after building my build and seeing how much room is left i am certainly going to be putting in a custom watercooling loop. It supports up to 360 rad on the top, 280 on the front and 240 on the bottom, though unsupported you can fit a 420 on the top but you have to bend a bit of metal in the top 5.2 inch bay. i think i made a good choice with this case and i am a very happy customer, thanks Scan and Corsair!
Date published: 2015-03-08
Rated 5 out of 5 by from Cosair Obsidian 750D Full Tower Case What a case. You can not only get inside, so much room, the cables are all hidden in the back. no messy cable to get in the way. 6 hard drive bays 4 SSD drive bays, and with the motherboard and Power supply you still have room for a London bus and taxi cab. I added the Corsair H80i water cooling system. When up and running I had to keep checking if the PC was on, absolutely no noise, just a very very slight hum if you listen for it. The best choice I ever made.
Date published: 2014-11-20
  • y_2017, m_3, d_23, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_27
  • loc_en_GB, sid_53701, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What connector do the included fans have?

Are they 4 pin PWM or 3 pin. Thanks
Asked by: Russboy360
3 pin
Answered by: iEddiez94
Date published: 2016-02-14

Will you stock the Corsair Obsidian series 750D High Airflow Intake kit

Will you stock the Corsair Obsidian series 750D High Airflow Intake kit?
Asked by: RichardZero
I don't but scan will yes
Answered by: kenny
Date published: 2016-06-26

Triple rad in the top??

Will a triple rad fit in the top of this case?? More so a Thermalchill PA120.3 rad... I'm trying to find something that will house my EVGA 759 and 762 boards.. I was hoping this one might get them in!!
Asked by: Phill
triple rad could but it will take up spaced used by the dvd/bluray drive units.. I used a duel rad and that's perfect for my build
Answered by: Hawkzz
Date published: 2016-01-17
