Corsair RGB Lighting Node Pro Lighting Controller

Corsair Lighting Node Pro, RGB Lighting Controller with 4x Individually Addressable RGB LED Strips

Scan code: LN78655 Manufacturer code: CL-9011109-WW Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 23rd Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

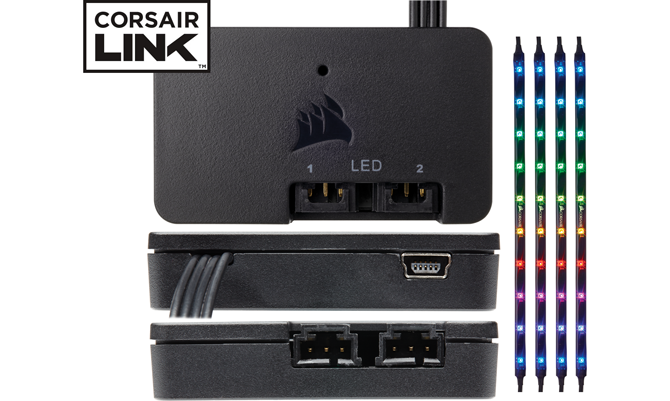

Product Overview The CORSAIR Lighting Node PRO provides individually addressable LED lighting with software control for unique lighting effects and vivid illumination of your PC. The four included lighting strips feature ten RGB LEDs per strip and magnets to maximize the lighting potential and ease installation. Dual channel operation allows for expansion of up to four strips per channel or the addition of a set of CORSAIR HD RGB fans (sold separately). Combining the CORSAIR Lighting Node PRO and LINK software give you full control over your case lighting right from your desktop.

Features • Individually Addressable RGB LED Controller with RGB LED Lighting: Each of the individually addressable RGB LED strips can be controlled through the latest CORSAIR Link software to provide unique lighting effects and specific colours to match any system build.
• Dual Channel Lighting: Control four individually addressable RGB LED strips and up to six HD RGB fans simultaneously.
• Individually Addressable RGB LED Strips: Each RGB LED strip is independently controlled - display different lighting effects and animations on each strip separately.

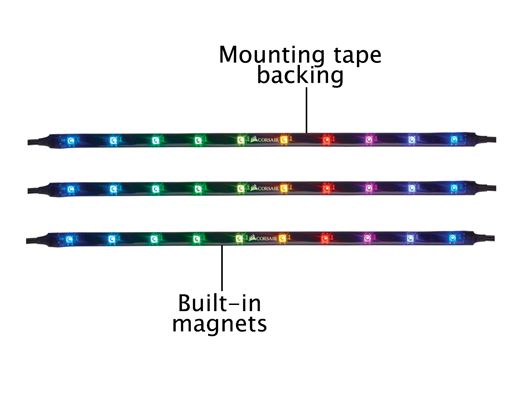

• Multiple Mounting Options: The RGB LED strips have both mounting tape backings and magnets built into the strips, making installation simple.
• USB 2.0 Interface: No special interface or additional hardware is required to use the Lighting Node PRO to its full potential; plug it into an available USB 2.0 header on your motherboard.

• 1x CORSAIR Lighting Node.
• 4x Individually addressable RGB LED strips.
• 4x RGB LED extension cables.
• 2x HD RGB LED fan hub adapter cable.
• 1x Mini USB cable.
• 2x Mounting tape.

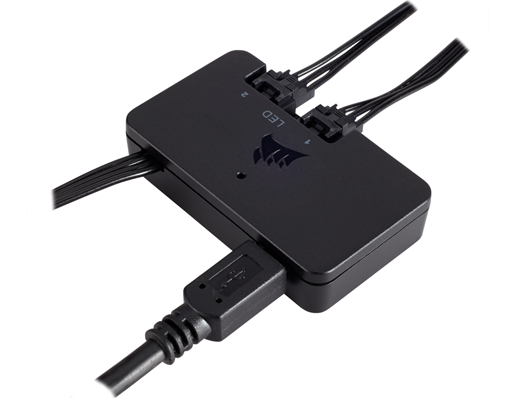

Lighting Node PRO:
• Power input 4.5V to 5.5V.
• Unit dimension: 55mm x 31mm x 12mm.
• RGB LED channels: 2 Max.
• RGB LED strip per channel: 4.
• Mini USB cable: 375mm.
• SATA Power cable: 440mm.
• HD RGB LED hub cable 485mm.

Individually Addressable RGB LED Dtrip:
• Length: 410mm.
• RGB LED chip count: 10.
• Protective cover: IP65-rated transparent silicone.
• Adhesion type: 4 magnets per strip and full-strip tape.
• RGB extension cable: 345mm.

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Corsair / SCAN
0871 472 4747
Customers also bought
Corsair Lighting Node Pro, RGB Lighting Controller with 4x Individually Addressable RGB LED Strips is rated 4.5 out of 5 by 2.
Rated 5 out of 5 by from Great lighting kit with software to control various lighting effects A really good solution for the corsair RGB fans and strips. Quick to set up although there is a lot of wiring required. Software runs in the taskbar and is simple to change to preset / user lighting modes. Images can be uploaded into the software of your case and pc temperatures and fan speeds can be displayed among other things. Temperatures can be used to control RGB colours. Best RGB product on the market.
Date published: 2017-07-29
Rated 4 out of 5 by from good product, dodgy software. The lighting node works fine, but for the asking price it couldve atleast come with some splitters as it only has two outputs, but it was much cheaper then RRP at scan so I cant complain about that. Big problem with the software: the software will ask you to update the lighting node firmware, DO NOT update it or it will brick the lighting node... there is a fix that requires you to hard reset the unit and replace the firmware files, other then that the software works fine.
Date published: 2017-05-12
  • y_2018, m_3, d_21, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_78655, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

do you get the link soft ware

is the link software include in the light kit?
Asked by: nkirk
the link software is free to download from the corsair website
Answered by: BigLez
Date published: 2017-07-15

Number of fans in total

The info on the product states 4 led strips and up to 6 fans simultaneously... does that mean it can control either 8 strips or 12 fans at the same time if using only 1 kind of led?
Asked by: VirtualTowersPeter
Hello, This can handle up to a maximum of 6 fans (with an optional fan hub) and up to 4 individual LED strips. Regards,
Answered by: JackB
Date published: 2017-11-21
