Corsair Hydro HG10 N780 GPU Cooling Bracket

Corsair Hydro Series HG10 N780 GPU Hydro Cooler Bracket for NVIDIA GeForce GTX 770/780/780 Ti/Titan/Titan Black GPU

Scan code: LN64472 Manufacturer code: CB-9060002-WW Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 23rd Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Only compatible with NVIDIA GeForce GTX 770, 780, 780 Ti, Titan, and Titan Black reference design cards

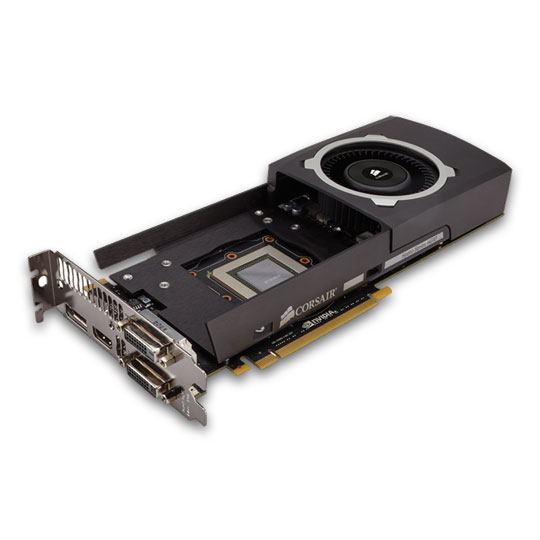

The Hydro Series HG10 N780 allows you to attach a Hydro Series CPU cooler (not included) to your NVIDIA GeForce® GTX 780 or 780 Ti for better cooling and quieter operation. It installs quickly and easily with only a screwdriver. It can reduce your GPU’s temperature by up to 45° C, and your GPU’s automatic temperature control will work with the incredibly quiet included blower fan.

The HG10 bracket cools not only your GPU’s main processor, but VRAM and VRM, too. This can extend the life of your GPU, and give you more overclocking headroom. And with the extra bonus of quieter operation, once you’ve upgraded your GPU to liquid cooling, you’ll never want to go back. Features • Allows you to attach any Corsair Hydro Series CPU cooler to your GPU
• Compatible with NVIDIA GeForceR GTX 770, 780, 780 Ti, Titan, and Titan Black reference design cards
• Reduces GPU temperatures by up to 45° C
• Most GPUs will work perfectly with the included blower fan for quieter operation
• Cools the main GPU processor, VRAM, and VRM
Chipset Compatibility
  • GeForce GTX 770
  • GeForce GTX 780
  • GeForce GTX 780 Ti
  • GeForce GTX TITAN
  • GeForce GTX TITAN Black
Approx Fan Speed
Fan Airflow
Sound Level
Adjustable Fan Speed Controller No
Fan Dimensions 70 x 25 mm
Heatsink Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Corsair / SCAN
0871 472 4747
Customers also bought
Corsair Hydro Series HG10 N780 GPU Hydro Cooler Bracket for NVIDIA GeForce GTX 770/780/780 Ti/Titan/Titan Black GPU is rated 3.3 out of 5 by 4.
Rated 3 out of 5 by from The bracket is good but not the fan I installed an H60 onto a 780 ti and i had no problems with that, the installation was pretty simple but the blower fan included was making a really loud grinding noise. I had to take the fan apart and oil it myself, it seems to be a lot quieter for now.
Date published: 2015-12-31
Rated 5 out of 5 by from Nice bit of kit Cool product tho my h60 didn't fit but it's now got h80gt plugged in and working well got really impressive results under benchmarking
Date published: 2015-08-18
Rated 4 out of 5 by from Research your graphics card and treat the HG10 gently! Make sure you research your Graphics card before you buy this. I made several mistakes, firstly the card I had was not compatible I needed a reference card as only select GPU's will fit with this bracket. Make sure and check out the list at Once I got the correct card and connected it up with the AIO (H90) using the small standoffs I proceeded to overtighten the thumb screws and immediately broke off one of the small standoff problem, I'll use the other bracket and use the other holes. It should still fit tight with three out of 4 screws.... Yep you guessed it, did it again. Now I have to buy a new one! Moral of the story, research your card before buying this, even though it says it's for 770's 780s and 780Ti's it's only certain brands and models that it will fit with. Also, thumb screws are called that for a reason, no need to screw them in tighter than they need to! As I learnt to my wallets detriment.
Date published: 2015-08-13
Rated 1 out of 5 by from Very poor The main problem is you have to attach small screw nuts on to the bracket to attach the cooler. The are tiny. You have for thumb screws to attach the cooler on the the screw nuts that You put on which have a small screwdriver head on top. Do not do as I did and use a screwdriver. They small nuts break off where they are attached to the bracket rendering the unit useless. Very poor design. Why give you the option of using a screwdriver if it's breaks the nuts.
Date published: 2015-07-14
  • y_2018, m_1, d_20, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_64472, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Cooler compatibility

Is this compatible with the H100i ? Not the newer H100i GTX, or the older H100, but the H100i. Corsair's website says all Hydro series coolers, but I've heard not all of them fit. Thanks
Asked by: BaronSilasGreenback
Hello, Yes this is compatible. Thanks,
Answered by: LizN
Date published: 2016-01-17
