Corsair H80i V2 RGB AIO CPU Water Cooler for Intel/AMD

Corsair Hydro Series H80i V2 All-In-One Extreme Performance CPU Cooler with 120mm Radiator, 2x 120mm Fan, Intel/AMD, TR4

MORE INFO
MORE INFO
Thumbnail 1 : Corsair H80i V2 RGB AIO CPU Water Cooler for Intel/AMD Thumbnail 2 : Corsair H80i V2 RGB AIO CPU Water Cooler for Intel/AMD Thumbnail 3 : Corsair H80i V2 RGB AIO CPU Water Cooler for Intel/AMD Thumbnail 4 : Corsair H80i V2 RGB AIO CPU Water Cooler for Intel/AMD
Scan code: LN69101 Manufacturer code: CW-9060024-WW
3xs Approved
£94.99Item due on 02 February 2021
Pre Order
Due 2nd Feb
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Corsair Hydro Series - H80i v2 Liquid CPU Cooler

H80i v2 Hydro Cooler

H80i v2 Self-contained Cooling System

The Hydro Series H80i v2 is a high performance, all-in-one liquid CPU cooler that works with standard 120mm radiator mounts. The extra-thick 49mm x 120mm radiator and dual SP120L PWM fans provide the excellent heat dissipation you need for high performance CPUs. It’s Corsair Link compatible, so you can customize cooling performance, monitor system temperature, and change the color of the RGB LED lighting.

120mm
Radiator Size

AMD Sockets
FM1 / FM2 / AM2 / AM3

Intel LGA
1150 / 1151 / 1155 / 1156 / 1366 / 2011 / 2011-3

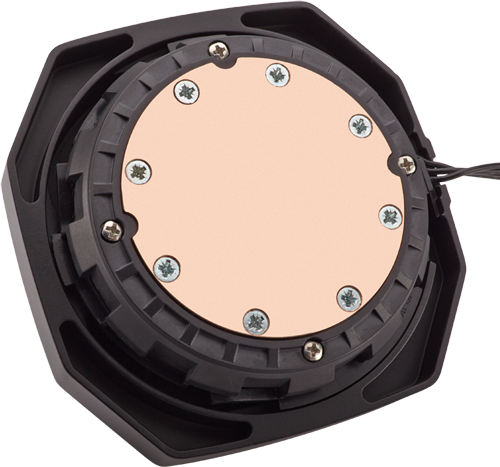

Copper Cold Plate

Copper

Fast and Efficient Heat Transfer

The coldplate draws heat from your CPU into the circulating liquid. Copper has outstanding thermal conductivity, and the microfin design provides fast and efficient heat transfer.

Dual PWM SP120L Fans

Fans

High-Torque 120mm Fans

Dual fans mount on opposite sides of the radiator for high-speed push-pull airflow. You can connect them to the standard PWM fan headers on your motherboard for precise fan speed control, and select the exact level of cooling performance you need.

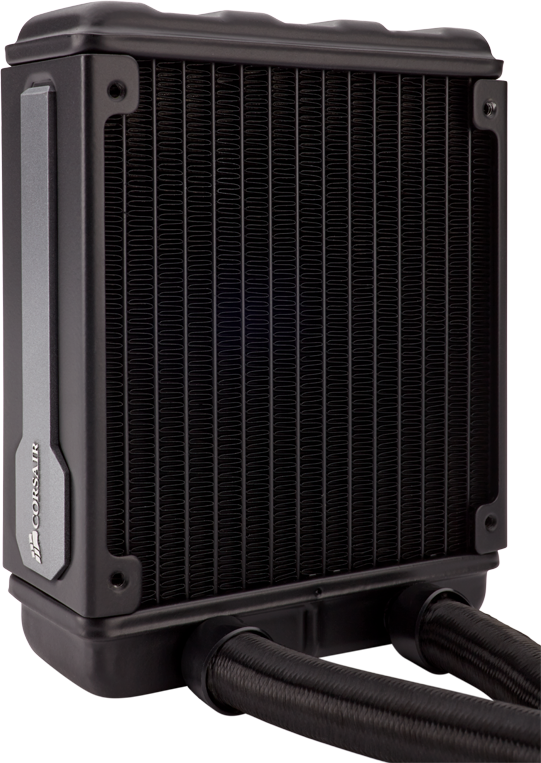

Ultra-Thick Radiator

Radiator

49mm x 120mm Radiator

The 120mm radiator works with standard 120mm fan mounts for wide compatibility, but has a depth of 49mm for increased cooling surface area and faster, more efficient cooling.

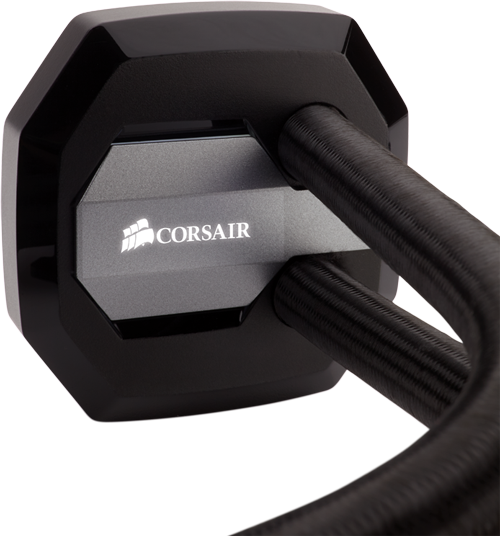

Built-in Corsair Link

Radiator

Customize with RGB Lighting

Attach the included Corsair Link cable to a USB header on your motherboard and download the free Corsair Link software to unlock even more power. You can customize cooling performance, monitor coolant and CPU temperatures, and change the color of the RGB LED lighting from the default white to match your system or to change color based on temperature readings and other inputs.

Specifications
Cooler Specifications
Edition H80i v2
Cooler Form Factor 120mm All-In-One Hydro Cooler
Heatpipes N/A
Cooler Features
  • Aluminium Fins
  • Built-in Corsair Link (via USB)
  • Copper Base
  • Large-Diameter, Low Permeability Tubing
  • RGB LED CPU Block
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 2011-3
  • 2066
  • AM2
  • AM3
  • FM1
  • FM2
  • TR4 (using bracket included with CPU)
Max. TDP
Fan Specifications
Included Fan Configuration 2 x 120mm
Fan Edition Corsair SP120L Static Pressure with High Torque
PWM Fan Yes
Fan Bearing Type
Fan Colour Grey/Black
LED Lighting RGB Water Block/Pump
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 2435 rpm
Max. Fan Airflow 70.69 CFM
Max. Air Pressure 4.65 mm H²O
Max. Sound Level 37.7 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material) Included (Pre-Applied)
Dimensions & Weight
Heatsink/Radiator Dimensions 154 x 49 x 123 mm (WxHxD)
Total Dimensions
Weight
Additional Information
Scan Code LN69101
Model Number CW-9060024-WW
GTIN 843591071529
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
TekSpek Guides
Intel Core i7-6950X and Broadwell-E
Intel Core i7-6950X and Broadwell-E
Date Issued: 31st May 2016

The Intel Core i7-6700K has sated the appetite of enthusiast gamers since August 2015, but if a quad-core chip just doesn't tickle your fancy, you might have been twiddling your thumbs in anticipation of a new HEDT (High End Desktop) part.

Read More

Intel Core i5 6600K and Core i7 6700K
Intel Core i5 6600K and Core i7 6700K
Date Issued: 26th Aug 2015

Intel generally follows a tick-tock philosophy for new processor launches. The tick represents a shrinking of the manufacturing process - 32nm to 22nm, for example - while the tock is indicative of a new architecture based on the leading process of that time. This has been the case since 2007.

Read More

Corsair Hydro Series H80i V2 All-In-One Extreme Performance CPU Cooler with 120mm Radiator, 2x 120mm Fan, Intel/AMD, TR4 is rated 4.5 out of 5 by 13.
Rated 5 out of 5 by from Excellent high quality product with some caveats I purchased 2 of these coolers as part of an upgrade to fit two Intel E5 2967 CPU's. LGA2011 fitting is very easy as it just needs 4 stand offs on the LGA 2011 mounting frame- so no fiddling with the rear of the board fitting any new frames. I scrapped off the supplied TIM & used MX-4 on the CPU. I don't know if the supplied ready applied TIM is any good but why take the risk as I know MX-4 is really good. I have a very large case, an old COSMOS 2. However I also have a large motherboard which is the ASUS Work station board which is extended ATX. This fits in the case quite high. No matter where I positioned the cooler assembly I could not get it to fit in one of the 120 mm radiator slots on top of the case. The radiator was either colliding with the ATX cables or the holes would not line up. The solution was to mount one of the coolers on the back of the case by removing a fan and then cutting between the 3 fan mounts on the top of the case. This gave me sufficient room to mount the fan & radiator but it also meant cutting into the case fittings with hand tools. The temps are really low- 2 130 Watt CPU's running at a little over 30 degrees at full pelt. These are great coolers however make sure you have enough room to mount these as the 2 fans & radiator block must put the thickness at nearly 3.5 inches clearance needed (not measured actually). The radiator is very chunky and 2 fans make that doubly so.
Date published: 2020-02-14
Rated 5 out of 5 by from Corsair Hydro H80i CPU cooler Using this on a core i7 965 on Asus X58 Sabretooth board for approximately 2 weeks now and so far so good.. CPU idle Temperature down 5 °c and much quieter than before. Good quality fixtures and fittings Recommended
Date published: 2019-03-06
Rated 5 out of 5 by from Perfect for this weather! :-) Had loads of problems with my Xeon Workstation in the recent heat (35+DegC). Fans & standard heatsinks were struggling. The CPU temperature occasionally reached 110DegC or more, causing CPU to throttle back, and even shut down on occasions :( Eventually purchased some replacement Noctura fans for the chassis & this Corsair H80i V2 for the Xeon CPU. AMAZING result - CPU immediately reduced to 55DegC, even in the continued heatwave. The CPU is now running betweed 35 & 45DegC in a normal office, now the heatwave is over :-) All is good in the world :-)
Date published: 2018-09-18
Rated 5 out of 5 by from This product was perfect for my needs Great product does the job it's designed for, easy to install, well packed good quality piece of kit would recommend to all that are looking to install water cooling for the first time
Date published: 2018-01-27
Rated 4 out of 5 by from Good, but not perfect! Good cooler, but took a while to get it set up correctly. The pre-applied thermal paste wasn't very good at all, and I got much better performance by reapplying my own. And secondly, I couldn't get the computer to recognise the cooler over USB due to a driver signing issue. I managed to sort this with the help of google and the corsair forums (https://t.co/61m0Kwu6PW). Now that it's set up it's amazing, near silent and keeps things nice and cool!
Date published: 2017-10-18
Rated 5 out of 5 by from Great product that is very effective Bought the to replace an old air cooler on my i5-2500k (yes I know that's old!). Installation was pretty straightforward, the only thing you have to bear in mind is the fairly thick coolant pipes. Was really pleased with the results, my temps when playing game went from hitting the 70's to barely breaking 40! The icing on the cake though is that I'm now hitting a completely stable 4.5Ghz clock. With my Radeon HD7970 (another oldie but goodie) I'm able to play F1 2016 on high quality at 1080 resolution with no issues whatsoever. Very nice quality product and well worth buying over any air cooler.
Date published: 2017-07-31
Rated 1 out of 5 by from Worst cooler i have ever had! Hi Got this with a 3XS bundle (great CPU, RAM & Mobo) and for the first few months it was fine than after the pump slowly started getting noisier. I contact scan and got it RMA'd when i got the new one and installed it that pump it was even noisier. I do work and games on my pc and this buzzing/squeaking noise has been driving me crazy! Scan won't refund/exchange due to the time i have been using the cooler which is rather annoying. I'm throwing this on ebay as faulty for parts and getting an Be-Quiet! Rock 3, i will never by a closed loop cooler again... the pumps are so loud Is it to much to ask just to have components that don't rattle, squeak or whine....
Date published: 2017-07-05
Rated 5 out of 5 by from This product does the job of cooling well I have a custom made workstation with a liquid cooler which started leaking recently. I have replaced it now with a new, more updated version H80i V2. The CPU was overheating to 95 deg c with the old one and now the temperature of the CPU is down to around 30 deg c. I have a fully functioning workstation now which was automatically disabled from booting before because of overheating.
Date published: 2017-05-01
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_13
  • loc_en_GB, sid_69101, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

What are the overall dimensions including both fans? What are the fixing centres?

Asked by: klem
Hello, You can find the dimensions below for a radiator and the SP120L PWM fans: Radiator dimensions: 154mm x 123mm x 49mm Fan dimensions (1 Fan): 120mm x 120mm x 25mm Regards,
Answered by: LizN
Date published: 2016-04-08
