Corsair Graphite 760T Gaming Case

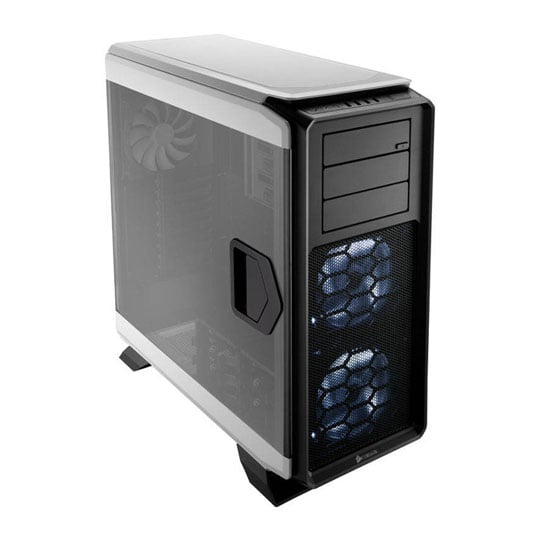

Corsair Graphite 760T Windowed Full Tower Gaming Case White

Scan code: LN56271 Manufacturer code: CC-9011045-WW Request call
End Of Life
review High End
Product Overview The Graphite Series 760T features an industry-first fully windowed side panel, but don’t let its looks fool you – it’s got tons of expansion room and cooling capabilities. With nine expansion slots, room for a 360mm radiator up top and a 280mm radiator in front, six tool-free, modular hard drive bays and four side-mounted SSD trays, you’ll have a hard time filling it up with parts. And with dual front AF140L LED intake fans and a single AF140L rear exhaust, you’ll have tons of airflow to keep everything nice and cool.
The 760T gives you a ton of flexibility to build the gaming rig you’ve always dreamt about. And the full side panel window gives you the freedom to show it off. Features • Gorgeous full panel window for maximum visibility of your internal components.
• Hinged side panels with quick release latches for easy access.
• Generous expansion room for building high-performance systems.
• Tool-free SSD, Hard Drive, and Optical Drive installation.
• Includes three AF140L fans, (front fans with LEDs) with room for up to seven fans. (NOTE: Black version has RED LED on front fans, Arctic White version has WHITE LED on front fans)
• Fan speed toggle switch allows you to set your fans to ¡§silent¡¨ or ¡§performance¡¨ modes.
• Modular drive cage system for highly customizable layouts.
- Two modular drive cages house three 3.5¡¨ or 2.5¡¨ drives each.
- Four tool-free dedicated SSD cages, sideways mounted.

• Designed for fast and straightforward builds.
• Radiator and fan compatibility:
- Top: 3 x 120mm or 2 x 140mm
- Front: 2 x 140mm or 2 x 120mm (2 x 140mm LED included)
- Bottom: 1 x 120mm
- Rear: 1 x 140mm or 120mm (140mm included)

• Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone.
• Easily accessed dust filters.
• Excellent cable routing with rubber grommets for clean builds.
• Nine expansion slots for multiple PCI-E devices or large motherboards
• Maximum CPU Cooler Height 170mm
• Maximum GPU Length 450mm
• Maximum PSU Length 230mm

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
0871 472 4747
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Corsair Graphite 760T Windowed Full Tower Gaming Case White is rated 4.8 out of 5 by 4.
Rated 5 out of 5 by from Brilliant looking case! Using it for my new x99 system build and it looks amazing! The window can best be described as vast and it has lots of options for a system builder like me, its incredibly user friendly.
Date published: 2015-08-05
Rated 5 out of 5 by from best of the best had some great cases over the yrs but this one is just the best well done corsair 5 stars
Date published: 2015-02-21
Rated 4 out of 5 by from Not bad from Corsair Never been a fan of Corsair products but this last year they have surprised me in every way; this case has out standing designand lots of room and just look good with the girlfriends future ;) after going from a NZXT full phantom case to this I feel like it's more then just a case in fact it keeps my rig cooler then all my other cases and the look speaks for itself
Date published: 2014-10-17
Rated 5 out of 5 by from There's a reason I bought this, it's beautiful. I didn't think it could get any better. From the pictures and videos I saw of it, nothing prepared me for seeing it in person. The frosted window tints the inside, turning garish heatsinks into dark glossy beauties. The white LED fans (I replaced the rear one with another Corsair AF140 White LED fan) light it up so well. I have also put 2x Corsair SP120 White LED fans on my CM Hyper-212+ CPU Heatsink, the window is perfect. Very spacious inside also, much more so than my old CM Storm Sniper Black Edition. Installing everything was a breeze.
Date published: 2014-08-27
  • y_2017, m_5, d_21, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_56271, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Are the side panels completely removeable on this case?

Are the side panels completely removeable on this case, or can they only be hinged backwards?
Asked by: Jools
Both side panels are easily removable without any screws. They can also be opened over 180 degrees rotation, so it makes working inside of it easy. To remove the door, you will have to open it a little and pull it up off the two pin hinges.
Answered by: BionicSammich
Date published: 2015-07-17
