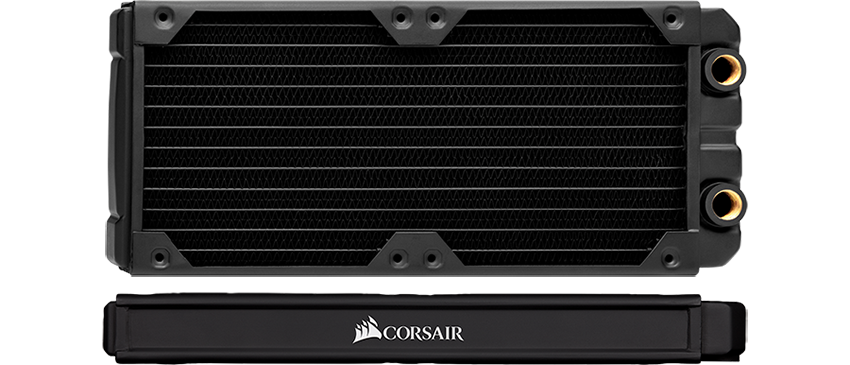

Corsair Hydro X XR5 240mm Copper Water Cooling Radiator

Corsair 240mm Hydro X Series XR5 Water Cooling Radiator, 30mm Thick, Supports 4x120mm Fans, G1/4" BSPPThreads,Copper

MORE INFO
MORE INFO
Thumbnail 1 : Corsair Hydro X XR5 240mm Copper Water Cooling Radiator Thumbnail 2 : Corsair Hydro X XR5 240mm Copper Water Cooling Radiator Thumbnail 3 : Corsair Hydro X XR5 240mm Copper Water Cooling Radiator Corsair Hydro X XR5 240mm Copper Water Cooling Radiator : video thumbnail 1 Corsair Hydro X XR5 240mm Copper Water Cooling Radiator : video thumbnail 2
Scan code: LN93264 Manufacturer code: CX-9030002-WW
£54.79
Add To Basket
In stock
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Corsair Hydro X Series - XR 5 240mm Water Cooling Radiator

X Series XR5 240mm Radiator

HYDRO X SERIES THICK RADIATOR FOR CUSTOM WATERCOOLED SYSTEMSThe CORSAIR Hydro X Series XR5 240mm Water Cooling Radiator delivers extreme custom liquid cooling performance, with 30mm radiator thickness and 25 micron thin cooling fins maximizing heat dissipation surface area. A premium copper radiator core core is optimized for use alongside copper CPU and GPU water blocks, further increasing the thermal transfer rate. Intuitive extras such as Integrated Fan Screw Guides and built-in Screw Protection Plates make it easy to install fans, without worrying about damaging the radiator. Equipped with standard G1/4" ports for universal compatibility and the surface area to tame even the highest-end hardware, the XR5 240mm radiator stands ready to cool even the most ambitious custom cooling loops and defeat the heat.

Extreme Performance Liquid Cooling

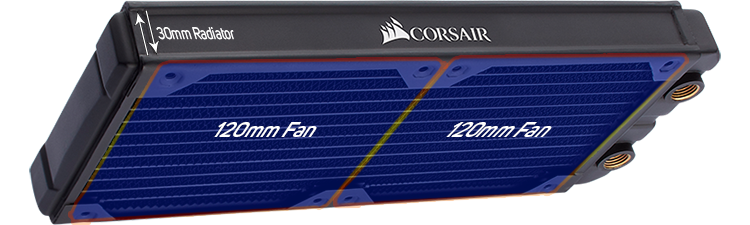

XR5 240mm fan capacity

Large Surface Area with Integrated Fan Screw Guides 30mm Radiator thickness delivers easy installation and great cooling performance with low-noise fans and high-airflow fans. Dual 120mm fan mounts on either side of the radiator are ready for your most ambitious custom liquid cooling build.

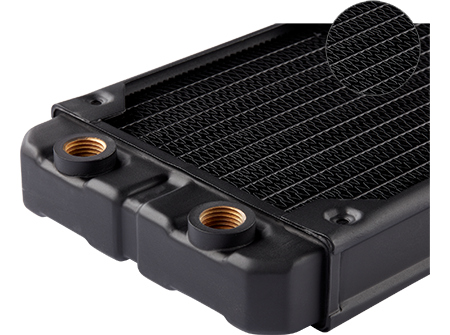

Premium Copper Construction

Standard G1/4” Threads

Standard G1/4” Threads A premium copper radiator core and 25 micron thick cooling fins provide a high thermal transfer rate optimized for CORSAIR’s performance copper water blocks. All inlet / outlet ports provide universal fitting compatibility with screw protection plates that prevents too long or over-tightened screws from damaging the radiator.

Specifications
Edition Hydro X Series XR5
Type 240mm Water Cooling Radiator
Compatible Fans 4 x 120mm
Radiator Thickness 30 mm
Features
  • High-Quality Polyurethane Coating
  • Integrated Fan Screw Guides
  • Premium Copper Radiator Core
  • Screw Protection Plates
Fin Spacing 16 FPI 25 Micron Copper Fins
Port Threads G1/4" BSPP
Screw Thread Size M4xP0.7
Construction Materials
  • Brass
  • Copper
Loop Compatible Metals
  • Brass
  • Copper
  • Nickel-Plated Brass
  • Nickel-Plated Copper
Compatible Coolants CORSAIR XL or equivalent
Max. Coolant Operating Temperature 60 °C
Colour Black
Radiator Dimensions 120 x 278 x 30 mm (WxHxD)
Weight 535 g
Additional Information
Scan Code LN93264
Model Number CX-9030002-WW
GTIN 843591081139
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Corsair / SCAN
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Fittings supplied?

Do they come with 2 pipe fittings or is it literally as pictured?
Asked by: ShadowsEntity
Good Afternoon, The package contents are as follows: XR5 240 8 x M4x6mm screws 8 x M4x30mm screws 8 x M4x35 screws Kind Regards,
Answered by: LukeW
Date published: 2019-11-15
