Scan code: LN123327 Manufacturer code: CORE-PB-EDGE

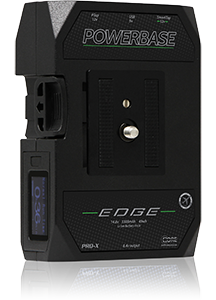

Core-SWX Powerbase EDGE Base

Core SWX PB-EDGE Base, 49wh, 14.8vdc, 3.3Ah, V-Mount Li-ion Battery, Backlit LCD, 2x USB, SmartTap, Travel Safe

Thumbnail 1 : Core-SWX Powerbase EDGE Base Thumbnail 2 : Core-SWX Powerbase EDGE Base Thumbnail 3 : Core-SWX Powerbase EDGE Base Thumbnail 4 : Core-SWX Powerbase EDGE Base
Scan code: LN123327 Manufacturer code: CORE-PB-EDGE
Order now and get it tomorrow, Fri 20th May
£264.49
Get it Tomorrow, 20 MayIn stock
From £11.70 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £22.74
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £264.49
Total inc. interest: £272.80
Monthly Payment: £11.70
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £264.49
Total inc. interest: £280.61
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Core SWX - 'Powerbase Edge Base'

Core SWX PowerBase Edge Base, PB-Edge-Base

Power throughout your dayThe follow-up to the highly successful Powerbase70, the Powerbase Edge is a feature-rich “small-form” Cine and DSLR pack, in a v-mount form. The 14.8v Lithium Ion pack includes one 8v port to power various cameras, two USB output, and two power tap outputs, one of which being a SmartTap.

The 8v port provides a common power output for the majority of DSLRs and small-form cine cameras on the market which utilize small 7.4v Li-Ion battery packs. There are an assortment of dummy battery cable attachments available which insert into that 8v port. In addition to powering the camera, two on-board powertaps are accessible to power monitors, lights, wireless transmitters, etc. The two available USB ports are a welcoming addition to power/charge mobile devices on the fly, as well as power any 5v accessories (i.e. select audio recorders).

As it is often difficult to approximate runtime when powering the camera as well as multiple devices, the Powerbase Edge has a built-in runtime LCD, to deliver exact battery expectancy to the minute. The LCD also has a button activated backlight to be view-able in any environment. As with it’s predecessor, the Edge has a quick release plate to attach underneath the camera, or quickly attach/detach to a rig or camera cage. It is 30% smaller than the Powerbase 70 yet can still withstand the draw of a full size Cinematic cameras.

The Tech Spec

Features Specification
Capacity 49 Wh (14.8vdc, 3.3Ah)
Operational Voltage DC 12V-16.8V
Dimensions 5.1 x 3.6 x 1.55"
Weight 1.3lbs
Normal Runtime Approx. 8.25 hours (Sony A7 w/o accessories)
Max Continuous Load 8A
Specifications
Battery Type
Capacity
Supported Devices
Output Connectors None
Self Charging Time
Colour N/A
Dimensions
Weight
Additional Information
Scan Code LN123327
Model Number CORE-PB-EDGE
GTIN 184323004249
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
