Scan code: LN7649 Manufacturer code: STC-T01-UW1

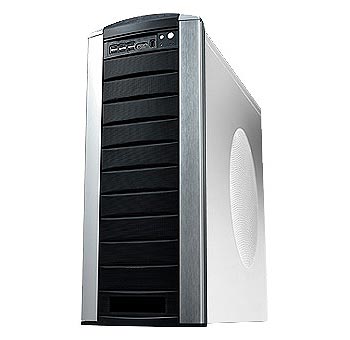

Coolmaster Stacker Silver Trim (STC-T01-UW1) ATX/BTX w/o PSU

Thumbnail 1 : Coolmaster Stacker Silver Trim (STC-T01-UW1) ATX/BTX w/o PSU
Coolmaster Stacker Silver Trim (STC-T01-UW1) ATX/BTX w/o PSU     : image 1
Scan code: LN7649 Manufacturer code: STC-T01-UW1
£79.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Jun 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Stacker is a new computer chassis from Cooler Master with extremely powerful functions. The innovative design supports Extend ATX, BTX and dual power supply, making for easy upgrading. Besides its unique cross-flow fan, the CM Stacker supports up to eight regular fans, giving it unmatched cooling performance. Built from 1.0 mm thick steel plate, the CM Stacker is immensely strong, with a high-quality anti-vibration stand providing extra protection for the system. Designed for maximum extensibility and allowing the user the utmost flexibility in the utilization of space, the CM Stacker makes upgrading incredibly easy, and can be configured to meet your own personal needs with minimum hassle.

Specifications
- Supports up to 11 5.25" drives
- Moveable front control panel with 6 USB 2.0 connections
- Maximum upgradeability; supports E-ATX and the upcoming BTX
- Dual power positioning design

Cooling
CM Stacker supports up to 8 fans
- Front – Full mesh screen provides superior air flow; support up to three 12 cm fans
- Top - Ultra silent 8cm Fan * 1 (exhaust)
- Side – Mesh screen on side panels provides the maximum air ventilation
- Rear – Ultra Silent 12cm Fan * 1 + 8 cm Fan * 2 (intake)
- Motherboard – 300mm cross flow fan; provides superior air flow for key PC components (CPU, VGA etc.)
Cross Flow fan is not supplied with the case and is available seperately

Assembly
- Tool-free installation; Supports the use of screws for permanent installation
- Maximum flexibility in space utilization for self-assembly

Structural Information
- Aluminum alloy motherboard tray frame
- Strengthened with 1.00mm steel plates
- Superior mechanical design for greater stability
Features
Specifications
Core Chassis Specifications
Case Edition
Case Form Factor ATX
Motherboard Form Factor
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Firewire (6pin)
  • 1 x Line Out
  • 1 x Mic In
  • 6 x USB 2.0
Drive Bays
  • 1 x 3.5" External
  • 3 x 3.5" Internal
  • 7 x 5.25" External
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 1 x 80mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included) W
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black/ Silver
Chassis Contruction Materials Aluminium
Dimensions L584 x W227 x H536 mm (WxHxD mm)
Weight
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

Additional Notes:
1 year warranty, return to Scan subject to manufacturer's warranty.

This Warranty does not cover any damage due to accident, misuse, abuse or negligence.
